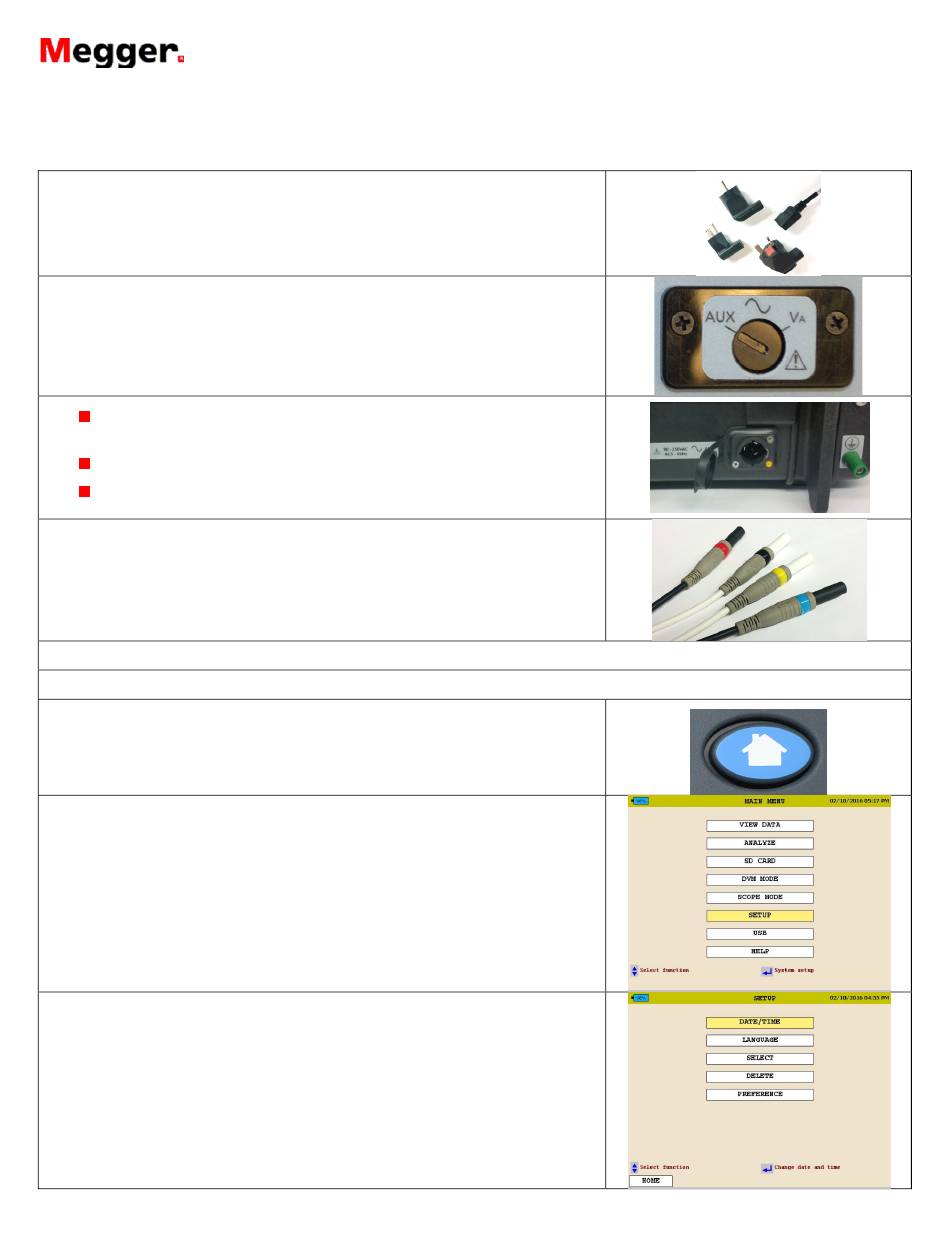

Setting up the Analyzer
STEP 1
Configure the Power Cord: Plug the proper AC adapter for your region into
the power cord.
STEP 2
Charge the Analyzer: Set the AUX / VA switch on the MPQ 2000 Analyzer to
the AUX position.
(Set this switch BEFORE applying power to the analyzer)
Plug the auxiliary power cable into the power jack on the side of the
analyzer.
Insert the cable and turn it to the right until it clicks.
Now plug cable into an AC outlet and allow the unit to charge for at
least 2 hours.
STEP 3
Set up the Voltage leads: The voltage leads for the MPQ 2000 come with
color bands to identify them. Place the proper color bands on the voltage
leads so they match the color code of your region.
STEP 4 Customizing the MPQ Analyzer
Set up the Date and Time
Main Menu
Press the MENU button to go to the Main Menu.
Select SETUP
Select DATE / TIME
MPQ2000

GETTING STARTED
