Blumfeldt Titus Bedienungsanleitung Seite 18

EN
18

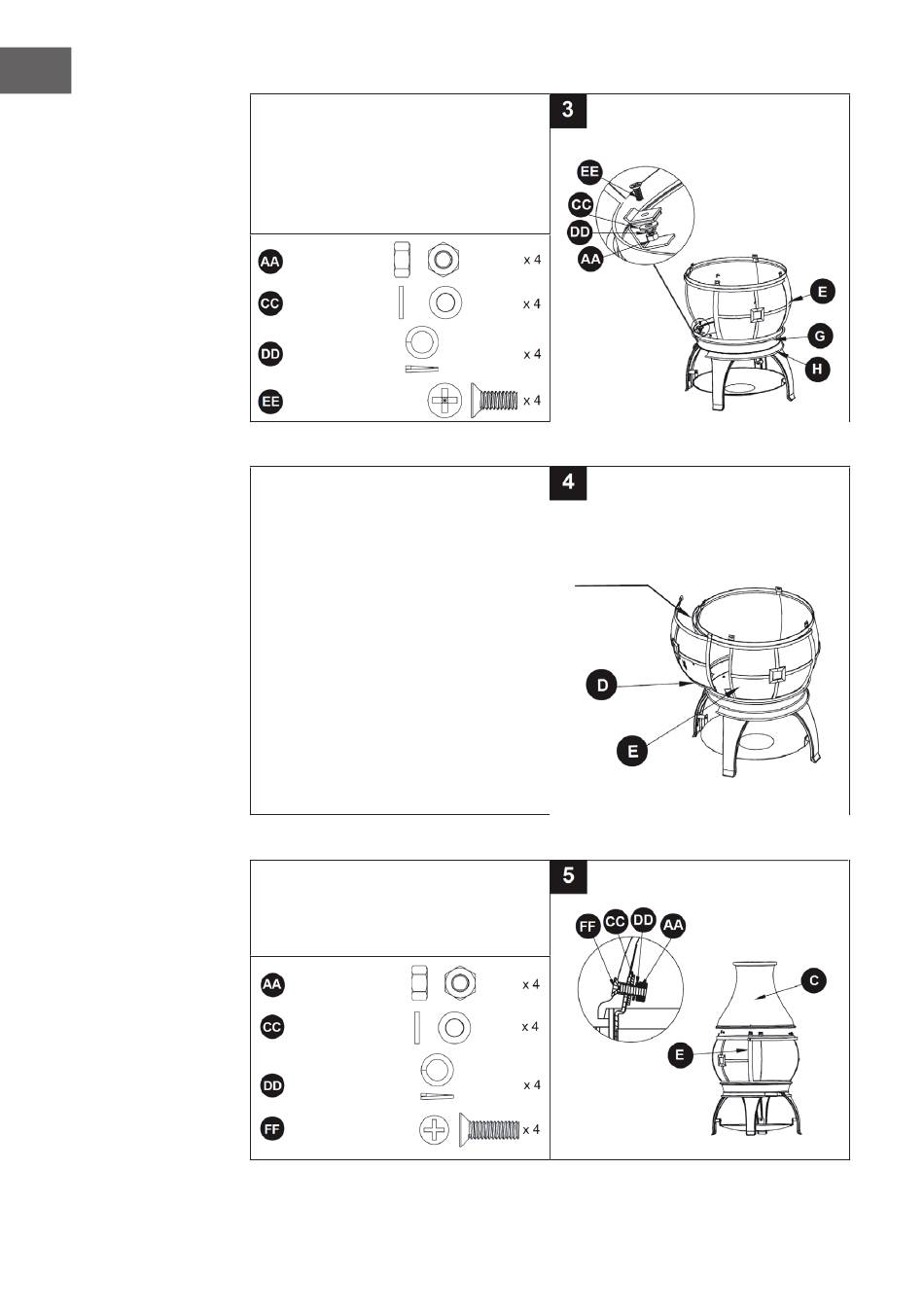

Align the door of screen assembly (E) and
gap of lower stove bowl (H). Attach the
smaller end of screen assembly (E) onto
upper stove assembly (G) with washers
(CC), spring washers (DD), nuts (AA), and
M6 x 15 mm flat bolts (EE).
Nut
Washer
Spring washer
Screw M6*15
Hang the sliding door assembly (D) onto
support bar of screen assembly (E).
Attach chimney body (C) on the top of
screen assembly (E) with washers (CC),
spring washers (DD), M6 x 20 mm flat bolts
(FF) and nuts (AA).
Nut
Washer
Spring washer
Screw M6*15
Support bar
