This radio-controlled wall switch has been designed to wireless circuit switch ON and OFF. It is suitable for installation in flush-mount junction boxes. The device is compatible
with ORNO Smart Home based on TUYA engine, which supports Google and Alexa smart home solutions. This system is compatible with ORNO wireless sockets and
remote-control units: OR-GB-417, OR-GB-418, OR-GB-420, OR-GB-438, OR-GB-439, OR-GB-440, OR-GB-429, OR-GB-441. In order to remotely operate the switch,
a remote-control unit (OR-SH-1752) or surface-mounted switch (OR-SH-1750, OR-SH-1751) from ORNO Smart Home is required. It is possible to control the paired lighting
equipment via iPhone, iPad or other Android / iOS operated devices if you use ORNO Smart Home main control socket (OR-SH-1731).
1) Working range in the open area: 30m.
2) Learning system – automatic login of auxiliary equipment.
3) The switch is suitable for indoor use and it is ready for installation in flush-mount junction boxes. It can also replace a standard wall switch.
1) Before any activities on the product switch off the power.
2) Place the device on the desired position and then arrange the wiring as per the scheme
on the right. Tighten the device with the use of two screws (not included).
3) Turn on the main power switch.
fig.1
fig. 3
fig. 4
fig. 5
Press and hold for about 6 seconds the pairing button of the receiver (wall switch) and
release it. The LED diode will flash. Then press the OFF button of the remote-control
unit. The LED indicator will light up and then turn off when you release the button.
INSTALLATION
LOGOUT
Max. transmitter power:
Dimensions of socket:
Dimensions of mounting hole:
DESCRIPTION AND USE
GENERAL REMARKS
L (IN) – live wire (input)
(L OUT) – live wire (output)
N (IN) – neutral wire (input)
N (OUT) – neutral wire (output)
External button input
LOGIN
Press and hold for about 3 seconds (but less than 6 seconds) the pairing
mode of the wall switch to enter the pairing mode. The LED diode of the
switch will flash. Then press any of the ON buttons (A,B,C,D) on the left
side of the remote control. The LED diode of the switch will be constantly
on. The receiver has been correctly logged in.
OPERATION
After successful pairing, a simple press on the pairing button of the wall
switch will activate both: the light connected to the receiver and the LED
diode of the switch. If you press that button again, the light and LED diode
will be switched off.
The remote-control unit has 4 rows of ON/OFF buttons to pair. When the
receiver (wall switch) is in a pairing mode, press any ON button to pair it.
After successful pairing, this row of buttons is able to switch ON/OFF the
connected device.
The housing of the appliance should be wiped with a soft, dry cloth. Do not
use sharp tools (screwdrivers, metal brushes, etc.). Disconnect from power
source before cleaning. Do not use carboxyl detergents, petrol, alcohol etc.
fig. 6
TECHNICAL DATA
Power source:
AC230V, 50Hz,
Frequency:
433MHz
Max load:
400W
<10mW
Protection level:
IP20
Range in open air:
max. 30m
52x48x15mm
Ø60mm
3

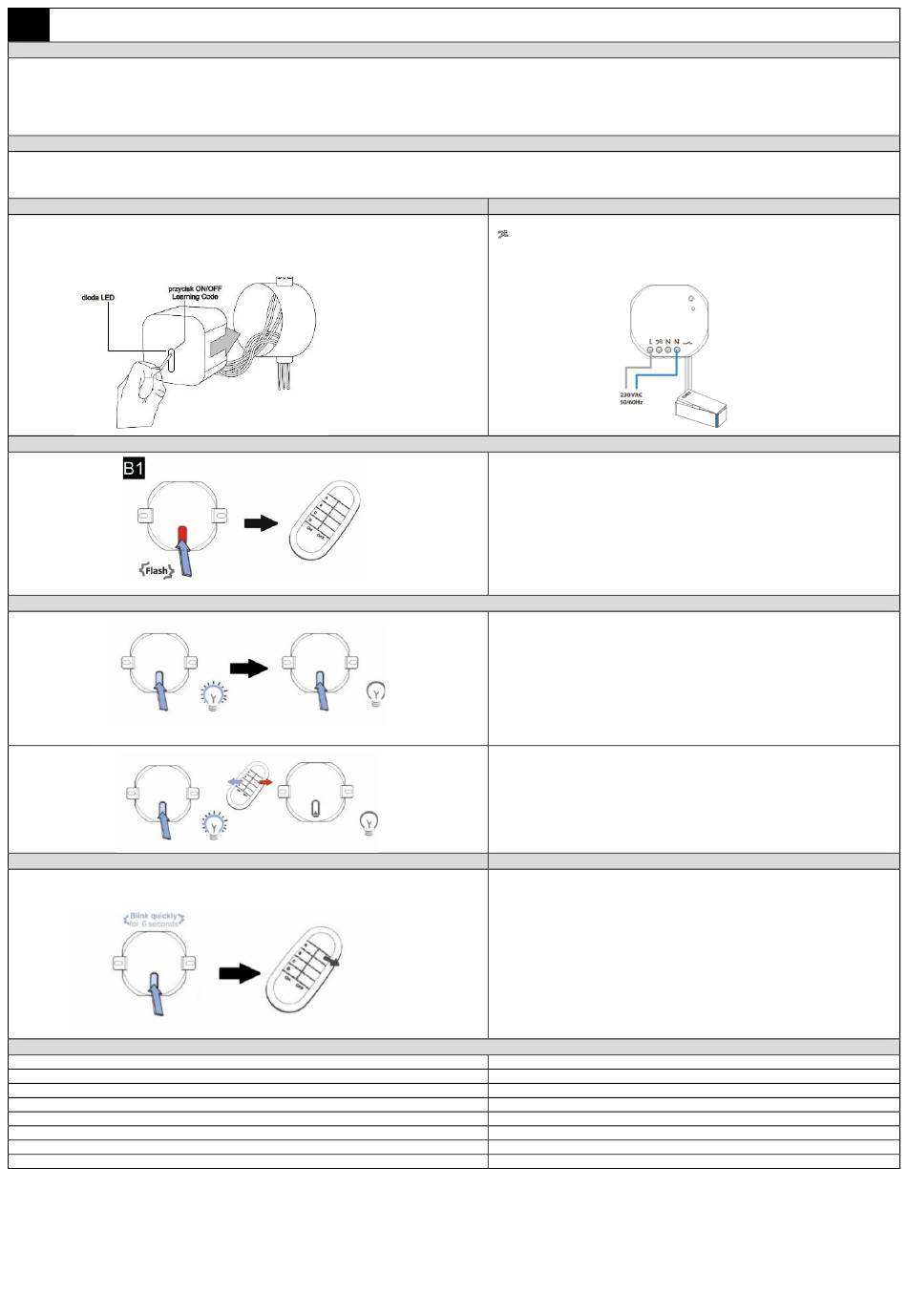

Installation and service manual
WIRING SCHEME
fig. 2
MAINTENANCE AND CLEANING
