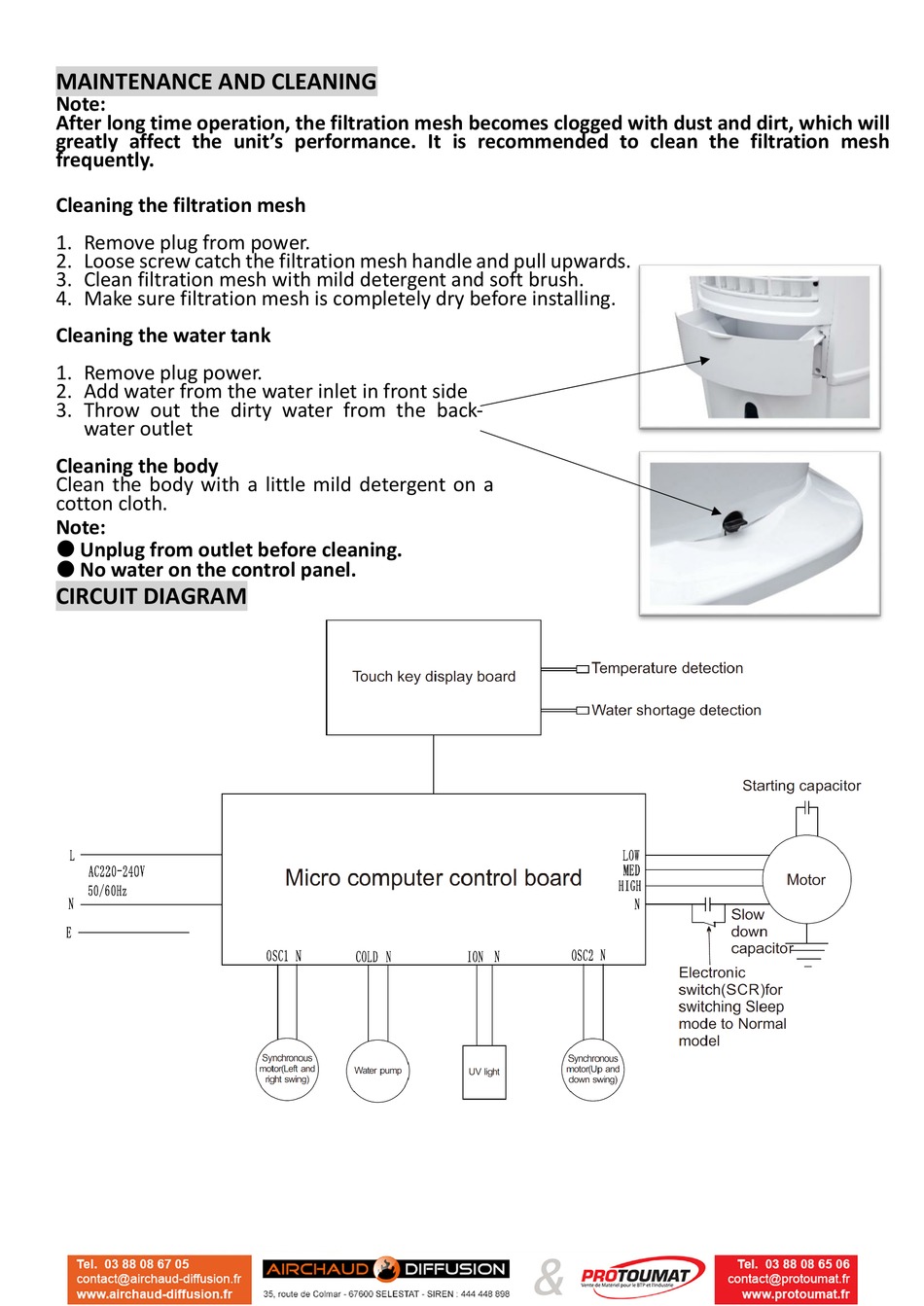

MAINTENANCE AND CLEANING

Note:
After long time operation, the filtration mesh becomes clogged with dust and dirt, which will
greatly affect the unit's performance. It is recommended to clean the filtration mesh
frequently.
Cleaning the filtration mesh
1. Remove plug from power.
2. Loose screw catch the filtration mesh handle and pull upwards.
3. Clean filtration mesh with mild detergent and soft brush.
4. Make sure filtration mesh is completely dry before installing.
Cleaning the water tank
1. Remove plug power.
2. Add water from the water inlet in front side
3. Throw out the dirty water from the back-
water outlet
Cleaning the body
Clean the body with a little mild detergent on a
cotton cloth.
Note:
 Unplug from outlet before cleaning.
 No water on the control panel.

CIRCUIT DIAGRAM
