INSTRUCTION
982756.002
Make sure that the mains voltage is switched off when making any connections.
Use 0.3 - 0.75 mm stranded conductor electrical wires. Strip the wire 8 - 9 mm from the end.
When using flexible cables, ferrules must be used.
Insert the wires to the corresponding holes and tighten the connector screw.
Press the buttons on top of the dimmer case and insert the wires into the corresponding holes.
The polarity of DA and DA does not matter.
If you install the sensor unit in a warm environment (i.e. inside a luminaire or in a ceiling outlet -
box above a luminaire), make sure that the ambient temperature does not exceed the
specified maximum value.
DALI ECG
!
A connecting higher voltages than DALI voltage leads to the destruction of the device.
Note:
Operation with 24 V / 110 V / 230 V is generally not permitted!
2021-01-29
Installation
2

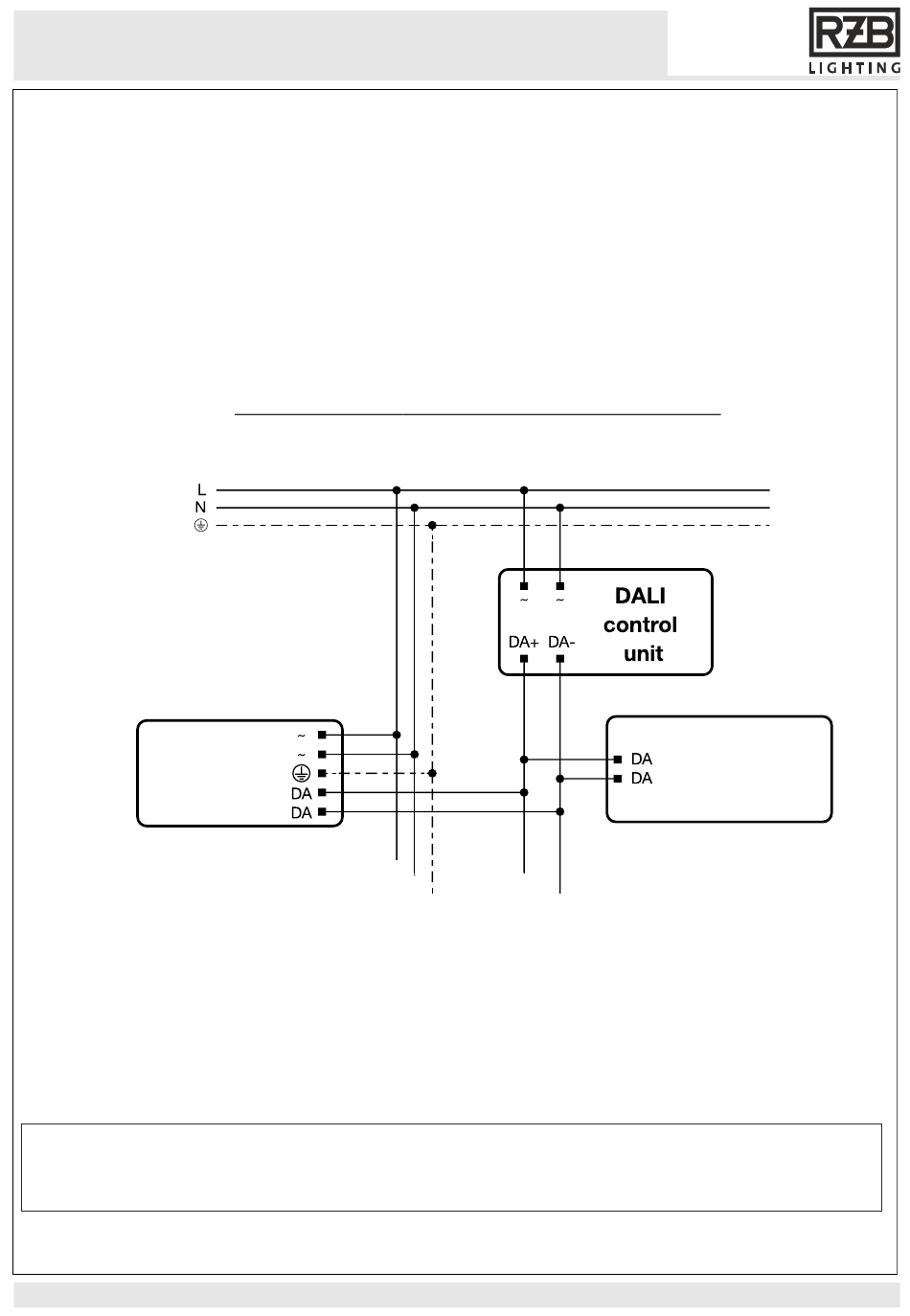

Wiring-diagram DALI Sensor LS/PD LI UF G2
www.rzb.de
DALI Sensor
LS/PD LI UF G2
5
