Cutting Elbows (Saw Position 2); Cutting Tubes Or Elbows In A Cramped Workplace; Altering The Swivel Radius - ITW Orbitalum PS 4.5 Plus Originalbetriebsanleitung Und Ersatzteilliste

eNGLISH
Operation
9.2

cutting elbows (saw position 2)

Further workflows remain the same as in chap. 9.1, p. 58.
9.3

Cutting tubes or elbows in a cramped workplace

9.3.1

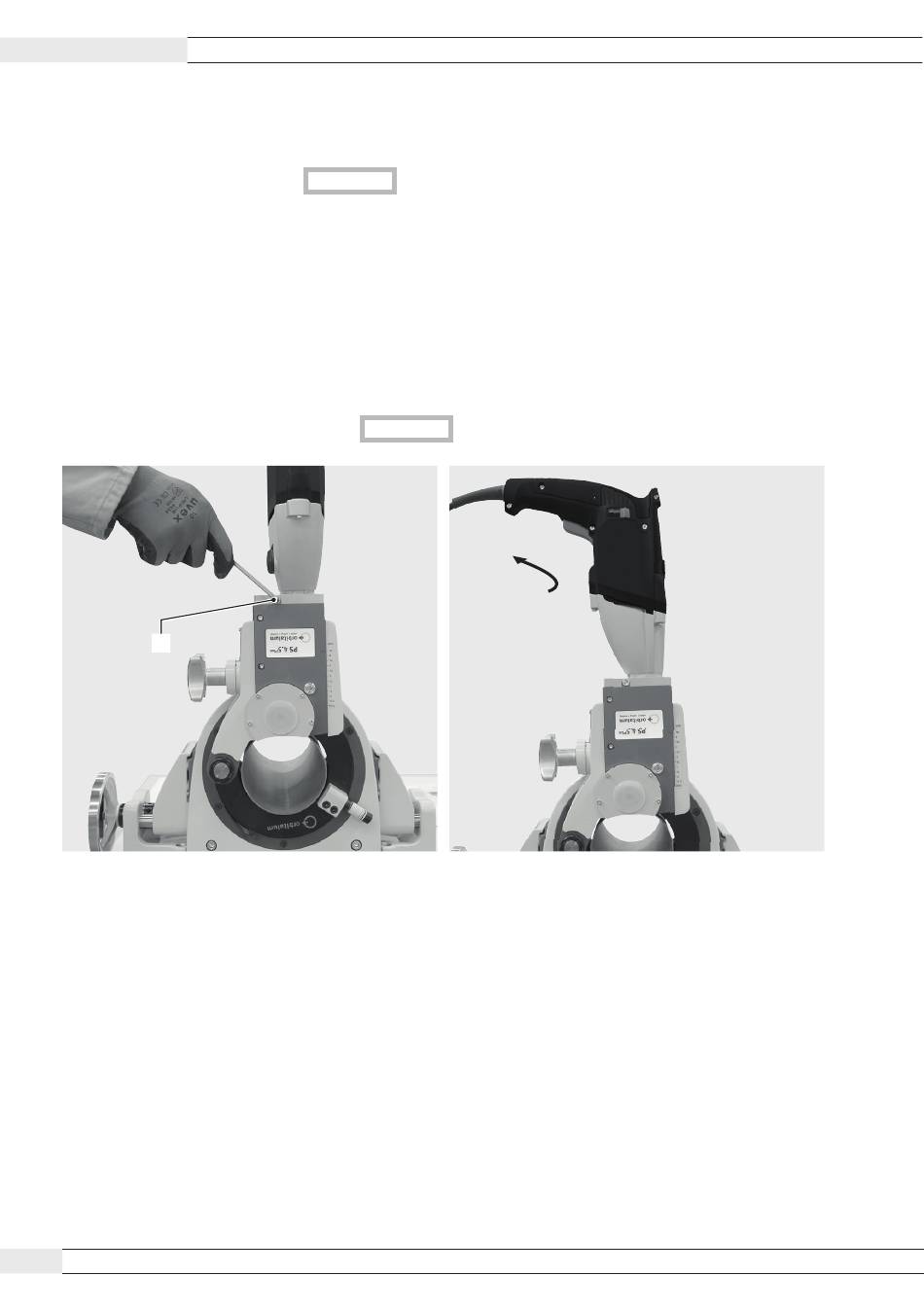

Altering the swivel radius

1. Loosen the screw (1) using a Allen key (SW 5).
2. The motor may now be turned by 90°.
3. Tighten the screw (1).
The working procedure is the same as described in chap. 9.1, p. 58.
