Comet Z-Wave
™
EN
Quick Start Guide
Customer Service:
Eurotronic Technology GmbH
Südweg 1
36396 Steinau-Ulmbach
Telefon: +49 (0) 6667 91847-0
E-Mail: support@eurotronic.org
Internet: www.eurotronic.org
Z-WAVE GATEWAY IS REQUIRED FOR COMMISSIONING.
NOTE:
For a more detailed installation and operation guide please visit:
https:/ /eurotronic.org/service/downloads/
DELIVERY SCOPE
1 Comet Z-Wave energy-saving radiator
2 LR6/Mignon/AA batteries
WARNING AND SAFTEY INSRUCTIONS
Safety Information: Comet Z-Wave is intended for indoor use. Operate Comet Z-Wave only
as described in the user manual. Comet Z-Wave should only be used in a dry and dust-free
place out of direct sunlight. Do not continue to operate the device if it shows obvious damage.
Comet Z-Wave may not be rebuilt, modified or opened.
Warning instructions : Never recharge, short-circuit or disassemble batteries - risk of ex-
plosion! Remove exhausted batteries from the device immediately. Protect batteries from
overheating - increased risk of leakage! Do not use used and new batteries together. If
necessary, clean batteries and device contacts before inserting. Keep batteries away from
children. Avoid contact with skin, eyes and mucous membranes. If you come into contact with
battery acid, immediately rinse the affected areas with plenty of clear water and consult a
doctor immediately.
NOTE: In order to be able to use the full range of functions of the Comet Z-Wave Plus, a
security enabled Z-Wave controller is required.

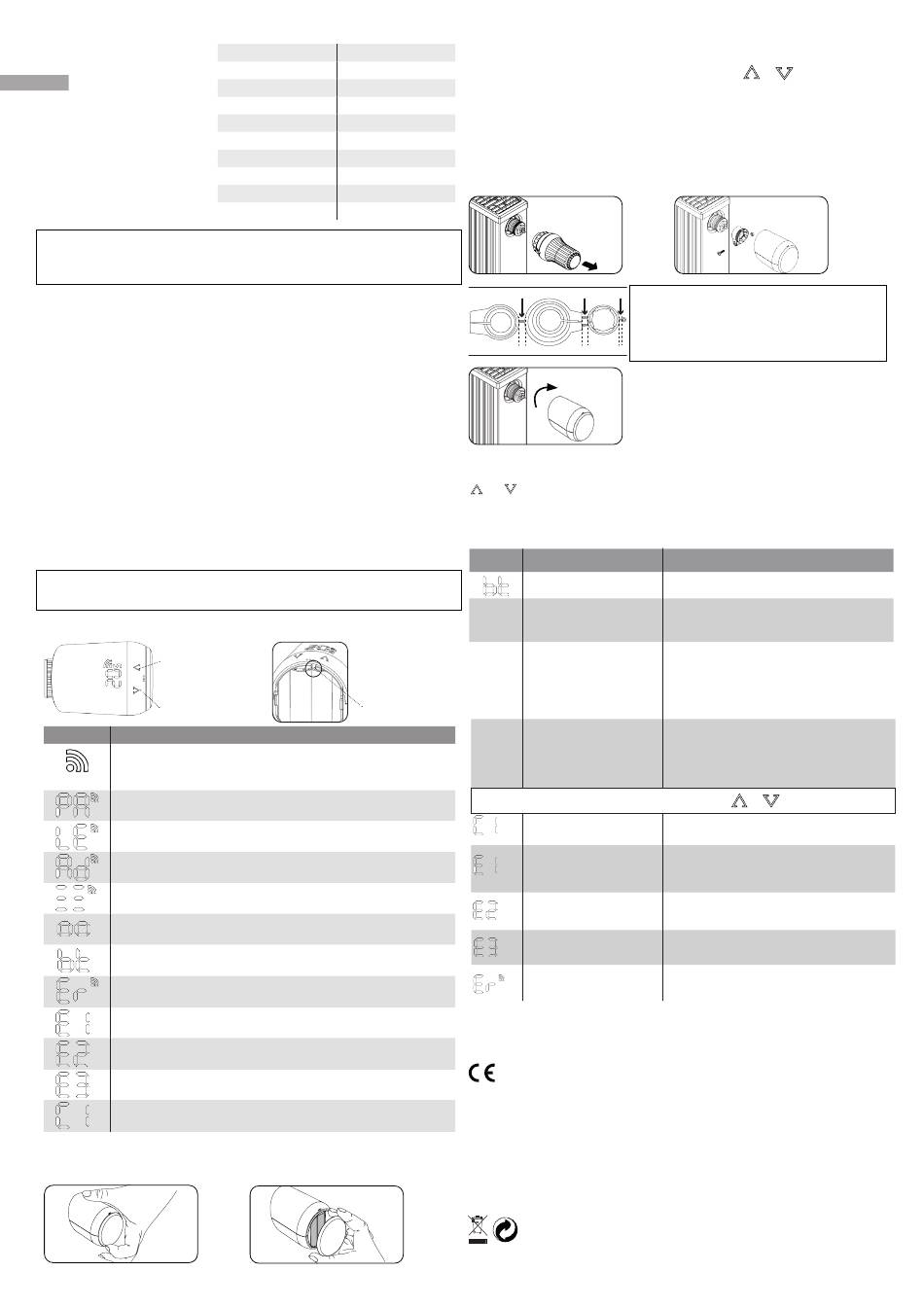

CONTROL AND DISPLAY ELEMENTS
increase temperature
decrease temperature
LED Display Meaning
Radio icon: Informs about radio connection and adding operations.
lights up = connected to server
not lit = no connection to the server
Pairing mode (Inclusion) active.
Delete mode (Exclusion) active.
Adaptation must get started.
Animation: Lights up while an adaptation is in progress.
Animation: Lights up when the key lock is activated/deactivated.
Lights up when the battery level is less than 15%.
Exclusion operation failed.
No valve movement possible
No valve detected
Closing point not detected
Inclusion operation failed.
START OPERATING
1. INSERT BATTERIES
Article Comet Z-Wave
EAN 4260012712421
Article number 700226
Supply voltage 2 x 1,5V LR6/Mignon/AA
Connection M30 x 1,5mm
Method of operation Typ 1
Dimension 62 x 68 x 83 mm
Weight 230 g (incl. batteries)
Degree of protection IP20
Degree of pollution 2
3 Adapter (Danfoss RA, RAV, RAVL)
1 Quick-Start-Guide
Reset / Pairing mode
Button
2. ADDING TO A Z-WAVE NETWORK
Put your primary Z-Wave controller in inclusion mode. Press
add mode. If Comet Z-Wave was added successfully, the LED display will show the received
Node ID.
3. MOUNTING ON RADIATOR
After adding (inclusion), the LED display shows an animation and the thermostat moves to
the mounting position. Then the LED display will show "Ad".
1. Unscrew the old thermostatic head completely, loosen the fastening and pull it off the valve
2. If necessary, select a suitable adapter and mount it on the valve.
NOTE: Completely remove the connecting pieces of the
plastic adapter before you use one of the enclosed adap-
ters! For information about each adapter, see:
www.eurotronic.org/Service/FAQ.
3. Screw the thermostat onto the valve or adapter by
turning the union nut clockwise.
4. ADAPTATION
and - Press and hold both buttons together for 3 seconds to start adaption.
Adaptation is carried out.
TROUBLESHOOTING
Reason
Problem
Battery almost empty
Radiator Boiler water temperature OK?
does not – Valve does not open after the
get warm summer heating break-cold?
Radiator Valve does not close comple-
does not tely. The closing point of your
get cool valve seal may have shifted.
Pressure Due to an endless thread, the
piece falls pressure piece on the undersi-
out de can fall out if the controller
has not been attached to the
valve.
C1, Er,
The error display can be cleared by pressing the
Er1-3
Inclusion operation failed.
Adaptation is not possible.
Comet WiFi is not (correctly)
mounted on the radiator
Valve stroke too short or
battery power too low.
Valve movement not possible.
Exclusion failed
LEGAL INFORMATION
DECLARATION OF CONFORMITY:
Eurotronic Technology GmbH hereby declares that the Comet Z-Wave radiator thermostat
complies with all applicable European Economic Area regulations of Directive 2014/53/
EU. The full text of the EU Declaration of Conformity is available at the following internet address:
https:/ /eurotronic.org/service/downloads.
Z-Wave and Z-Wave Plus are registered trademarks of Sigma Designs.
WARRANTY
The guarantee period is 24 months and begins on the day of purchase. Please keep the receipt as
proof of purchase. For other important warranty information, see:
ENVIRONMENT PROTECTION:
Information on environmental protection and disposal can be found in the
®
detailed operating instructions: www.eurotronic.org/service/downloads
Subject to technical changes at any time. Compatibility data without guarantee.
or button, to start
Solution
Change batteries
Correct the boiler water temperature.
Disassemble the Comet Zigbee. Move the valve
tappet back and forth several times by hand/tool.
Disassemble the Comet Zigbee.
Move the valve tappet several times by hand - an
adaptation may not be possible because your valve
may be calcified or the seal is no longer performing
its function.
Remove batteries from the device.
Insert pressure piece.
insert batteries.
or key
Zigbee Controller not in inclusion mode or
out of reach.
Mount Comet WiFi correctly on the radiator.
If necessary, use the correct adapter.
Open and close the valve tappet by hand several
times or insert new batteries.
Make sure that valve pin is freely movable.
Is the device and the gateway as well, connected
to network?
www.eurotronic.org.
