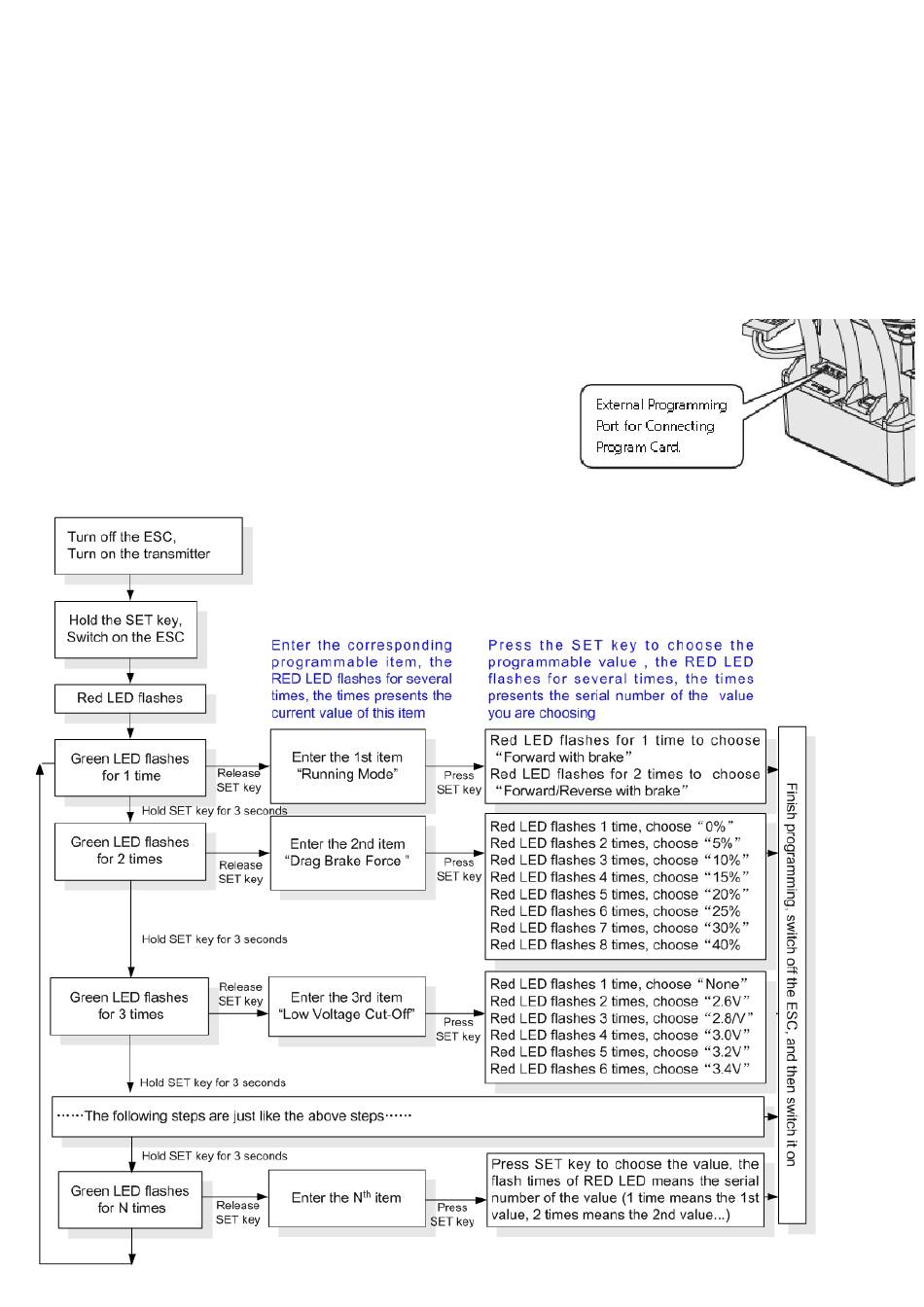

Program the ESC with the SET button on the ESC
• For easier detection, the motor beeps simultaneously when the LED is flashing.
• If "N" (the number) is equal to or greater than 5, we use a long flash to represent "5". For example, the LED flashes
a long flash (and the engine beeps with a long beep at the same time) indicating that you are in the 5th program
level
• If the LED flashes a long flash and a short flash (and the engine emits a long beep and a short beep at the same
time), you are in the 6th program point. A long flash and two short flashes (one long beep and two short beeps)
indicate that you are in the 7th program, and so on.
Program the ESC with the LED program box
The Program Card is optional equipment which needs to be purchased separately.
It has 3 digital LEDs to display the programmable items' number and the options' number.
(Please refer to the user manual of the program card for detail info). The
user-friendly interface makes the controller programming easy and fast.
Before programming, you must connect your controller to the
programming card via a white / red / black cable with two JR plugs.
Connect the cable 1 x to the controller and the other end of the "- / + /
S" marked port on the programming card and then turn on the controller.
All programmable values are displayed a few seconds later. You can
change the positions after selection using the "ITEM" and "VALUE"
buttons on the program card. Press the "OK" button to save all new
settings to your controller.
