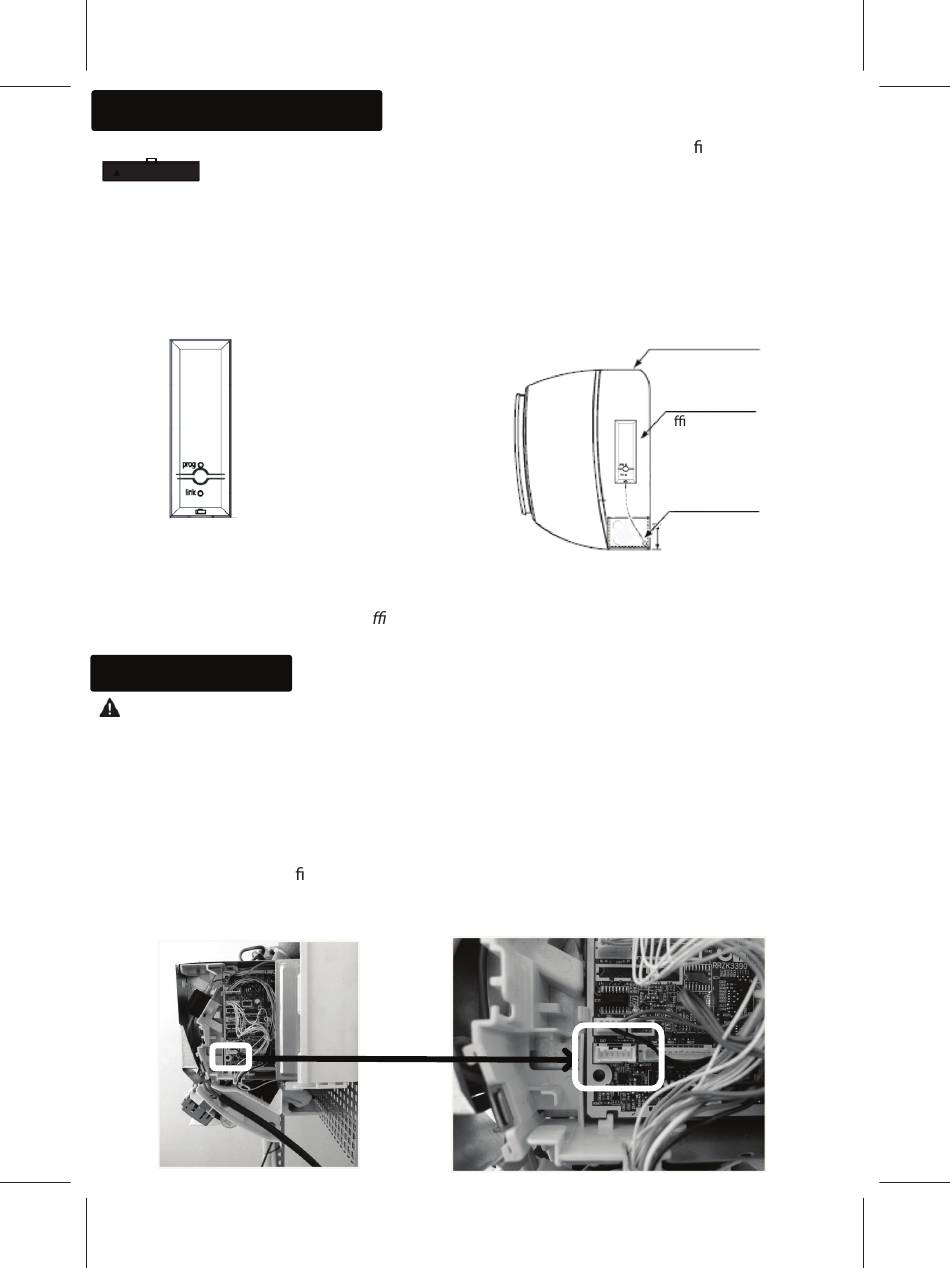

Installation and configuration

The interface is connected to the air conditioning unit via the connector identi ed by the
logo located on the lower part of the interface. Only use the cable supplied with the logo located on the lower part of the interface. Only use the cable supplied with the
interface.
Do not install the interface near a metal surface and/or adjacent to electrical cables.
1) The interface must be installed on the wall or on the air conditioning unit, with double-sided
adhesive tape.
2) Install the interface vertically (connector at the bottom) as shown below.
Lower section
i. Make sure the surface is clean before installation.
ii. Make sure that the cover on the indoor unit pipework can be removed for maintenance on the
equipment, and that the interface is a xed to the side of the air conditioning unit using double-sided
adhesive tape.

Connecting the cable

Warning
- Do not install the interface near a metal surface and/or adjacent to electrical cables.
- Isolate the mains power supply if the indoor unit is powered from an outdoor unit.
1) Remove the front of the air conditioning unit and the cover of the electrics box.
2) The cable supplied with the interface must be connected to the electronic board inside the
electrics box. The connector is usually marked CN7 or CN1101. Refer to the air conditioning system
installation manual to con rm the connector number.
3) Close the cover of the electrics box, taking care not to trap the cable.
4) Close the front of the indoor unit.
air conditioning unit
interface
a x the interface on
the side of the air
conditioning unit
opening
40 mm
