Step 2

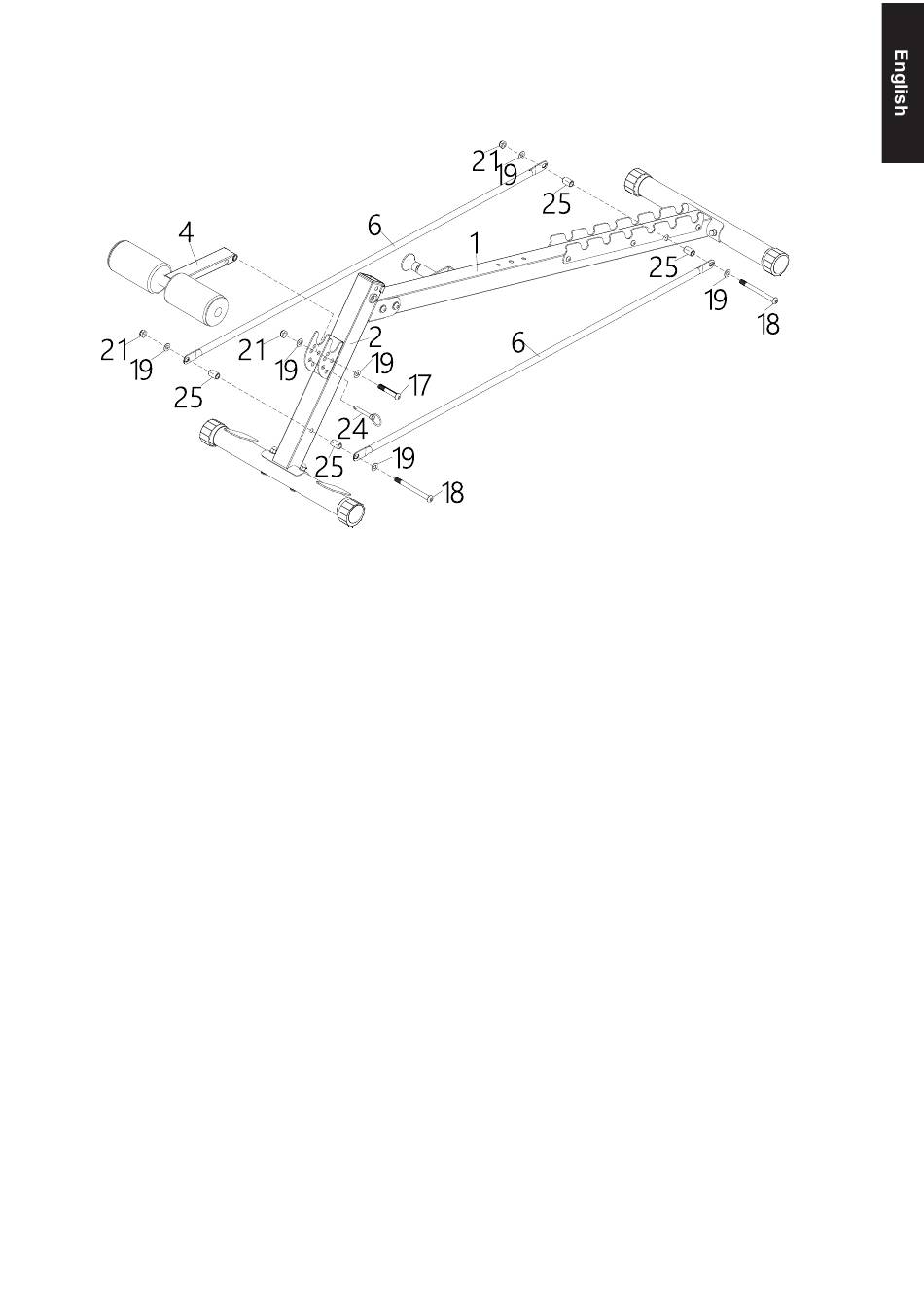

a. Use hex screw (18), rotary knob (26), washer (19) and lock nuts (21) as shown to connect ends
of connecting rods (6) to main frame (1) and front frame (2).
b. If the holes do not line up during assembly, raise the connection point between the main frame
(1) and front frame (2) to adjust.
c. Tighten screws. Then tighten all screws installed in step 1 that were not tightened at that time.
d. Use hex screw (17), washer (19) and lock nuts (21) to attach leg lever (4) to front frame (2) and
insert lock pin with ring (24).
7
