EN
INSTRUCTION
6.INSTALLATION
6.1 Installed in Rearward Facing Position with ISOFIX
and support leg (40-105cm)
Put the ISOFIX insert guide into the two ISOFIX
attachment points of your vehicle
If you don't have ISOFIX insert guide, please
Ignore this step.
NOTE:The ISOFIX attachment points are located
between the surface and the backrest of the vehicle seat.

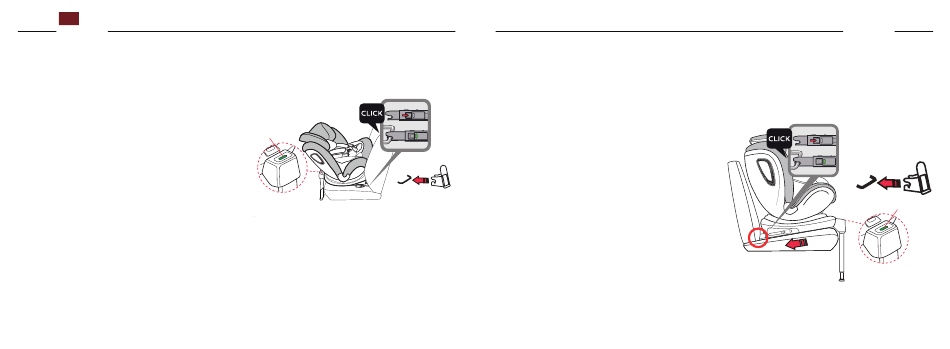

Press the ISOFIX button to pull out the two locking
arms from the base bottom. Insert the locking arms into
ISOFIX attachment points until you hear an audible CLICK
which indicates they are fully engaged. And on both
sides of the locking arms button turn into green safety color.
Pull out the support leg to adjust it is in full contact with
the ground of vehicle. Make sure the display window of
support leg turns into green color. (See 5.8)
17
19
Green

6.2 Installed in Forward Facing Position with ISOFIX

and support leg (76-105cm)
IMPORTANT: Do not use forward facing before the
child's age exceeds 15 months.
Put the ISOFIX insert guide into the two ISOFIX
attachment points of your vehicle.
If you don't have ISOFIX insert guide, please
ignore this step.
NOTE: The ISOFIX attachment points are located
between the surface and the backrest of the
vehicle seat.
Press the ISOFIX button to pull out the two locking
arms from the base bottom. Insert the locking arms
into ISOFIX attachment points until you hear an
audible CLICK which indicates they are fully engaged.
And on both sides of the locking arm's button turn into
green satety color.
40-105cm
Pull out the support leg to adjust it is in full contact
with the ground of vehicle. Make sure the display
window of support leg turns into green color.
(See 5.8)
Green
20
18
