INSTALLATION STEPS
INSTALL HANDRAILS

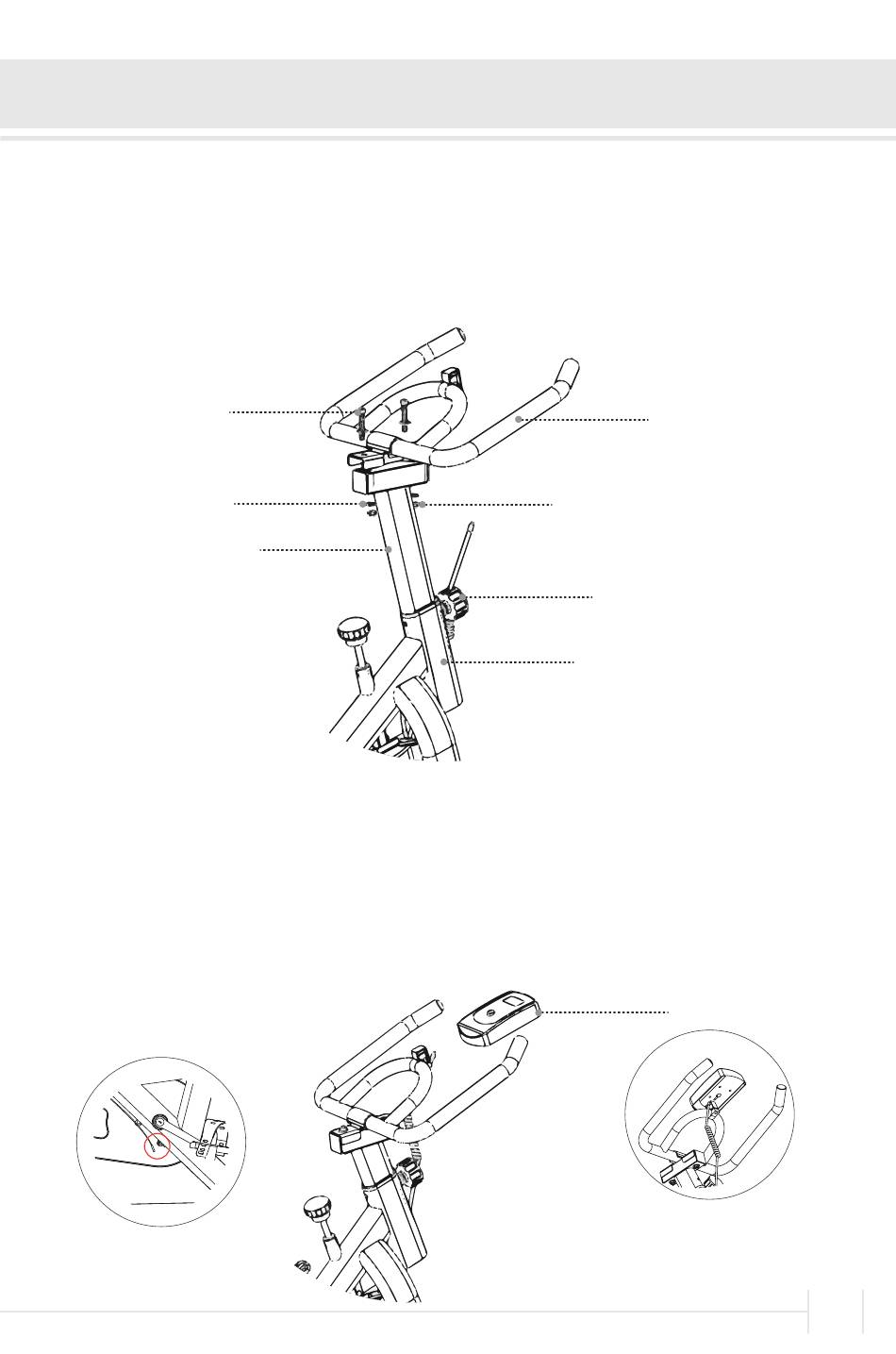

Fasten the handlebar riser (l8) post in the frame (2) with ball pin (3), put the
handlebar (l6) on the handlebar riser. Fasten the handlebar with bolts
(24),washers (23) and lock nuts (25). Adjust the ball pin to the suitable place.
24
16
23 25
18
3
2
INSTALL THE METER
There is a sliding-groove on the back of monitor (17), when you install the
monitor, just slide the monitor to the monitor holder of handlebar. Then
connect then sensor line with the line of monitor.
17
Sensor connection
