Description Features
The ACV RC35 is a programmable • Ergonomic user interface featuring an 'OK-button'.
room thermostat designed to
• Large LCD (Liquid Crystal Display) Screen.
control your heating system
• 7-day heating program to match your lifestyle,
efficiently, providing comfortable
whilst maximising energy savings.
temperatures when you are at
home and energy savings when
• 6 independent temperature levels
you are away. The following
per day (from 5°C to 35°C).
instructions explain how to
• Holiday button saves energy by letting you
set up, program and operate
reduce the temperature for 1 to 99 days.
your ACV RC35 Programmable
• Built-in Memory holds the user program indefinitely.
Room Thermostat.

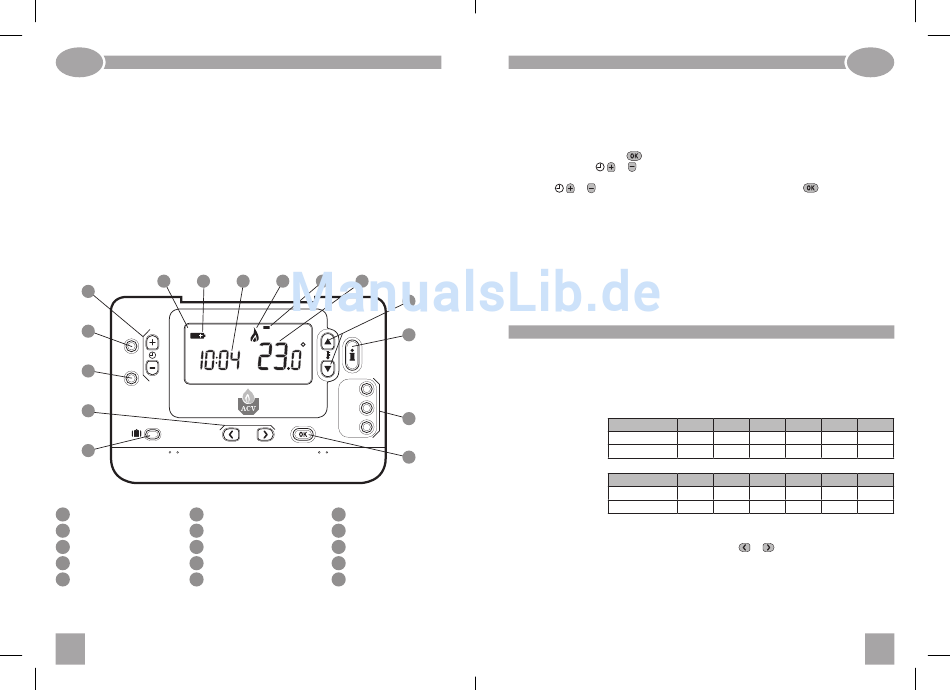

Controls Layout
1 2
15
1 2 3
14
DAY
COPY
DAY
13
12
PROGRAM
11
1 LCD Screen 6 Temperature Display
2 7
Battery Low Indicator Temperature Change Buttons
3 8
Time Display Temperature Enquiry Button
4 Heating Required Indicator 9 Operating Mode Buttons
5 Day Indicator 10 Green OK Button
12
RC35 - USER GUIDE
3 4 5 6
7
4 5 6 7
8
OFFMANAUTO
AUTO
MAN
9
OFF
1..6
10
11 Holiday Function Button
12
Program Buttons
13
Copy Day Button
14 Day Select Button
15 Time Change Buttons
SETTING-UP THE RC35
This section shows you how to setup and run the thermostat in 2 simple steps:
STEP 1: Setting the Day and Time
To set the Day and Time:
a. Press the DAY button once and the 'day indicator' will begin to flash.
b. Press the DAY button until the correct day is reached (Day 1 =
Monday). Press the green button to confirm.
d. Press either of the or buttons once to enter time setting mode. The LCD screen
flashes the time digits (when the unit is powered for the first time the display shows 12:00).
e. Use the or buttons to set the correct time then press the green
confirm. Each press of the buttons will change the time by one minute and holding
them down will change the time slowly at first and get progressively quicker.
Note: If this mode is entered accidentally then press the AUTO, MAN or OFF buttons to exit.
STEP 2: Running the Built-in Heating Program
The thermostat is now ready for operation. Press the AUTO button and the built-
in heating program will start running. Note: The built-in heating program has been
designed to provide normal comfort requirements, but if you want to customise
the settings please see the next section 'Programming the RC35'.
PROGRAMMING THE RC35
The Built-in Heating Program
The built-in heating program has 6 temperature level changes per day that can be set
between 3.00am and 2.50am the following day - allowing you to maintain the evening
temperature after midnight. Each temperature level can be set between 5°C and 35°C,
and adjusted in 0.5°C increments. The factory default program for heating is as follows.
Monday to Friday Period
(Day 1 to 5)
Time 6:30
21°C
Temperature
Saturday & Sunday Period
(Day 6 & 7)
8:00
Time
21°C
Temperature
Reviewing the Heating Program
To review or edit the heating program use the PROGRAM
between the 6 individual programming periods for that day. Use the DAY button to step through
each day of the week, so the complete 7 day heating program can be reviewed or edited.
EN
button to
1 2 3 4 5
8:00 12:00 14:00 18:00 22:30
18°C 21°C 18°C 21°C 16°C
1 2 3 4 5
10:00 12:00 14:00 18:00 23:00
21°C 21°C 21°C 21°C 16°C
or buttons to navigate
6
6
