Rolling screen installation and operation manual
WARNING: It 's absolutely forbidden to install the screen on mobile walls or unstable cables,the brackets must be applied on surfaces that ensure in the time your distance. When
installing the screen use plugs and screws suitable for the screen's weight and for the type of wall or ceiling on which the mount brackets are to be fixed, based on the following criteria
Screen width view area up to inches
MMS2-L1 Overall weight
158.29 lbs
See images on the end pages of this manual
The type of motor installed on the product is identified by a label applied on each product showing the CE logo. When unwrapping the product please check the model type indicated on the label in order to
perform the installation and cable connections correctly. Should the power of the motor be different from that of the supply network of the installation place, please contact an electrician to have a current and
Hz transformer installed.
electric cabling must be conformant with applicable IEC standards. IEC norm EN 60335-1 requires that supply network be
fitted with an omnipolar selector switch with contact opening distance of at least 3 mm. For the screen's control use only
the selector switch provided by manufacturer, or equivalent model. The selector switch must be mounted within sight
distance of the product, at a 1.5 - 1.8 m height from the floor.
Correctly performed, state-of-the-art, norm-compliant electrical connections are important to prevent accidents and to
ensure the screen's optimal and unaltered performance over time. Prior to carrying out any operation on electrical parts
ensure that power supply is disconnected
Somfy 230V 50Hz
MOTOR
EU or UK or US
PLUG
Volt: 230V AC
Frequency: ~Hz50
Power: 90-120-140-160-240W
Torque: 6-10-15-20-30Nm
Motor
Speed: 17-32RpM
characteristics
Duty cycle: S2 4min
Operating T°:
from –20 to +55 °C
Weighted sound pressure level:
LpA ≤ 70 dB(A)
Motor protection class: IP44
Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE
Please verify that you are working with the latest revision of this document before specifying your screen.
Doc: MMS2-L1 Installation Manual rev2 | 26.06.2017|Download at: www.screenresearch.com 2017 AdeoSreen All Rights Reserved.
All manuals and user guides at all-guides.com

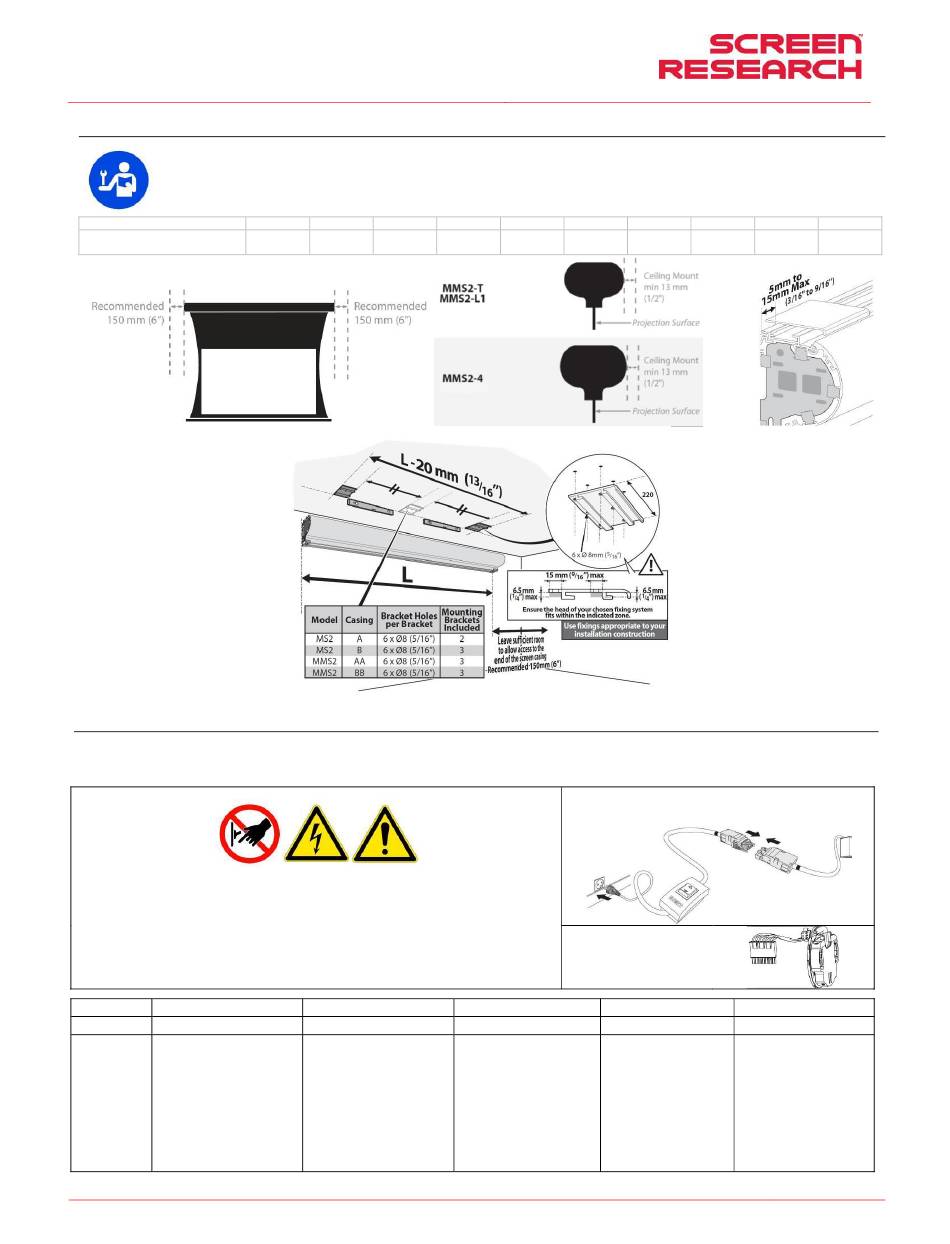

07 INSTALLATION INSTRUCTIONS
80" 90" 96"
72 kg 79 kg 83 kg
173.79 lbs 181.42 lbs
09 MOTOR TYPE IDENTIFICATION –CHARACTERISTICS – ELECTRICAL CONNECTION
ELECTRICAL CONNECTION:
WARNING:
Somfy 120V 60Hz
US
Volt: 120V AC
Frequency: ~Hz60
Power: 80-110-180-210W
Torque: 6-10-15-25Nm
Speed: 14-17-38RpM
Duty cycle: S2 4min
Operating T°:
from –20 to +55 °C
Weighted sound pressure level:
LpA ≤ 70 dB(A)
Motor protection class: IP44
100" 110" 120"
86 kg 93 kg 131 kg
187.55 lbs 202.95 lbs 288.61 lbs
The screens with motorization SOMFY are equipped with cables complete of
the switch for the surface movement and of Plug for connection to the
electricity. The screens and the cables, are included of quick connectors.
The screens with motorization
LUTRON are equipped with quick
connectors for connection to
transformers or management
systems LUTRON
Somfy 100V 50/60Hz
UK
Volt: 100V AC
Frequency: ~Hz50-60
Power: 80-160W
Torque: 10-20Nm Torque: 2.82-6.78 Nm
Speed: 12/14-17/20RpM
Duty cycle: S2 4min
Operating T°:
from –20 to +55 °C
Weighted sound pressure level: Weighted sound pressure level:
LpA ≤ 70 dB(A)
Motor protection class: IP44 Motor protection class: IP44
ENGLISH
130" 140" 150"
141 kg 150 kg 159 kg
309.03 lbs 329.52 lbs 350.07 lbs
Lutron QED Lutron QS
EU or UK or US EU or UK or US
Volt: 24V AC Volt: 24V AC
Frequency: ~Hz50-60 Frequency: ~Hz50-60
Power: 27-37W Power: 24-37W
Torque: 2.82-6.78 Nm
Speed: 25mm/1sec Speed: 25mm/1sec
Duty cycle: S2 4min Duty cycle: S2 4min
Operating T°: Operating T°:
from –20 to +55 °C from –20 to +55 °C
Weighted sound pressure level:
LpA ≤ 70 dB(A) LpA ≤ 70 dB(A)
Motor protection class: IP44
Page 8
160"
169 kg
370.68 lbs
