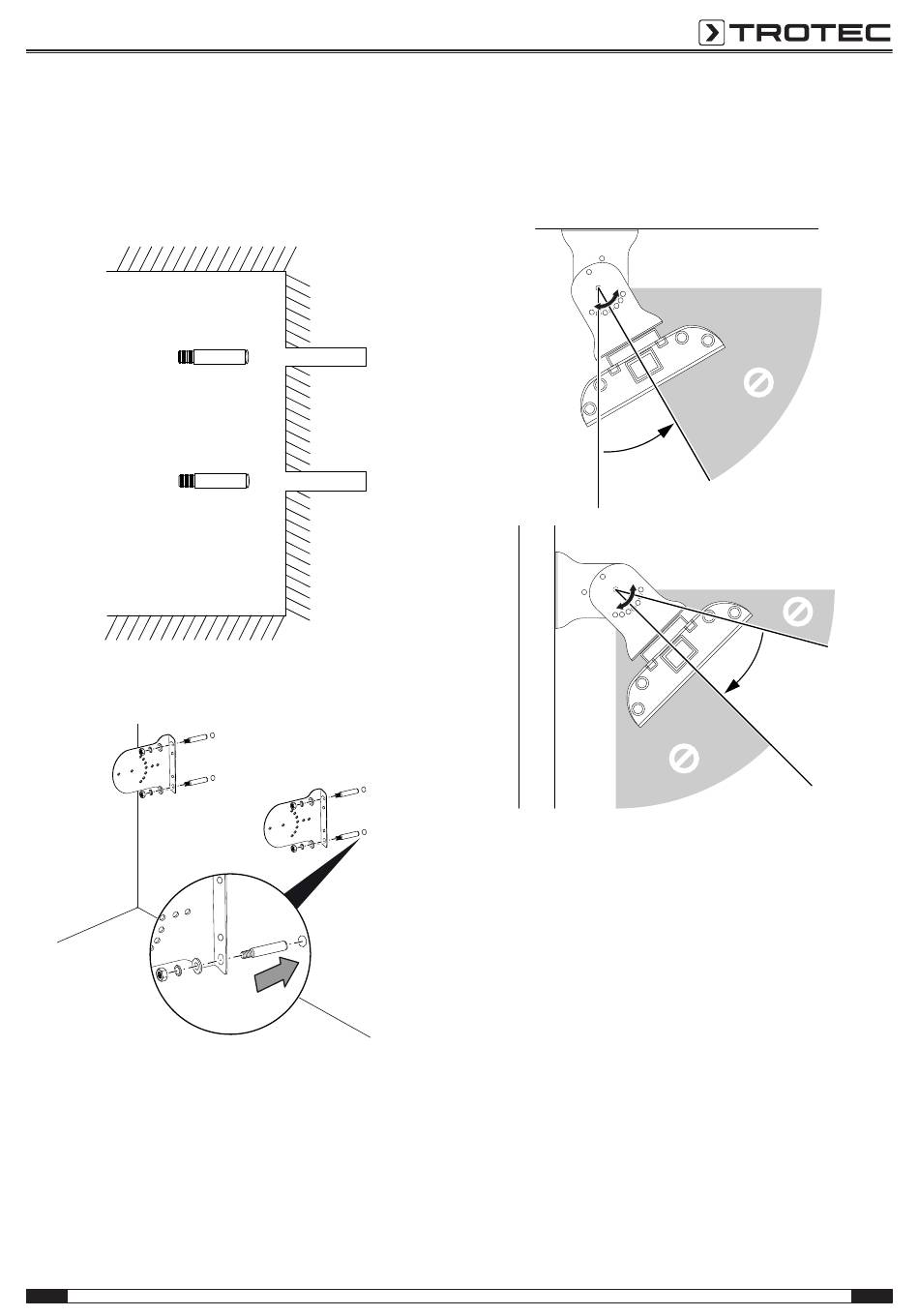

1. Measure the distance between the holders on the device
and use this value for the distance between the drill holes.
2. Mark the drill holes on the wall / ceiling. Please note the
mounting brackets must be fastened vertically.
3. Drill the holes into the wall / ceiling at the marked
positions.
4. Insert suitable wall plugs into the drill holes.
5. Screw the mounting brackets to the wall / ceiling.
6. Check the mounting brackets for tight fit.
EN
7. The device can be installed at an inclination angle
of 0°, 15°, 30° or 45°.
Please note that the inclination angle must be 15°, 30°
or 45° for wall mounting and 0°, 15° or 30° for ceiling
mounting.
