Transport and storage

Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
Before transporting the device, observe the following:
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Do not use the power cable to drag the device.
• Allow the device to cool down sufficiently.
Storage
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• in an upright position where it is protected from dust and
direct sunlight
• with a cover to protect it from invasive dust, if necessary
• Remove batteries from the remote control.
6

Assembly and start-up

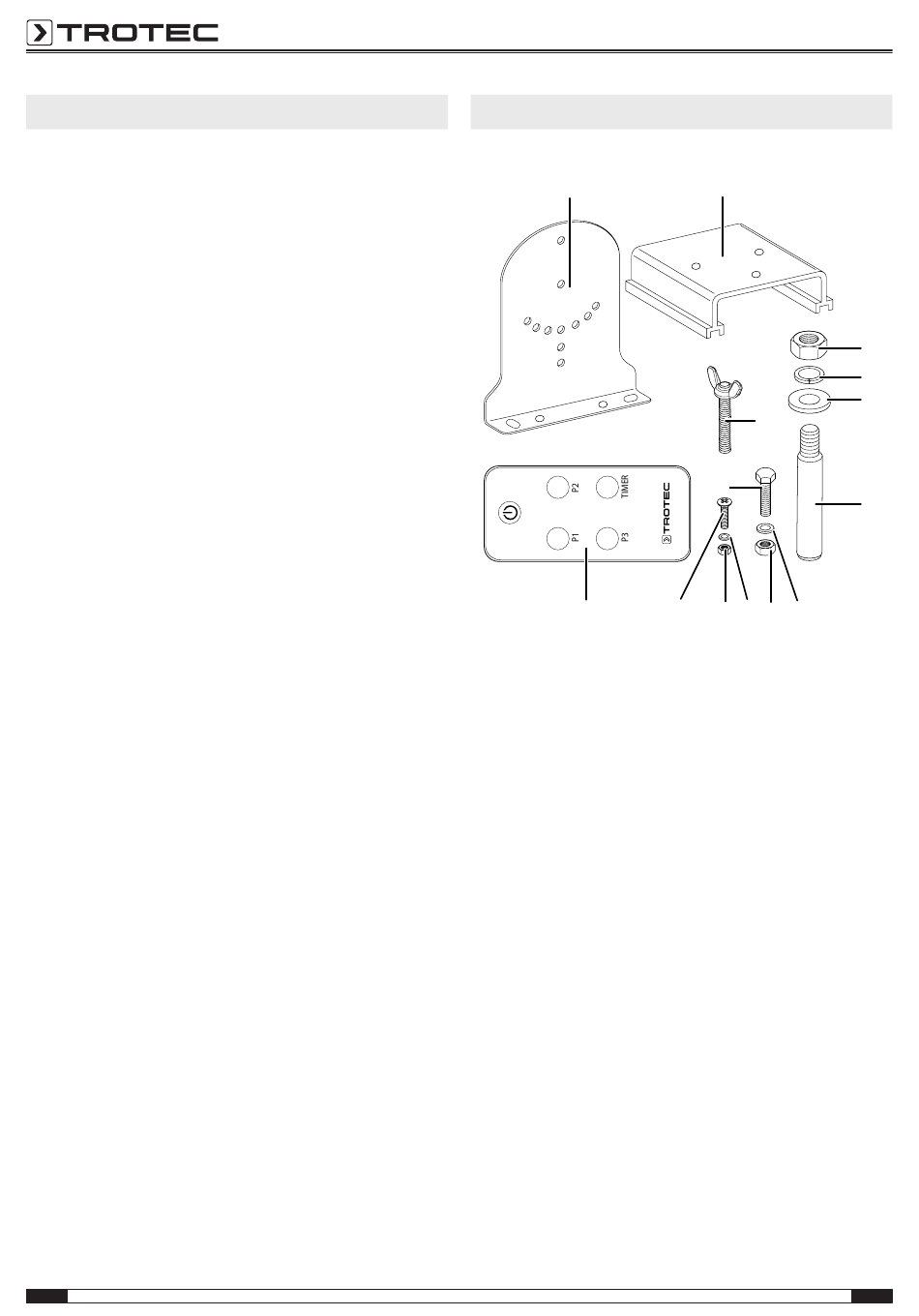

Scope of delivery

• 1 x Device (not pictured)
• 4 x Mounting bracket (6)
• 2 x Device holder (7)
• 4 x Hexagon nut M8 (8)
• 4 x Spring washer Ø 8.1 mm (9)
• 4 x Washer Ø 8.4 mm (10)
• 4 x Threaded steel anchor M8 (11)
• 2 x Wing screw M6 (12)
• 4 x Hexagon screw M6 (13)
• 4 x Spring washer Ø 6.1 mm (14)
• 4 x Hexagon nut M6 (15)
• 4 x Spring washer Ø 4.1 mm (16)
• 4 x Hexagon nut M4 (17)
• 4 x Phillips screw M4 (18)
• 1 x Remote control (4)
• 1 x Manual (not pictured)
infrared radiant heater IRD 1200 / IRD 1800 / IRD 2400 / IRD 3200
7
6
13
4 18 17
8
9
10
12
11
16 15 14
EN
