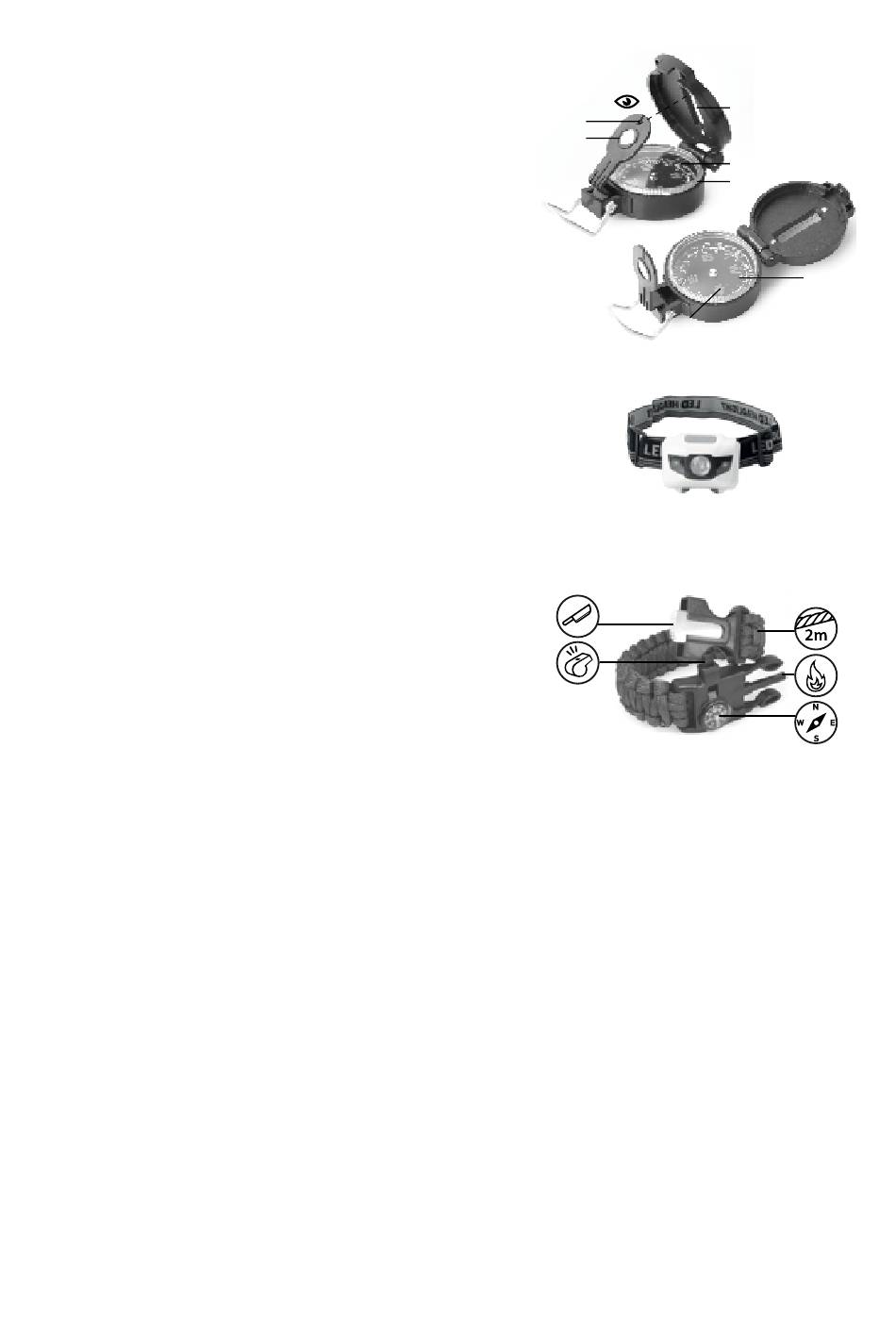

Compass
With the compass, you can easily orient
a map and set directions for travel, safely
hike off-road without getting lost, easily
determine where you are and calculate the
distance to your destination
Headlight
Headlight is a lightweight tool that is perfect for games and
easy orienting in darkness. The bright LED light has three
modes — straight light, flashing light, and SOS light — and can
be easily switched on or off. For SOS mode, press and hold the
button for 3 seconds. The angle of inclination is adjustable (up
to 45°). Battery replacement: open the battery compartment,
replace the batteries, and then close the compartment.
Flint bracelet
Flint bracelet is an excellent gift for any curious child and a
useful tool for hikers. This device can be used as a compass,
sharp blade, whistle, fire starter, and rope.

Walkie-talkie

Getting started
Press the fastener (23) and pull the pocket clip (24) gently. Open the battery compartment cover and insert 4 AAA
batteries according to the correct polarity. Close the cover until it clicks. Repeat the same steps with the second
device.
Using the walkie-talkie
To turn the device on, press and hold the On/Off button (6) for 3 seconds.
The volume level is controlled by the UP (4) and DOWN (7) buttons.
Both walkie-talkies must be tuned to the same channel and CTCSS tone/DCS code (if used), so that you can
communicate. Press the MENU button (11) — the channel digit will start blinking. Select one of the channels using
the UP (4) and DOWN (7) buttons and press the TALK button (15) to confirm the choice. To select the CTCSS tone/
DCS code for the current channel, press the MENU button (11) twice, specify the encoding type, and then one of the
codes. To save the settings, press the TALK button (15).
To call the other person, press the CALL button (12). During the conversation, the transfer icon (TX) will be shown
on the screen.
Press the TALK button (15) to send a voice message and keep it pressed while speaking. After the button is
released, the device will give a short beep tone, indicating that the device has switched to receiving mode.
To turn the backlight on, press any button except the MENU button (11) and the monitoring button (5).
To reset to the factory settings turn the device off, press the UP button (4) and turn the device on again.
Other functions
Monitoring — is used in case of an unstable signal. It disables the squelch function so that all the signals on the
selected channel become audible.
Scan — checks all channels for activity, stopping at each channel where activity is detected. Press the TALK
button (15) to stop on the selected channel.
1. Sight wire (front
sight)
2. Sight glass
3. Rotating rim
4. Sight slot (sight
notch)
5. Magnifying glass
6. North arrow
(compass needle)
7. 360° scale with
degrees
6
1
4
5
2
3
6
3xAAA batteries
7
