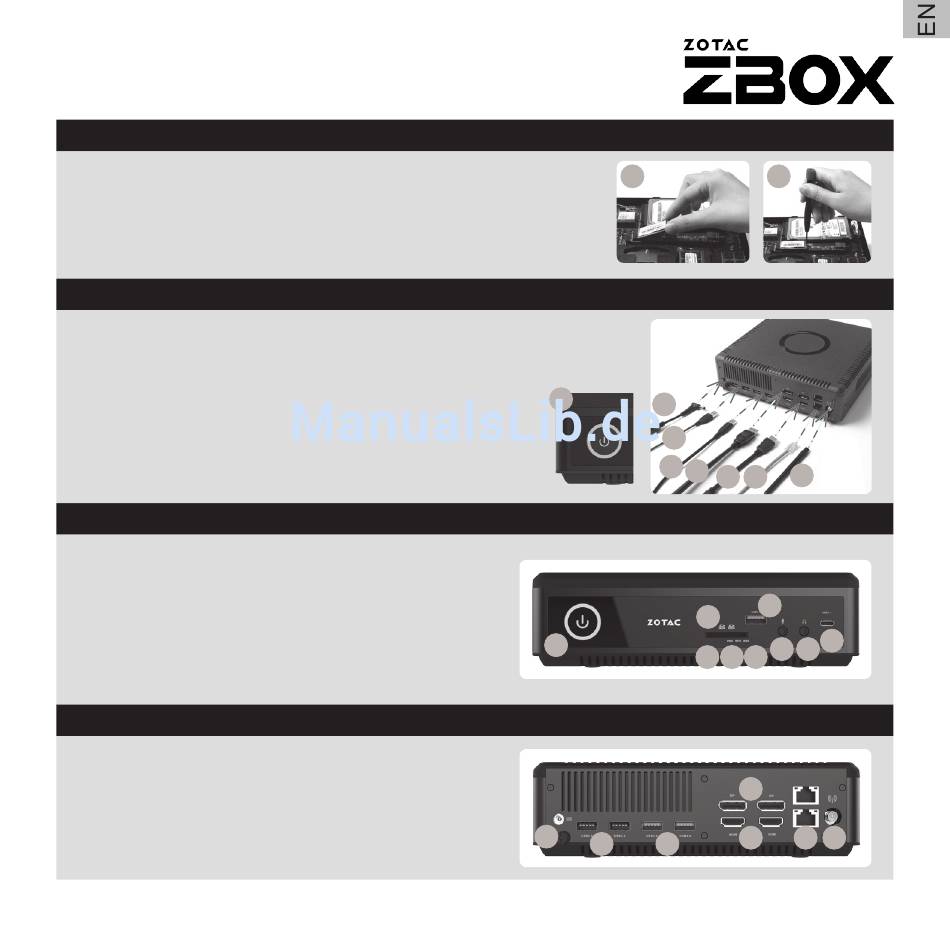

I N S TA L L I N G M . 2 S S D M O D U L E (O P T I O N A L )
1. Locate the M.2 SSD slot and insert an M.2 SSD
module into the slot at a 45 degree angle.
2. Gently press down on the M.2 SSD module, and install
the screw.
S E T T I N G U P YO U R ZOTAC Z B OX
1. Connect USB 2.0 devices
2. Connect USB 3.0 devices
3. Connect DP displays
4. Connect HDMI displays
5. Connect to home networks
6. Connect antenna for WiFi
7. Connect power cable
8. Turn on the system
F R O N T PA N E L
1. Power button
2. Memory card reader (SD/SDHC/SDXC)
3. Power LED
4. WiFi LED
5. Hard drive LED
6. USB 3.1 port
7. Microphone jack
8. Headphone/Audio Out jack
9. USB 3.1 Type-C port
R E A R PA N E L
1. Power input (DC19.5V)
2. USB 2.0 ports
3. USB 3.0 ports
4. DP ports
5. HDMI ports
6. LAN (RJ45) ports
7. WiFi antenna connector
1
8
7
1
2
3
2
1
3 4 5
1
2 3
2
6
4 5
6
9
7 8
4
5 6 7
3
