Plastic – Hand operated pump for 60-200L
ENG
drums/containers

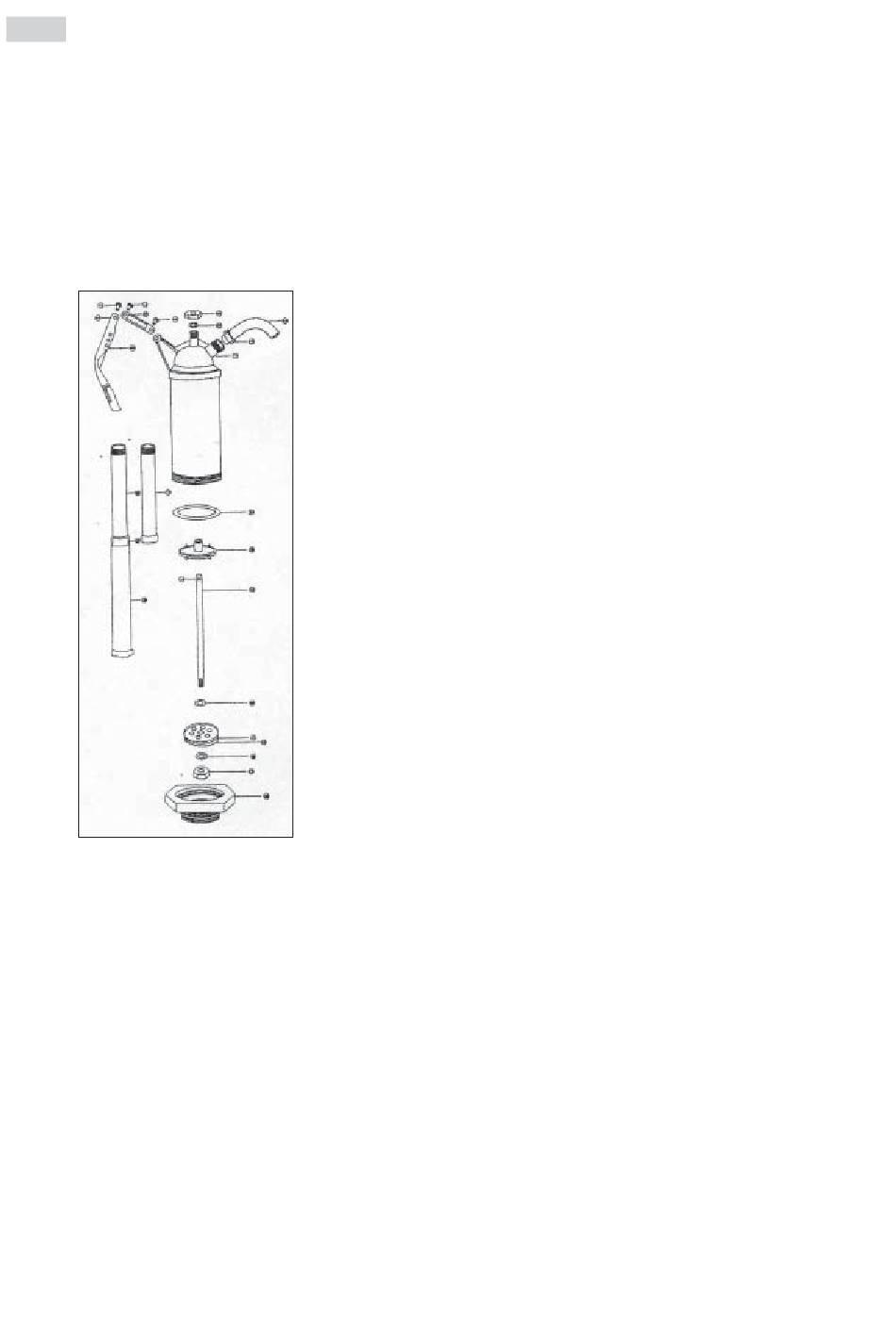

Assembly of the telescopic suction tube
Screw the telescopic suction tube into the opening provided at the lower end of
the pump body, and also attach the centrepiece of the telescopic intake tube.
Turn the tube in one direction to make sure that it is tightly fi xed and sealed at
the same time.
This pump is not suitable for acids or alkalis.
This hand-operated pump is not suitable for solvents or media of hazard
classes A I and A II.
Please note the safety instructions and wear the necessary protective
clothing (gloves, safety goggles etc.).
Starting Up
Pull out the telescopic suction tube to the suction height
of your container. affi x the two screws provided to the
pump lever and intake shaft, and move the pump lever to
the required
position.
Possibilities: 0.3 / 0.37 or 0.45 litre delivery rate per lever
stroke at approx. 20° C engine oil temperature.
Attach the arched discharge pipe.
There are two drum-threads at the lower end of the pump
body (G2" and G1 ½"). Connect the pump fi rmly to the
drum/container.
The hand-operated pump is now ready for use.
Operate the handle several times very quickly to allow the
water column to build up.
For the fi rst suction operation, a minimum fi lling level of
12-15 cm in the container is needed.
To prevent liquid from escaping, tighten the screw on the
pump shaft (steel). The pump is suitable for oil, diesel,
alcohol (max. 50% conc.), water petroleum etc.
