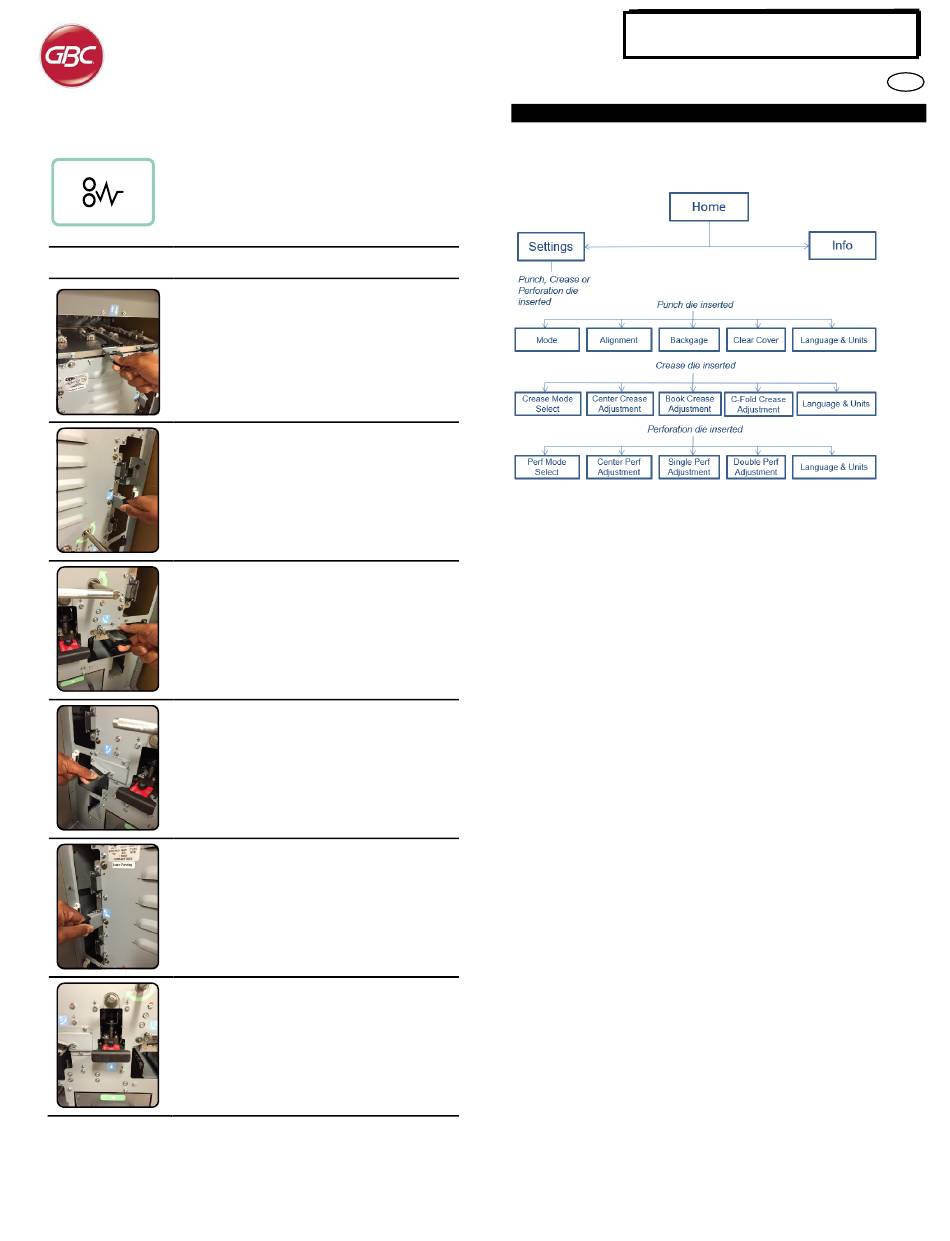

C. Paper Clearing:
When paper is jammed in the paper path of
SmartPunch Plus the LCD display shows the area
where a sheet(s) is jammed.
Area
If paper is jammed in Zone 1, lift the paper guide
plate located just inside, reach and remove the
jammed paper. To close the paper guide, raise
the handle to unlatch the mechanism and firmly
close it.
If paper is jammed in Zone 2, move the door to
the right, reach in and remove the jammed paper.
If paper is jammed in Zone 3, press the top lever
while holding the bottom lever. This will unlatch the
chute; continue to open the chute until it reached
the magnet on the right side. Reach in and remove
the paper. To return the chute to the closed
position, move it back in the opposite direction until
the latch mechanism is activated.
If paper is jammed in Zone 5, unlatch the chute,
reach in and remove any jammed paper.
If paper is jammed in Zone 6, move the door to
the left, reach in and remove the jammed paper.
Before uninstalling the die set, ensure Zone 3
and 5 are cleared of any jammed paper. If there
is no paper found in Zone 3 and 5, then uninstall
the die set to remove any jammed paper. (see
Section 4. Changing the Interchangeable die
sets)
Description
SmartPunch Plus
5. USER DISPLAY OPERATION CONTROLS
The SmartPunch Plus has a touch screen interactive LCD panel that
provides messages, settings, and information relating to the functions of
the punch unit.
LCD Panel Overview
Messages on the LCD Panel
1. Ready
SmartPunch Plus is ready to run the selected mode.
2. Running
SmartPunch Plus is running in the selected mode operation.
3. Chip tray Full
When the punch container becomes full of wastepaper chips, this
message will be displayed.
4. Chip tray Out
When the punch container is removed or not fully inserted into the
punch unit, this message will be displayed.
5. Check die
When the Die Set is removed or not fully inserted into the punch
unit, this message will be displayed. When this message is
displayed the punch unit will run in Bypass mode only.
6. Close Door
When the Front door is open or not completely closed this message
will be displayed.
7. Paper jam
When a sheet of paper becomes jammed within the punch unit, this
message is displayed. See the section of this manual titled PAPER
CLEARING for instructions on how to remove a jammed sheet.
8. Setting Mismatch
The settings on the printer and the Smartpunch Plus do not match
for crease or perforation. Refer to Table 4 in Section 7
9. Our of Range Adjustment
The settings on the Smartpunch Plus are out of range for the sheet
size being run. Refer to Table 2 in Section 7
10. Invalid Sheet Size
The sheet sent to the Smartpunch Plus is not valid for the die or
mode installed in the punch. Refer to Table 1 in Section 7
