8. DIE SET USER MANUAL

The SmartPunch Plus accepts Punch, Crease and Perforation dies.
Punch dies must be configured for the paper size being processed.
Crease and Perforation dies do not need configuring.
Glossary
LEF- Long Edge Feed- Indicates that the paper is being fed through the
machine so that the longer side of the sheet will be punched.
SEF- Short Edge Feed- Indicates that the paper is being fed through the
machine so that the shorter side of the sheet will be punched.
Legal Paper- 8.5" X 14"
Ledger Paper- 11" X 17"
Punch Dies
The punch die sets for the SmartPunch Plus are intended to work with
multiple paper sizes and sheet feed directions. In order to accommodate
different sheet sizes the die set must be configured to the correct number
of punching pins and the die stop must be set to the proper position. The
die label contains information on the common paper punching sizes, for
the uncommon sizes please refer to Table 1.

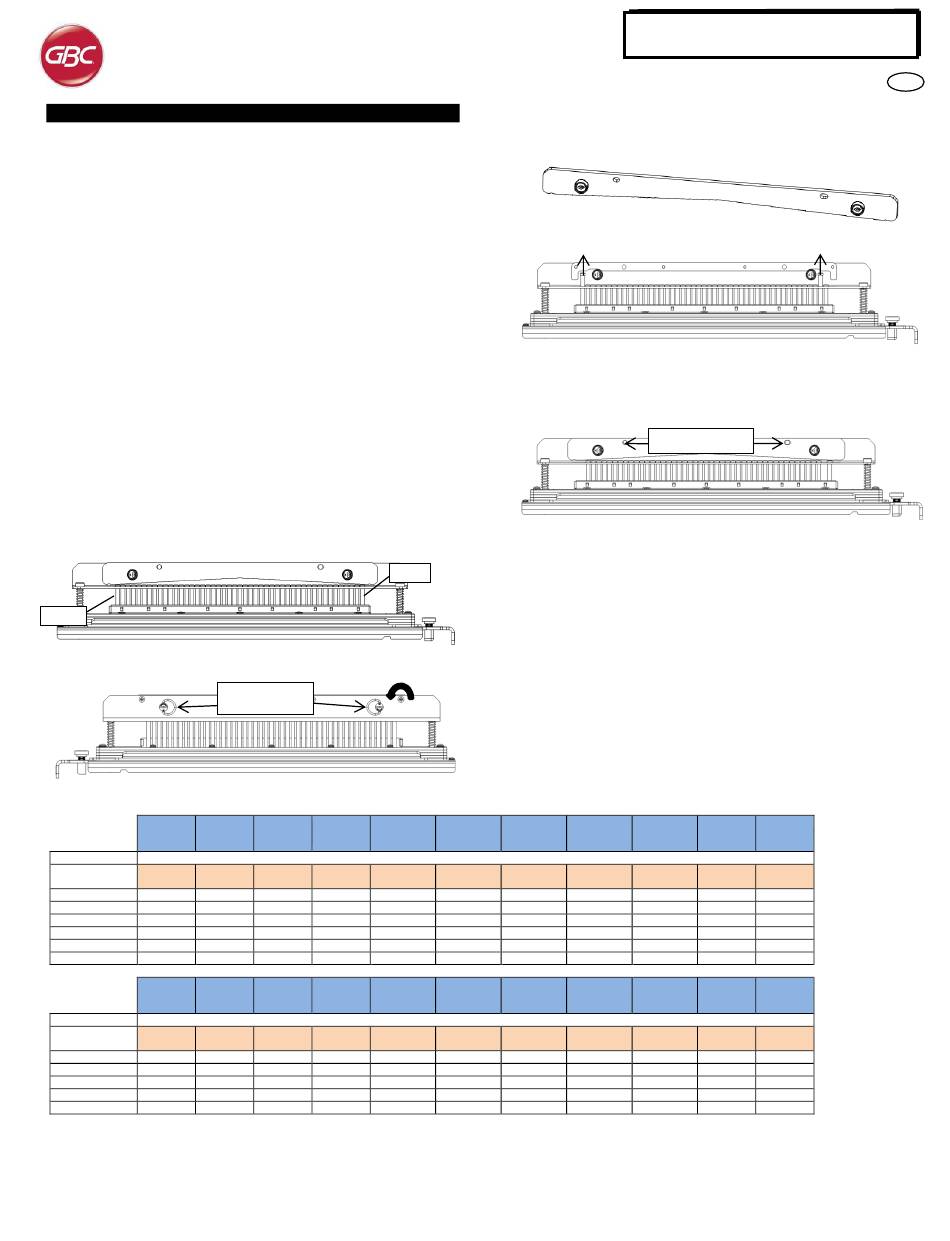

Pin Numbering
Die punching pins are numbered sequentially starting from the handle
end. Figure 8.1 shows a 47 hole coil die as an example. All square and
round hole die sets follow the same pin numbering format.
Pin #47
Figure 8.1 Coil Die Set Pin Numbering
Figure 8.2 Pressure Bar Removal
Pin Removal
Wire
Coil
2:1
Rnd/Oval
Rnd/Sq
US Paper Sizes
GBC Part Number WSM7724570 WSM7724571
WSM7724583 WSM7724581
LTR LEF 2, 47 1, 23
LTR SEF 7, 42 NONE
LEGAL SEF 7, 42 NONE
LEDGER SEF 2, 47 1, 23
9" x 12" LEF 1, 2, 47 1, 23
12" x 18" SEF 1, 2, 47 1, 23
Wire
Coil
2:1
Rnd/Oval
Rnd/Sq
ISO Paper Sizes
GBC Part Number WSM7724570 WSM7724571
WSM7724583 WSM7724581
A4 LEF NONE NONE
A4 SEF 7, 41 4, 21
A3 SEF NONE NONE
SRA4 LEF NONE NONE
SRA3 SEF NONE NONE
*For CombBind 20H configuration pull Pin Number 1
The above chart shows the information on which pins need to be removed to correctly punch each sheet size and configuration that the SmartPunch Plus
can accept. For standard offering dies not found in the chart no pin adjustment is necessary.
Pin #1
Quarter Turn
Fastener
Wire 3/5/7
3 Hole
3:1 Hole
8mm
Rnd/Sq 8mm
Pin numbers to be removed based on paper size and orientation
WSM7724584
WSM7724573 WSM7724574 WSM7724575 WSM7724576 WSM7724577 WSM7724578 WSM7724579 WSM7724580
WSM7724582
1, 34 NONE 3H/5H/7H
5, 31 N/A N/A
5, 31 N/A N/A
1, 34 NONE 3H/5H/7H
1, 34 NONE 3H/5H/7H
1, 34 NONE 3H/5H/7H
Wire 3/5/7
3 Hole
3:1 Hole
8mm
Rnd/Sq 8mm
Pin numbers to be removed based on paper size and orientation
WSM7724584
WSM7724573 WSM7724574 WSM7724575 WSM7724576 WSM7724577 WSM7724578 WSM7724579 WSM7724580
WSM7724582
NONE N/A N/A
5, 30 N/A N/A
NONE N/A N/A
NONE N/A N/A
NONE N/A N/A
Table 8.1 Pin Removal Guide
To remove punch pins from the punch die first turn the two Quarter Turn
Fasteners counter clockwise to release the pressure bar. Remove the
pressure bar and set aside.
Lift up and remove the desired pins according to Table 8.1. Store pins in
the pin storage tray inside front door of machine making sure pins cannot
be dropped, damaged or lost while removed.
Replace the pressure bar by lining up dowel pin holes with exposed
dowel pins. Hold pressure bar so that it is seats completely over dowel
pins and then rotate Quarter Turn Fasteners clockwise until a click is felt
to lock pressure bar in position.
Important! Make sure pressure bar is attached and both Quarter Turn
Fasteners are in the locked position prior to inserting the die set into the
machine or serious damage can occur to both the machine and die set.
2/4 2/4 2/4
Hole Hole Hole
8mm 6.5mm SCAN
N/A N/A N/A
N/A N/A N/A
N/A N/A N/A
N/A N/A N/A
N/A N/A N/A
N/A N/A N/A
2/4 2/4 2/4
Hole Hole Hole
8mm 6.5mm SCAN
2H/4H 2H/4H NONE
1, 4 1, 4 NONE
2H/4H 2H/4H NONE
2H/4H 2H/4H NONE
2H/4H 2H/4H NONE
SmartPunch Plus
Figure 8.3 Pressure Bar
Figure 8.3 Pin Removal
Dowel Pin Holes
Figure 8.4 Replace Pressure Bar
VeloBind VeloBind
11 Hole 12 Hole CombBind
LTR A4
NONE N/A 1, 21
N/A N/A NONE
N/A N/A NONE
NONE N/A 1, 21
NONE N/A 1, 21
NONE N/A 1, 21
VeloBind VeloBind
11 Hole 12 Hole CombBind
LTR A4
N/A NONE NONE
N/A N/A 4, 19
N/A NONE NONE
N/A NONE NONE
N/A NONE NONE
