PRODUCT DESCRIPTION

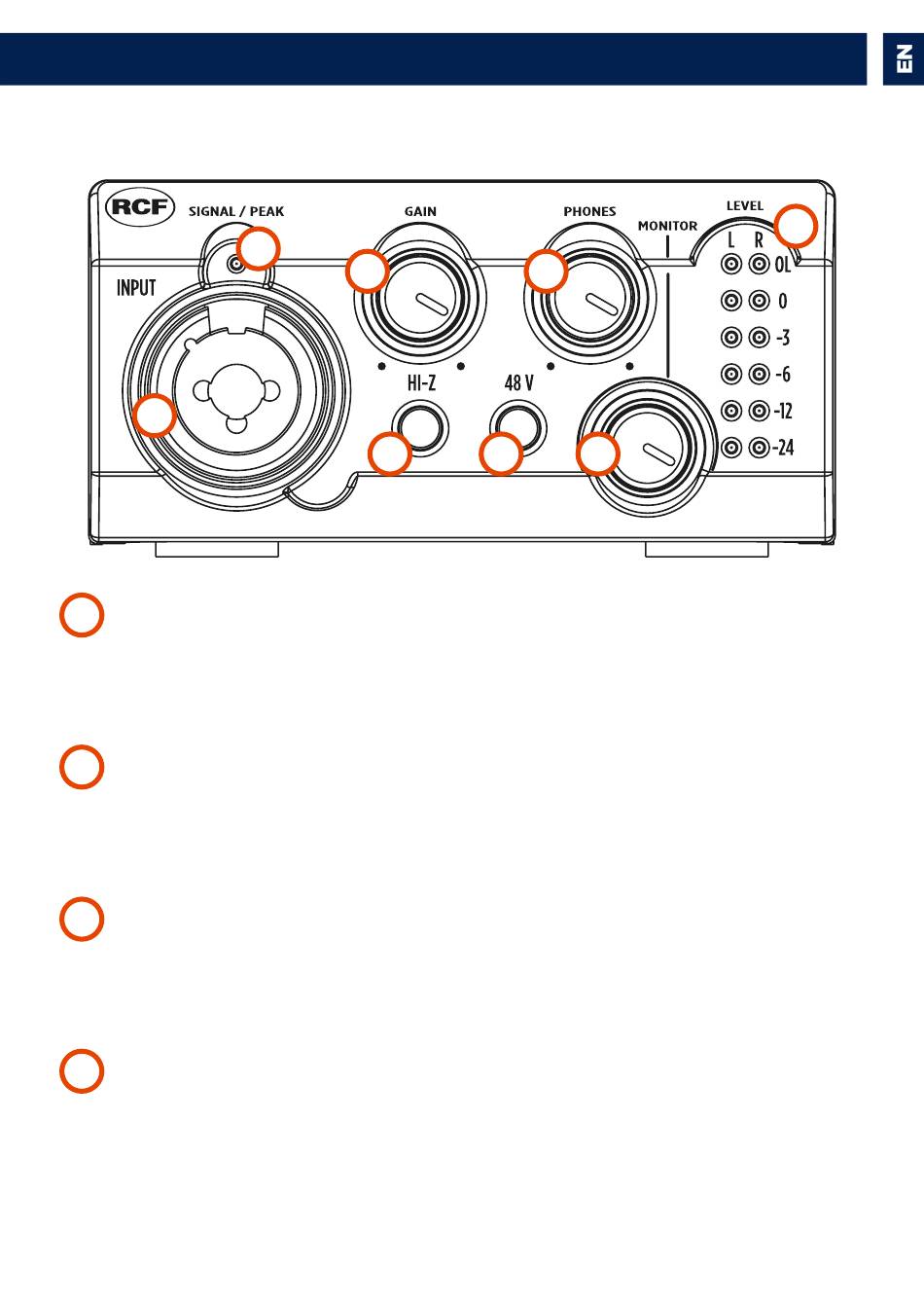

FRONT PANEL

1
MIC/LINE/HI-Z COMBO INPUT This input accepts microphones
1
via XLR and instruments (such as electric guitar or bass) or line inputs
via 6.35mm jack plug.
INPUT GAIN LEVEL CONTROL KNOBS This knob is for
2
adjusting gain level of microphone, instrument or line input. Rotate
clockwise to increase gain level or counterclockwise to reduce it.
INPUT SIGNAL PRESENCE LED This LED lights up blue when a
3
signal is present in the input channel; it lights up red when input level
exceeds the overload threshold.
LINE INPUT Impedance SELECTOR These button activates
4
high impedance (Hi-Z) on the 6.35mm jack input. When Hi-Z is not
selected, the LED is off and the input is set to a regular "Line IN";
select Hi-Z (the led lights on) to turn the Jack Input to "Instrument In"
to connect low level musical instruments.
