Selecting DDC information

Since the monitor is connected to the user module and not directly to the graphic
output of the computer, the computer cannot access the DDC information of the
monitor.
For this reason, preset DDC information that are provided to the computer are
stored in the target modules of the CATpro2-DVI-Audio series. Additionally, the
DDC information of the monitor can be read out and stored in the target module.

Preset DDC information

In the default setting of the target module the DDC switch is moved to the Def. position:
2 3
1
Def.
User
Learn 7
Trans. 1 Trans. 2

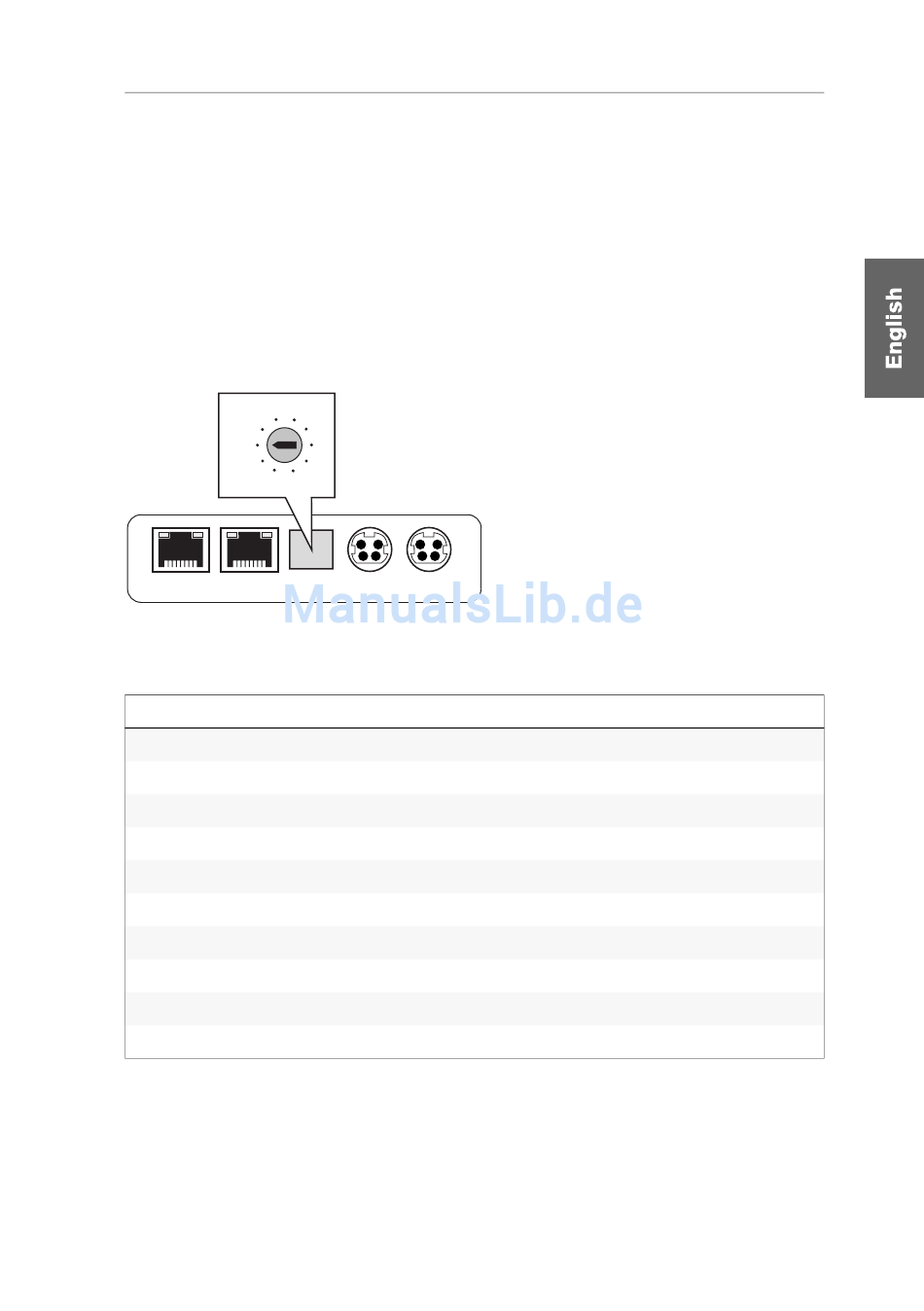

Figure 7: Detailed view of the DDC switch
The following table lists the different switch positions and their DDC information:
Switch setting DDC information
Def. Default (basically all resolutions possible)
1 1280 × 1024 pixels, 60 Hz (VESA-DMT)
2 1024 × 768 pixels, 60 Hz (VESA-DMT)
3 1600 × 1200 pixels, 60 Hz (VESA-DMT)
4 1920 × 1200 pixels, 60 Hz (VESA-CVT-RB)
5 1360 × 768 pixels, 60 Hz (VESA-CVT)
6 1680 × 1050 pixels, 60 Hz (VESA-CVT)
7 1440 × 900 pixels, 60 Hz (VESA-CVT)
User uses a monitor's read-out DDC information
Learn reads DDC information out
4
5
6
DDC Power Loop Power In
Target modules » CATpro2-DVI-Audio
G&D CompactCenter X2 · 27
