Maintenance and service
The camera is maintenance-free.
The glass surfaces of the lenses and protective panels must be cleaned as required.
Troubleshooting
Camera not in operation (no output signal)
Camera in operation, but no picture
Camera in operation, but picture out of focus
A complete FAC 940 Service Manual can be obtained from your local Funkwerk office under
order no. 0043041-969.01.
Use the exchange pool at your local Funkwerk office if repairs are needed.
Service address: Funkwerk video systeme GmbH
Thomas-Mann-Str. 50
D-90471 Nürnberg
Tel.: +49 (0)911 75884-0
Fax: +49 (0)911 75884-100

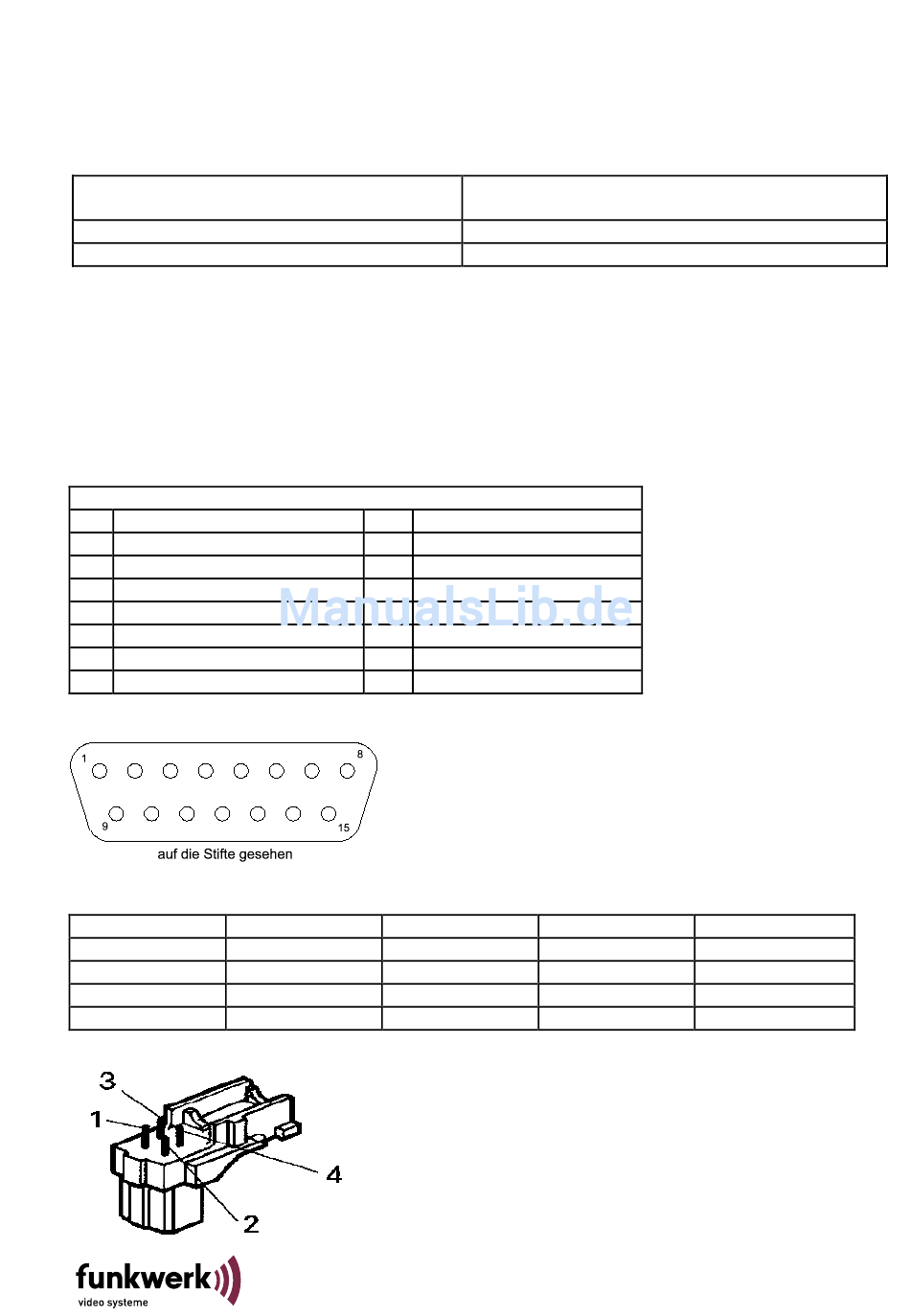

Connector pin assignments of D-SUB system connector
Table 1
1 Remote control RXD_A
2 Remote control RXD_B
3 ST1
4 Remote control TXD_B
5 GENLOCK/LINE LOCK
6 -(C)VBS/C
7 (C)VBS
8 +(CVBS)/Y
View of the pins
Table 2: Pin assignments of lens connector
Auto iris lens
Connector pin 1 +12 V DC
Connector pin 2
Connector pin 3 Video signal
Connector pin 4 GND
Check wiring; check voltage supply (power supply
unit)
Check wiring; configure or adjust lens correctly
Adjust back focus and lens.
9 +U_BATT
10 ST2
11 GENLOCK GND
12 Remote control TXD_A
13 -UBATT
14 GND
15 GND
Galvanometer
- Damping
+ Damping
+ Drive
- Drive
21
Kangaroo lens ER lens
+12 V DC
Control Control
GND GND
FAC 940
