HAT 1400 CANopen Safety

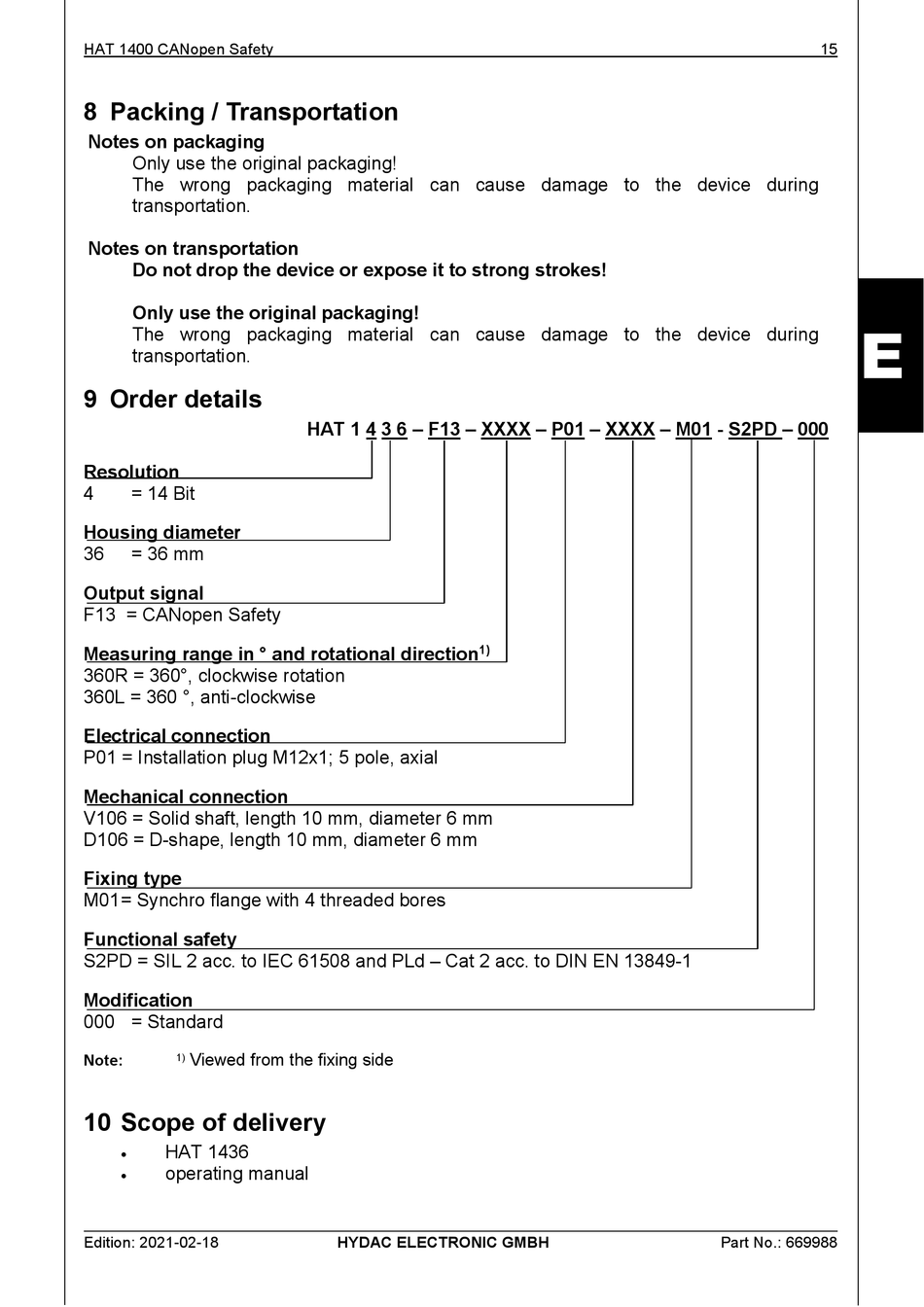

8 Packing / Transportation

Notes on packaging
Only use the original packaging!
The wrong packaging material can cause damage to the device during
transportation.
Notes on transportation
Do not drop the device or expose it to strong strokes!
Only use the original packaging!
The wrong packaging material can cause damage to the device during
transportation.

9 Order details

Resolution
4 = 14 Bit
Housing diameter
36 = 36 mm
Output signal
F13 = CANopen Safety
Measuring range in ° and rotational direction
360R = 360°, clockwise rotation
360L = 360 °, anti-clockwise
Electrical connection
P01 = Installation plug M12x1; 5 pole, axial
Mechanical connection
V106 = Solid shaft, length 10 mm, diameter 6 mm
D106 = D-shape, length 10 mm, diameter 6 mm
Fixing type
M01 = Synchro flange with 4 threaded bores
Functional safety
S2PD = SIL 2 acc. to IEC 61508 and PLd – Cat 2 acc. to DIN EN 13849-1
Modification
000 = Standard
Viewed from the fixing side
Note:
1)

10 Scope of delivery

HAT 1436

operating manual

Edition: 2021-02-18
HAT 1 4 3 6 – F13 – XXXX – P01 – XXXX – M01 - S2PD – 000
1)
HYDAC ELECTRONIC GMBH
15
E
Part No.: 669988
