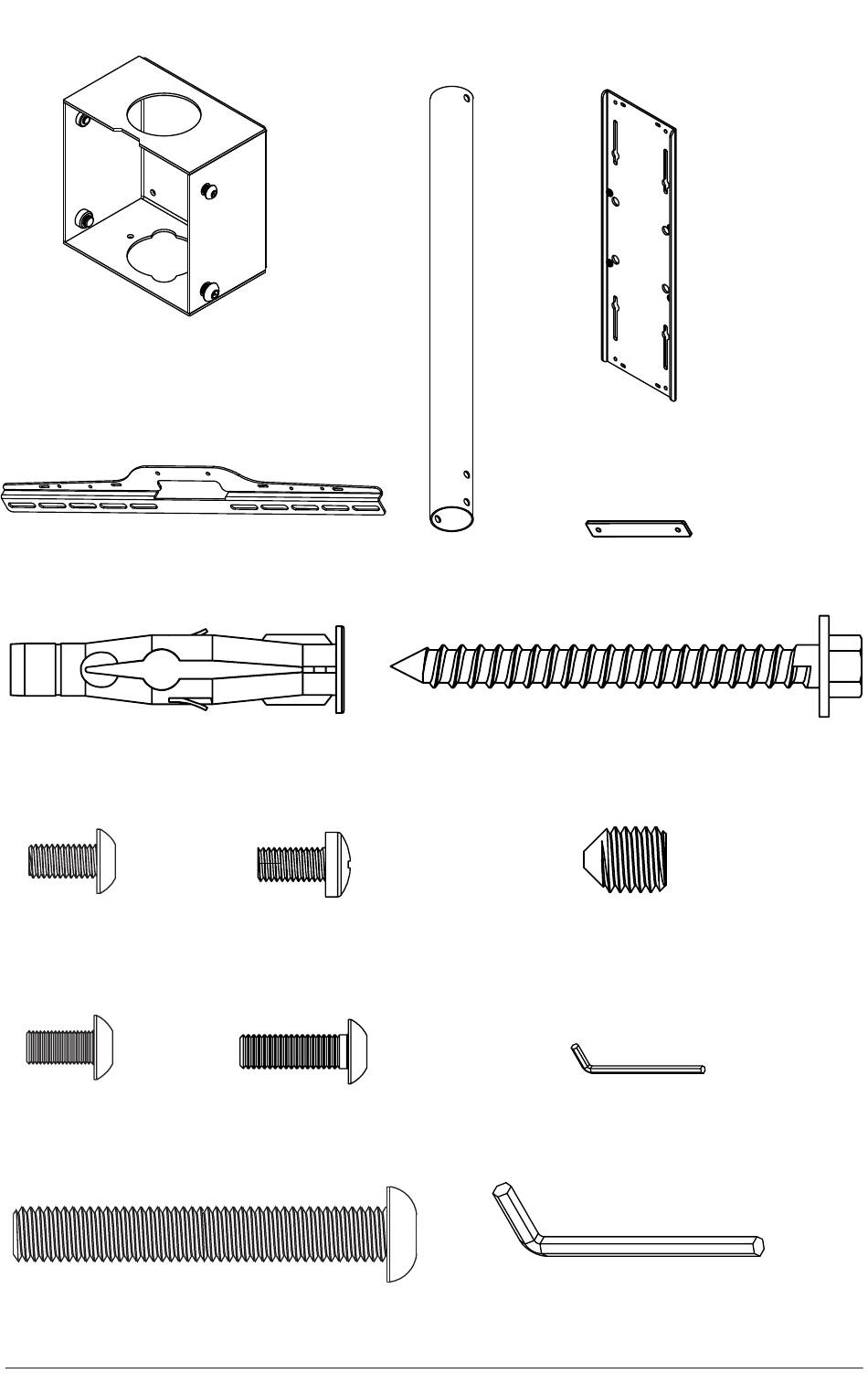

vertical plate
pole
tilt box
O (2)
P (2)
horizontal plate
plate nut
D ( 8 )
E ( 8 )
10mm concrete anchor
3" wood screw
R ( 1 )
G ( 2 )
J (2)
M10 x 10mm
M5 x 10mm
M5 x 10mm
self-tapping
Q (8)
K (2)
H (1)
M5 x 10mm
M5 x 16mm
4mm allen
wrench
F ( 2 )
C (1)
M8 x 55mm
5mm allen wrench
7
2012-04-30
#:203-9116-9 (2020-05-20)
