Aritech 2000 Series Installationshandbuch Seite 3

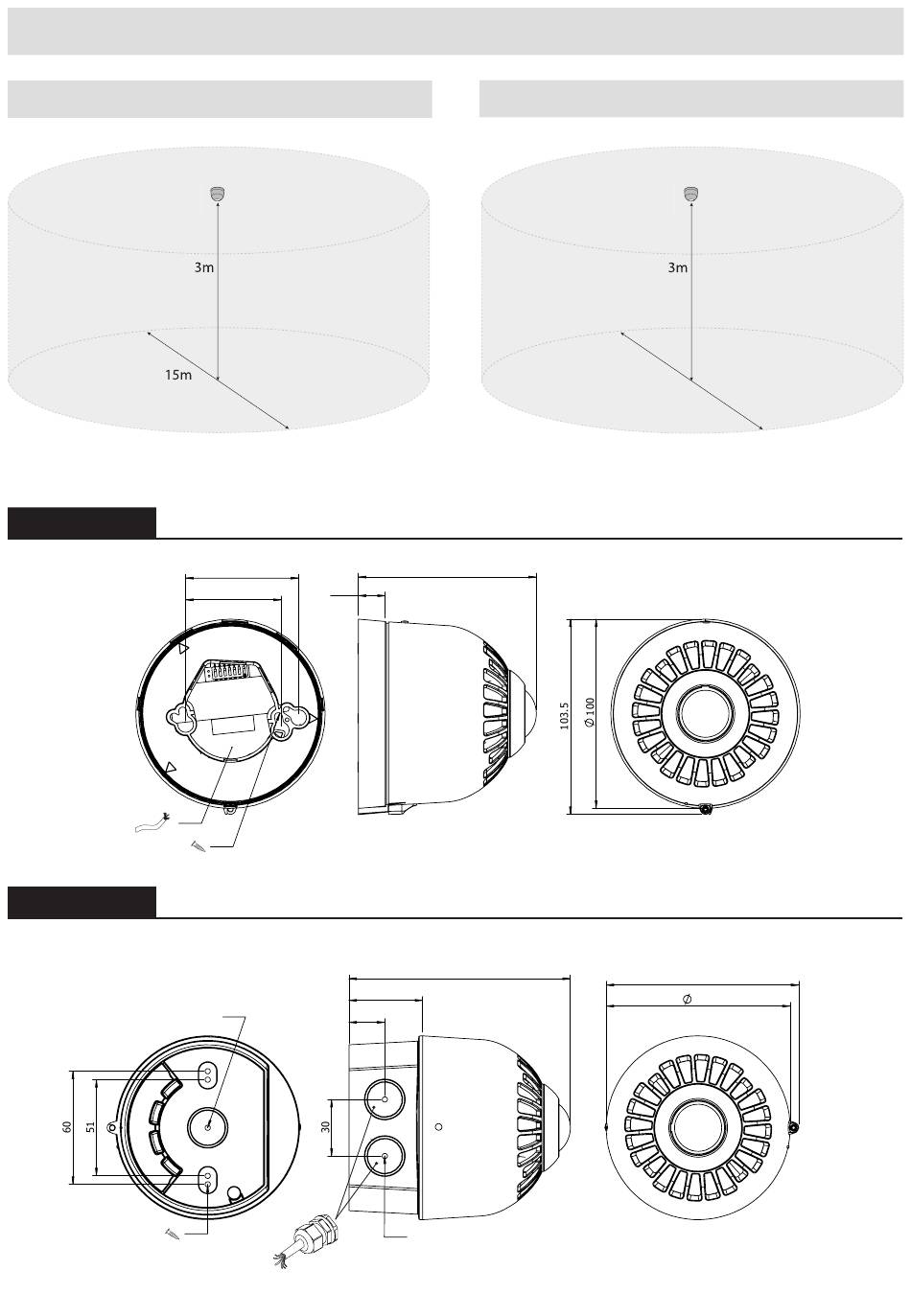

White Flash: C-3-15
Shallow Base
Cable Entry
4.2 Fixing Holes
M4
Deep Base
M20 Drill out gland hole
for rear cable entry
4.5mm Fixing Holes
M4
Ceiling Mount - EN54-23 Coverage
60
14
51
19
M20
94
117
39
M20
M20 drill out gland hole
for side cable entry
Red Flash: C-3-9
9m
102
97.5
