IMPORTANT NOTES:
• Always read the operating instructions attentively before rst use. You will become familiar with your E-bike more quickly that way
and can avoid wrong operation leading to damage or accidents. Speci cally follow the safety and danger notes.
• The E-bike was delivered in the preinstalled condition. Before initial commissioning,it is therefore mandatory that the E-Bike be set,
adjusted and checked for tight t of the components and screws.

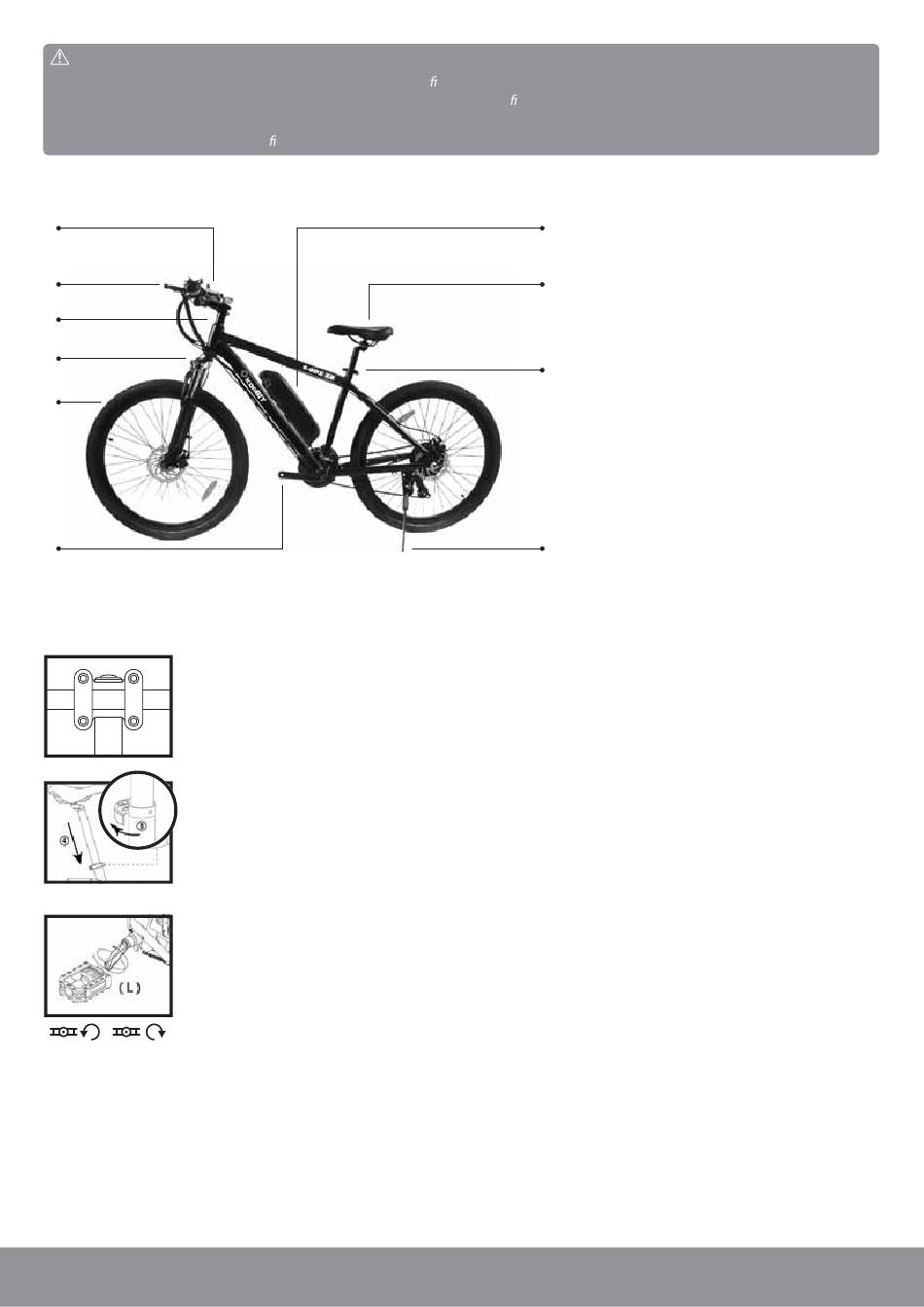

1. Overview
1
2
3
4
5
6
2. Installation
1. Straighten the handlebars: rotate the handlebar to a suitable position and lock into place. Tighten the handlebar
with the screws.
2. Adjust the saddle height by opening the quick release seat post clamp. Lift the saddle up to an ideal height
and a suitable position. Lock the quick release seat post clamp.
Note: An ideal height is provided when the knee is at a soft bend while sitting on the saddle and your foot placed on the pedal at its lowest point.
3. Installing the pedals:
• Note the left and right of the pedal.
• [L] left [R] right are stamped on the threaded end of the pedal.
• Attach the L pedal to the L crank, then R pedal to R crank.
• Screw the pedals in and tighten them fully.
L R
Caution: The L pedal has left-hand threads, and the R pedal has right-hand threads. Damages caused due to improper installation are not covered by the warranty.
7
1. Instrument panel
2. Brake
3. Stem
8
4. Front interpolation
5. Front wheel
6. Pedal crank arm
7. Battery
9 8. Saddle
9. Seat post clamp
10. Kickstand
