4.4- Switch On/Off (Fig.1)
To operate product, press on trigger switch (4).
To stop product, release the trigger switch (4).
Note: the switch cannot be activated wen the selector (3) is set in middle position.
4.5- Changing to Forward or Reverse mode (Fig.1)
To change the rotation, press on the Forward/Reverse selector (3).
Note: do not abruptly change rotating direction when machine is operating.
4.6- Inserting and removing a socket
- To install a socket on the anvil chuck: align the hole of the socket with the chuck (1) and push down firmly.
Ensure it is centered and properly fixed.
- To remove a socket from the anvil chuck: Pull socket out firmly.
4.7- LEDs on battery charger
The two LEDs (10) on the charger (9) will indicate the charging status:
The red LED lighted on means the charger is powered and the battery is charging.
The green LED lighted on means the battery is fully charged.

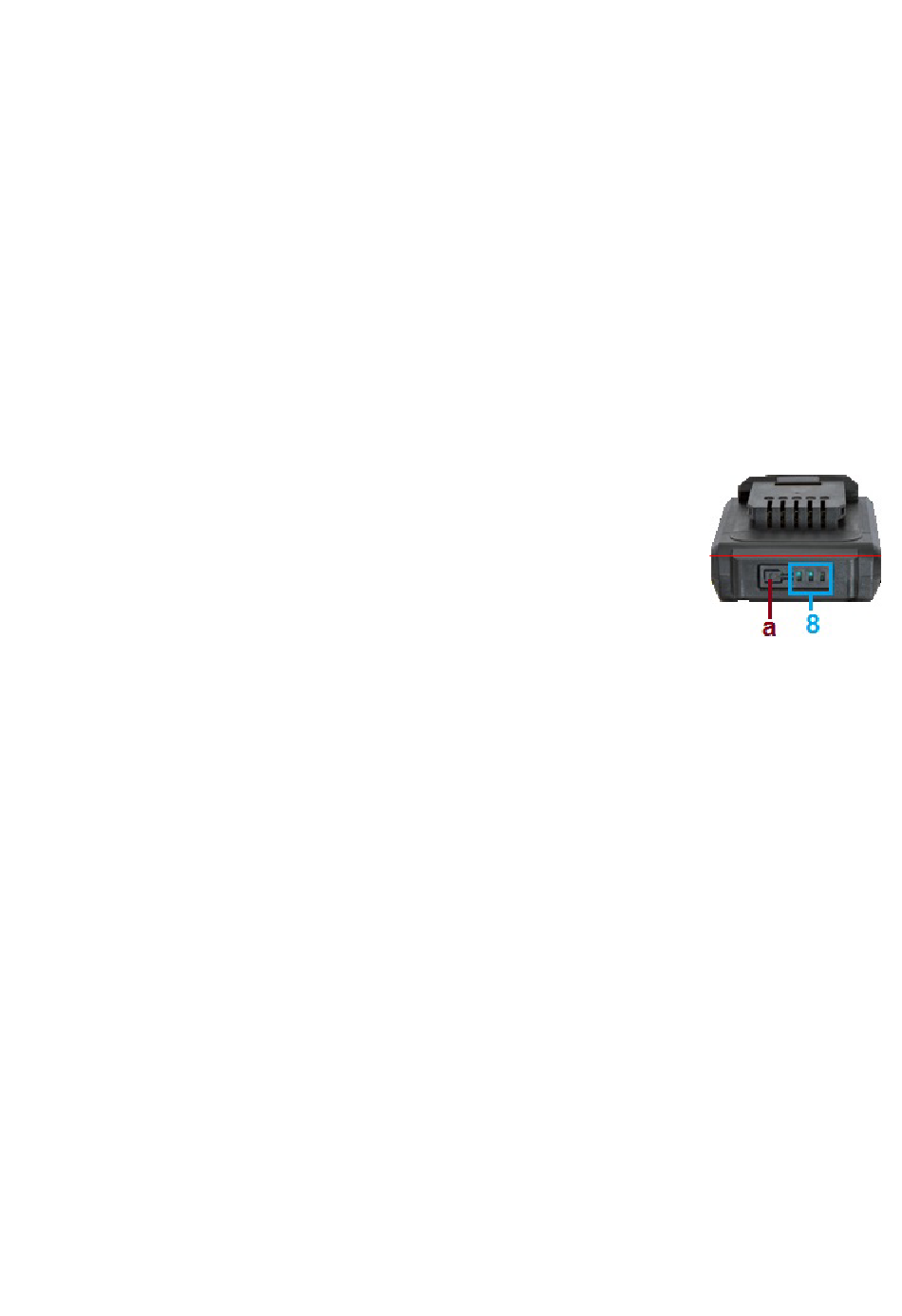

4.8- LEDs on battery
The LEDs on the battery (8) indicate the charging level of the battery.
Press on button [a], the LEDs battery level will light up:
3 LEDs on = the battery is fully charged (full capacity).
2 LEDs on = the battery is half charged (medium capacity).
1 LED on = the battery capacity is low and needs to be charged.
0 LED on = the battery is depleted.
V. OPERATION
5.1- Intended use
- The product is intended for domestic use (indoor or under shelter).
- The product is intended for forward/reverse screwing (within tool own specifications).
- Do not use tool for any other use outside the scope of this manual.
- Any other use different from that indicated in these instructions may cause damage to the tool and present a
danger to the user.
- DO NOT use nor mount on the tool accessories that are not recommended by the manufacturer.
- The product is not intended for artisanal, commercial, professional and/or industrial use.
- Do not use for applications not covered in this manual.
- The manufacturer or seller cannot be held responsible for incorrect or non-compliant use of machine.
5.2- Operation
Note: Before first use, charge the battery.
1. Ensure that battery is fully charged.
2. Wear appropriate protective equipment.
3. Insert socket or accessory in the chuck.
4. Prepare material for work
5. Secure material if necessary.
Do not use your own weight or body to hold material.
6. Firmly hold tool to avoid kickbacks. Always maintain a balanced and secure position.
7. Place socket on bolt head. Do not make sudden movements.
8. Press on switch (4) to start operation.
