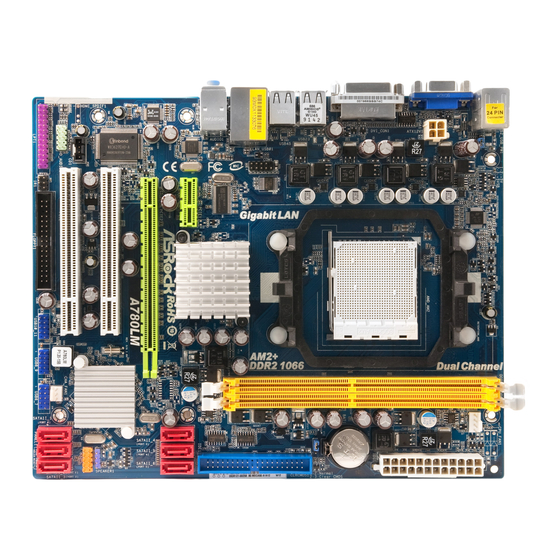

ASROCK A780LM Bedienungsanleitung
Vorschau ausblenden Andere Handbücher für A780LM:

Werbung

Copyright Notice:
Copyright Notice:
Copyright Notice:
Copyright Notice:
Copyright Notice:
No part of this installation guide may be reproduced, transcribed, transmitted, or trans-
lated in any language, in any form or by any means, except duplication of documen-
tation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this guide may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identifica-
tion or explanation and to the owners' benefit, without intent to infringe.
Disclaimer:
Disclaimer:
Disclaimer:
Disclaimer:
Disclaimer:
Specifications and information contained in this guide are furnished for informational
use only and subject to change without notice, and should not be constructed as a
commitment by ASRock. ASRock assumes no responsibility for any errors or omissions
that may appear in this guide.
With respect to the contents of this guide, ASRock does not provide warranty of any kind,
either expressed or implied, including but not limited to the implied warranties or
conditions of merchantability or fitness for a particular purpose. In no event shall
ASRock, its directors, officers, employees, or agents be liable for any indirect, special,
incidental, or consequential damages (including damages for loss of profits, loss of
business, loss of data, interruption of business and the like), even if ASRock has been
advised of the possibility of such damages arising from any defect or error in the guide
or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
substance controlled in Perchlorate Best Management Practices (BMP) regulations
passed by the California Legislature. When you discard the Lithium battery in
California, USA, please follow the related regulations in advance.
"Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate"
ASRock Website: http://www.asrock.com
Copyright©2009 ASRock INC. All rights reserved.
ASRock
Published January 2009
A780LM
Motherboard
1 1 1 1 1

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für ASROCK A780LM

  • Seite 1 ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.
  • Seite 2: Motherboard-Layout

    (SPEAKER 1, Purple) PCI Express 2.0 x1 Slot (PCIE1; Green) System Panel Header (PANEL1, Orange) Northbridge Controller Third SATAII Connector (SATAII_3 (PORT 2)) Serial Port Connector (COM1) Secondary SATAII Connector (SATAII_2 (PORT 1)) 2 2 2 2 2 ASRock A780LM Motherboard...
  • Seite 3 Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device advanced settings”, choose “Make front and rear output devices playbacks two different audio streams simultaneously”, and click “ok”. Then reboot your system. 3 3 3 3 3 ASRock A780LM Motherboard...
  • Seite 4 In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using.
  • Seite 5 - Realtek RTL8111DL - Supports Wake-On-LAN Rear Panel I/O I/O Panel - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x VGA/D-Sub Port - 1 x VGA/DVI-D Port 5 5 5 5 5 ASRock A780LM Motherboard...
  • Seite 6 - CPU Frequency Stepless Control (see CAUTION 11) - ASRock U-COP (see CAUTION 12) - Boot Failure Guard (B.F.G.) - ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5% (see CAUTION 13) Hardware - CPU Temperature Sensing...
  • Seite 7 Certifications - FCC, CE, Microsoft WHQL Certificated * For detailed product information, please visit our website: http://www.asrock.com WARNING Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using the third-party overclocking tools.
  • Seite 8 It is a user-friendly ASRock overclocking tool which allows you to surveil your system by hardware monitor function and overclock your hardware devices to get the best system performance under Windows ® environment. Please visit our website for the operation procedures of ASRock OC Tuner.
  • Seite 9 XP / XP 64-bit OS, the function of 1080p Blu-ray (BD) / HD-DVD playback is not available, please visit our website for AMD RS780L (760G) VGA driver update in the future. ASRock website http://www.asrock.com 9 9 9 9 9 ASRock...
  • Seite 10 Onboard VGA with DVI-D port Memory Dual Channel DDR2 800, 1GB x 2 Windows ® Vista or Windows ® Vista Playback Software CyberLink PowerDVD Ultra (Version 7.3 or above) DVD Player Pioneer BDR-101A / LG GBW-H10N (BD) HP HD100 (HD-DVD) ASRock A780LM Motherboard...
  • Seite 11 When placing screws into the screw holes to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard. ASRock A780LM Motherboard...
  • Seite 12: Cpu Installation

    Then connect the CPU fan to the CPU FAN connector (CPU_FAN1, see Page 2, No. 6). For proper installation, please kindly refer to the instruction manuals of the CPU fan and the heatsink. ASRock A780LM Motherboard...
  • Seite 13: Installing A Dimm

    2.3 Installation of Memor y Modules (DIMM) A780LM motherboard provides two 240-pin DDR2 (Double Data Rate 2) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install two identical (the same brand, speed, size and chip-type) memory modules in the DDR2 DIMM slots to activate Dual Channel Memory Technology.
  • Seite 14: Installing An Expansion Card

    Remove the bracket facing the slot that you intend to use. Keep the screws for later use. Step 3. Align the card connector with the slot and press firmly until the card is com- pletely seated on the slot. Step 4. Fasten the card to the chassis with screws. ASRock A780LM Motherboard...
  • Seite 15 D-Sub monitor cable to the VGA/D-Sub port on the I/O panel. Connect the other DVI-D monitor cable and D-Sub monitor cable to the corresponding connectors of the add-on PCI Express VGA card on PCIE2 slot. ASRock A780LM Motherboard...
  • Seite 16 6. Use Surround Display. Click and drag the display icons to positions representing the physical setup of your monitors that you would like to use. The placement of display icons determines how you move items from one monitor to another. ASRock A780LM Motherboard...
  • Seite 17 HDTV set-top-boxes, as well as few entertain- ment PCs requires a secure connection to a compliant display. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that the HDTV or LCD monitor you purchase is compatible. ASRock A780LM Motherboard...
  • Seite 18 Install the onboard VGA driver from our support CD to your system for both the onboard VGA and the discrete graphics card. Step 6. Restart your computer. Then you will find “ATI Catalyst Control Center” on ® your Windows taskbar. ATI Catalyst Control Center ASRock A780LM Motherboard...
  • Seite 19 Technologies Inc., and is used only for identification or explanation and to the owners’ benefit, without intent to infringe. * For further information of ATI Hybrid CrossFireX technology, please check AMD website for up dates and details. ASRock A780LM Motherboard...
  • Seite 20 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear- CMOS action. ASRock A780LM Motherboard...
  • Seite 21 (SATAII_6 (PORT 5): see p.2, No. 10) Serial ATA (SATA) Either end of the SATA data cable Data Cable can be connected to the SATA / SATAII hard disk or the SATAII (Optional) connector on the motherboard. ASRock A780LM Motherboard...
  • Seite 22 (see p.2 No. 25) Internal Audio Connectors This connector allows you to receive stereo audio input (4-pin CD1) from sound sources such as (CD1: see p.2 No. 28) a CD-ROM, DVD-ROM, TV tuner card, or MPEG card. ASRock A780LM Motherboard...
  • Seite 23 Go to the "Front Mic" Tab in the Realtek Control panel. Click "Set Default Device" to make the Front Mic as the default record device. System Panel Header This header accommodates several system front panel (9-pin PANEL1) functions. (see p.2 No. 15) ASRock A780LM Motherboard...
  • Seite 24 (4-pin ATX12V1) ATX 12V plug to this connector. (see p.2 No. 1) Failing to do so will cause power up failure. Serial port Header This COM1 header supports a serial port module. (9-pin COM1) (see p.2 No.33) ASRock A780LM Motherboard...
  • Seite 25: Installing Windows

    RAID F RAID F RAID F RAID Functions unctions unctions unctions unctions ® ® If you want to install Windows Vista or Windows Vista 64-bit on your SATA / SATAII HDDs without RAID functions, please follow below steps. ASRock A780LM Motherboard...
  • Seite 26 64-bit OS on your system. When you see “Where do you want to install Windows? ” page, please insert the ASRock Support CD into your optical drive, and click the “Load Driver” button on the left on the bottom to load the AMD AHCI drivers. AMD AHCI drivers...
  • Seite 27 Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and double-click on the file “ASSETUP. EXE” from the “BIN” folder in the Support CD to display the menus. ASRock A780LM Motherboard...
  • Seite 28 ASRock A780LM Motherboard...
  • Seite 29 ‘ ’ ® ASRock A780LM Motherboard...
  • Seite 30 ASRock A780LM Motherboard...
  • Seite 31 ® ® ® ® ® ® ® ® ASRock A780LM Motherboard...
  • Seite 32 ASRock A780LM Motherboard...
  • Seite 33 ASRock A780LM Motherboard...
  • Seite 34 ASRock A780LM Motherboard...
  • Seite 35 ASRock A780LM Motherboard...
  • Seite 36 ASRock A780LM Motherboard...
  • Seite 37 SATAII_4 SATAII_5 SATAII_6 (PORT 3) (PORT 4) (PORT 5) SATAII_1 SATAII_2 SATAII_3 (PORT 0) (PORT 1) (PORT 2) ASRock A780LM Motherboard...
  • Seite 38 ASRock A780LM Motherboard...
  • Seite 39 ® ® ® ® 4 3 2 1 ASRock A780LM Motherboard...
  • Seite 40 ® ® ® ® ® ® ® ® ® ® ASRock A780LM Motherboard...
  • Seite 41 ® ® ® ® ® ® ® ® ® ASRock A780LM Motherboard...
  • Seite 42 ® ® ® ® ® ® ® ® ® ® ASRock A780LM Motherboard...
  • Seite 43 ® ® ASRock A780LM Motherboard...
  • Seite 44 ASRock A780LM Motherboard...
  • Seite 45: Einführung

    1. Einführung 1. Einführung 1. Einführung Wir danken Ihnen für den Kauf des ASRock A780LM Motherboard, ein zuverlässiges Produkt, welches unter den ständigen, strengen Qualitätskontrollen von ASRock gefertigt wurde. Es bietet Ihnen exzellente Leistung und robustes Design, gemäß der Verpflichtung von ASRock zu Qualität und Halbarkeit.
  • Seite 46: Spezifikationen

    - Unterstutzt 1080p Blu-ray (BD) / HD-DVD-Wiedergabe (siehe VORSICHT 6) ® Audio - 5.1 CH Windows Vista Premium Level HD Audio (ALC662 Audio Codec) - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111DL - Unterstützt Wake-On-LAN ASRock A780LM Motherboard...
  • Seite 47 - Zentraleinheit, DRAM, NB, SB Stromspannung Multianpassung - Unterstützt Smart BIOS Support-CD - Treiber, Dienstprogramme, Antivirussoftware (Probeversion) Einzigartige - ASRock OC Tuner (siehe VORSICHT 9) Eigenschaft - Intelligent Energy Saver (Intelligente Energiesparfunktion) (siehe VORSICHT 10) - Sofortstart - Hybrid Booster:...
  • Seite 48 - ASRock AM2 Boost: ASRocks patentgeschützte Technologie zur Erhöhung der Arbeitsspeicherleistung um bis zu 12,5% (siehe VORSICHT 13) Hardware Monitor - CPU-Temperatursensor - Motherboardtemperaturerkennung - Drehzahlmessung für CPU-Lüfter - Drehzahlmessung für Gehäuselüfter - CPU-Lüftergeräuschdämpfung - Spannungsüberwachung: +12V, +5V, +3.3V, Vcore Betriebssysteme - Unterstützt Microsoft...
  • Seite 49 Vista 64-Bit / Vista / XP 64-Bit / XP SP1 oder SP2 einwandfrei. Es ist ein benutzerfreundlicher ASRock Übertaktenswerkzeug, das erlaubt, dass Sie Ihr System durch den Hardware-Monitor Funktion zu überblicken und Ihre Hardware-Geräte übertakten, um die beste Systemleistung unter der Windows ®...
  • Seite 50: Sicherheitshinweise Vor Der Montage

    13. Dieses Motherboard unterstützt die ASRock AM2 Boost Übertaktungstechnologie. Wenn Sie diese Funktion im BIOS-Setup aktivieren, wird die Arbeitsspeicherleistung um bis zu 12,5% gesteigert. Die Wirkung hängt aber von der verwendeten AM2 CPU ab. Diese Funktion übertaktet die Standardfrequenz des Chipsatz und der CPU.
  • Seite 51: Installation Des Cpu-Lüfters Und Des Kühlkörpers

    Kontakt zueinander haben. Verbinden Sie dann den CPU- Lüfter mit dem CPU-LÜFTER-Anschluss (CPU_FAN1, siehe Seite 2, Nr. 6). Beziehen Sie sich für eine richtige Installation auf die Handbücher des CPU- Lüfters und des Kühlkörpers. ASRock A780LM Motherboard...
  • Seite 52: Installation Der Speichermodule (Dimm)

    2.3 Installation der Speichermodule (DIMM) 2.3 Installation der Speichermodule (DIMM) 2.3 Installation der Speichermodule (DIMM) Das A780LM Motherboard bietet zwei 240polige DDR2 (Double Data Rate 2) DIMM- Steckplätze und unterstützt Zweikanal-Speichertechnologie. Es müssen immer zwei identische Speichermodule (selbe Marke, Geschwindigkeit, Größe und Chip-Art) in den DDR2 DIMM-Steckplätzen installiert werden, um die Zweikanal-...
  • Seite 53: Erweiterungssteckplätze (Pci-Steckplätze Und Pci Express Express -Steckplätze) -Steckplätze)

    Express -Steckplätze) -Steckplätze) -Steckplätze) -Steckplätze) -Steckplätze) Es gibt einen 2 PCI-Steckplätze und 2 PCI Express-Steckplätze am A780LM Motherboard. PCI-Slots: PCI-Slots werden zur Installation von Erweiterungskarten mit dem 32bit PCI-Interface genutzt. PCI Express-Slots: PCIE1 (PCIE x1-Steckplatz; grün) wird für PCI Express- Grafikkarten mit x1-Busbreite verwendet wie Gigabit LAN- Karten, SATA2-Karten, usw.
  • Seite 54: Einstellung Der Jumper

    CMOS gelöscht wurde. Bitte vergessen Sie nicht, den Jumper wieder zu entfernen, nachdem das CMOS gelöscht wurde. Wenn Sie den CMOS- Inhalt gleich nach dem Aktualisieren des BIOS löschen müssen, müssen Sie zuerst das System starten und dann wieder ausschalten, bevor Sie den CMOS-Inhalt löschen. ASRock A780LM Motherboard...
  • Seite 55: Anschlüsse

    (PORT 0) (PORT 1) (PORT 2) (SATAII_6 (PORT5): siehe S.2, No. 10) Serial ATA- (SATA-) Sie können beide Enden des Datenkabel SATA-Datenkabels entweder mit der SATA / SATAII- (Option) Festplatte oder dem SATAII- Anschluss am Mainboard verbinden. ASRock A780LM Motherboard...
  • Seite 56 Sende- (5-pin IR1) und Empfangs-Infrarotmodul. (siehe S.2 - No. 25) Interne Audio-Anschlüsse Diese ermöglichen Ihnen Stereo- Signalquellen, wie z. B. CD-ROM, (4-Pin CD1) DVD-ROM, TV-Tuner oder (CD1: siehe S.2, No. 28) MPEG-Karten mit Ihrem System zu verbinden. ASRock A780LM Motherboard...
  • Seite 57 ® Für Betriebssystem Windows Vista / Vista 64-Bit: Rufen Sie die Registerkarte “Front Mic” (Vorderes Mikr.) im Realtek- Bedienfeld auf. Klicken Sie auf “Set Default Device” (Standardgerät einstellen), um das vorderseitige Mikrofon als Standard- Aufnahmegerät zu übernehmen. ASRock A780LM Motherboard...
  • Seite 58 Obwohl dieses Motherboard einen 24-pol. ATX-Stromanschluss bietet, kann es auch mit einem modifizierten traditionellen 20-pol. ATX-Netzteil verwendet werden. Um ein 20-pol. ATX-Netzteil zu verwenden, stecken Sie den Stecker mit Pin 1 und Pin 13 ein. Installation eines 20-pol. ATX-Netzteils ASRock A780LM Motherboard...
  • Seite 59: Installation Von Windows Vista

    XP / XP 64-Bit ohne RAID ® F F F F Funktionen unktionen unktionen unktionen unktionen zteils Wenn Sie Windows ® XP / Windows ® XP 64-Bit ohne RAID-Funktionalität auf Ihren SATA / SATAII-Festplatten installieren, gehen Sie bitte wie folgt vor. ASRock A780LM Motherboard...
  • Seite 60: Installation Von Windows

    [AHCI]. SCHRITT 2: Erstellen Sie eine SATA / SATAII-Treiberdiskette. Legen Sie die ASRock Support-CD in Ihr optisches Laufwerk, um Ihr System hochzufahren. (Legen Sie zu diesem Zeitpunkt KEINE Diskette in das Diskettenlaufwerk ein!) (Es gibt die zwei ASRock Unterstützungs-CDs in dem ®...
  • Seite 61: Entkoppelte Übertaktungstechnologie Entkoppelte Übertaktungstechnologie (Untied Overclocking T (Untied Overclocking Technology) (Untied Overclocking T Echnology)

    64-Bit Betriebssystem auf Ihrem System zu installieren. Wenn die Frage “Wo möchten Sie Windows installieren?” erscheint, legen Sie bitte die ASRock Support CD in Ihr optisches Laufwerk ein. Klicken Sie anschließend die “Treiber laden”-Schaltfläche links unten, um die AMD AHCI-Treiber zu installieren. Die AMD AHCI-Treiber befinden sich in dem folgenden Verzeichnis auf der Support CD: (Es gibt die zwei ASRock Unterstützungs-CDs in dem...
  • Seite 62 EXE im BIN-Verzeichnis der Support-CD, um die Menüs aufzurufen. Das Setup- Programm soll es Ihnen so leicht wie möglich machen. Es ist menügesteuert, d.h. Sie können in den verschiedenen Untermenüs Ihre Auswahl treffen und die Programme werden dann automatisch installiert. ASRock A780LM Motherboard...
  • Seite 63: Contenu Du Paquet

    1. Introduction 1. Introduction Merci pour votre achat d’une carte mère ASRock A780LM une carte mère très fiable produite selon les critères de qualité rigoureux de ASRock. Elle offre des performances excellentes et une conception robuste conformément à l’engagement d’ASRock sur la qualité...
  • Seite 64 - Supporter 1080p Blu-ray(BD)/ lecteur de HD-DVD (voir ATTENTION 6) ® Audio - 5.1 Son haute définition de première qualité CH Windows Vista (codec audio ALC662) - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111DL - Support du Wake-On-LAN ASRock A780LM Motherboard...
  • Seite 65 - CPU, DRAM, NB, SB Tension Multi-ajustement - Prise en charge du Smart BIOS CD d’assistance - Pilotes, utilitaires, logiciel anti-virus (Version d’essai) Caractéristique - Tuner ASRock OC (voir ATTENTION 9) unique - Économiseur d’énergie intelligent (voir ATTENTION 10) - l'Instant Boot - L’accélérateur hybride: - Contrôle direct de la fréquence CPU (voir ATTENTION 11)
  • Seite 66 - Garde d’échec au démarrage (B.F.G.) - ASRock AM2 Boost: Technologie brevetée par ASRock pour augmenter les performances mémoire jusqu’à 12,5% (voir ATTENTION 13) Surveillance - Détection de la température de l’UC système - Mesure de température de la carte mère - Tachéomètre ventilateur CPU...
  • Seite 67 64-bit/ Vista / XP 64-bit / XP SP1; SP2. Il s’agit d’un usage facile ASRock overclocking outil qui vous permet de surveiller votre système en fonction de la monitrice de matériel et overclocker vos périphériques de matériels pour obtenir les meilleures performances du système sous environnement...
  • Seite 68 5. Lorsque vous placez les vis dans les orifices pour vis pour fixer la carte mère sur le châssis, ne serrez pas trop les vis ! Vous risquez sinon d’endommager la carte mère. ASRock A780LM Motherboard...
  • Seite 69 Ensuite, connectez le ventilateur du CPU à la prise du VENTILATEUR DU CPU (CPU_FAN1, reportez-vous en page 2, No. 6). Pour une bonne installation, veuillez vous référer aux manuels d’instruction sur le ventilateur du CPU et le dissipateur. ASRock A780LM Motherboard...
  • Seite 70 2.3 Installation des modules mémoire (DIMM) 2.3 Installation des modules mémoire (DIMM) La carte mère A780LM possède deux emplacements DIMM DDR2 (Double Débit de données 2) 240 broches, et prend en charge la technologie Dual Channel Memory. Pour la configuration Double canal, vous devez toujours installer deux modules de mémoire identiques (mêmes marque, vitesse, dimensions et type de chip) dans les...
  • Seite 71 Slot d’extension (Slots PCI et Slots PCI Express) Slot d’extension (Slots PCI et Slots PCI Express) Il y a 2 ports PCI et 2 ports PCI Express sur la carte mère A780LM. Slots PCI: Les slots PCI sont utilisés pour installer des cartes d’extension dotées d’une interface PCI 32 bits.
  • Seite 72 BIOS à jour. Si vous avez besoin d’effacer la CMOS lorsque vous avez fini de mettre le BIOS à jour, vous devez d’abord initialiser le système, puis le mettre hors tension avant de procéder à l’opération d’effacement de la CMOS. ASRock A780LM Motherboard...
  • Seite 73 10) Câble de données L’une des deux extrémités du Série ATA (SATA) câble de données SATA peut être connectée au disque dur (en option) SATA / SATAIIou au connecteur SATAII sur la carte mère. ASRock A780LM Motherboard...
  • Seite 74 (LPT1 25 broches) permet le raccordement (voir p.2 No. 26) pratique de périphériques d’impression. En-tête du module infrarouge Cet en-tête supporte un module infrarouge optionnel de (IR1 br.5) transfert et de réception sans (voir p.2 No. 25) fil. ASRock A780LM Motherboard...
  • Seite 75 Veuillez sélectionner “Front Mic” ( Mic. Avant) comme le dispositif d’enregistrement par défaut. Si vous voulez entendre votre voix à travers le mic. avant veuillez désactiver l’icône «Silence» dans “Front Mic” ( Mic. Avant) de la portion “Playback” (Lecture). ASRock A780LM Motherboard...
  • Seite 76 CPU sur cette carte mère, veuillez le connecter aux broches 1-3. Installation de ventilateur à 3 broches Broches 1-3 connectées Connecteur d’alimentation ATX Veuillez connecter une unité d’alimentation ATX sur ce (ATXPWR1 br. 24) connecteur. (voir p.2 fig. 7) ASRock A780LM Motherboard...
  • Seite 77 SATA / SATAII avec les fonctions RAID, veuillez vous référer au document de l’étape suivante sur le CD de support pour connaître la procédure détaillée: ..\ RAID Installation Guide (Guide d’installation RAID) ASRock A780LM Motherboard...
  • Seite 78 B. Réglez l’option “SATA Operation Mode”« Mode de fonctionnement SATA » sur [IDE]. ® ETAPE 2: Installer le système d’exploitation Windows Vista / Vista 64-bit sur votre système. Utilisation des disques durs SATA / SATAII avec NCQ et les fonctions de connexion à chaud ASRock A780LM Motherboard...
  • Seite 79 à gauche pour charger les pilotes AHCI AMD. Les pilotes AHCI AMD sont sous le chemin suivant du CD Support: (IL y a deux ASRock Support CD dans le paquet de boite de cadeau de la carte mere, veuilliez selectionner un pour Windows ®...
  • Seite 80 CD-ROM. Le Menu principal s’affiche automatiquement si “AUTORUN” est activé dans votre ordinateur. Si le Menu principal n’apparaît pas automatiquement, localisez dans le CD technique le fichier “ASSETUP.EXE” dans le dossier BIN et double-cliquez dessus pour afficher les menus. ASRock A780LM Motherboard...
  • Seite 81 1. Introduzione Grazie per aver scelto una scheda madre ASRock A780LM, una scheda madre affidabile prodotta secondo i severi criteri di qualità ASRock. Le prestazioni eccellenti e il design robusto si conformano all’impegno di ASRock nella ricerca della qualità e della resistenza.
  • Seite 82 - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111DL - Supporta Wake-On-LAN Pannello I/O Panel posteriore I/O - 1 x Porta PS/2 per mouse - 1 x Porta PS/2 per tastiera - 1 x Porta VGA/D-Sub ASRock A780LM Motherboard...
  • Seite 83 - Stepless control per frequenza del processore (vedi ATTENZIONE 11) - ASRock U-COP (vedi ATTENZIONE 12) - Boot Failure Guard (B.F.G.) - ASRock AM2 Boost: Tecnologia brevettata ASRock per migliorare le prestazioni della memoria fino al 12,5% (vedi ATTENZIONE 13) ASRock...
  • Seite 84 / Vista 64 bit Certificazioni - FCC, CE, WHQL * Per ulteriori informazioni, prego visitare il nostro sito internet: http://www.asrock.com AVVISO Si prega di prendere atto che la procedura di overclocking implica dei rischi, come anche la regolazione delle impostazioni del BIOS, l’applicazione della tecnologia Untied Overclocking Technology, oppure l’uso di strumenti di overclocking forniti da terzi.
  • Seite 85 64-bit / Vista / XP 64 bit / XP SP1; SP2. Si tratta di uno strumento di sicronizzazione ASRock di face uso in grado di implementare il controllo del sistema tramite la funzione di hardware monitor e sincronizzare le Vostre unita‘ hardware per ottenere la migliore ®...
  • Seite 86 5. Nell’usare i giraviti per fissare la scheda madre al telaio non serrare eccessivamente le viti! Altrimenti si rischia di danneggiare la scheda madre. ASRock A780LM Motherboard...
  • Seite 87 Quindi collegare la ventolina CPU al connettore CPU FAN (CPU_FAN1, fare riferimento a pagina 2, Numero 6). Per eseguire un’installazione appropriata, fare riferimento al manuale d’istruzioni della ventolina CPU e del dispersore di calore. ASRock A780LM Motherboard...
  • Seite 88 2.3 Installazione dei moduli di memoria (DIMM) 2.3 Installazione dei moduli di memoria (DIMM) La motherboard A780LM dispone di due slot DIMM DDR2 (Double Data Rate 2) a 240 pin e supporta la tecnologia Dual Channel Memory. Per attivare la configurazione Dual Channel Memory bisogna installare sempre due moduli di memoria identici (stessa marca, velocità, dimensioni e tipo di chip) negli slot DIMM.
  • Seite 89 Slot di espansione (Slot PCI ed Slot PCI Express) Slot di espansione (Slot PCI ed Slot PCI Express) Sulla scheda madre A780LM c’è 2 slot PCI ed 2 slot PCI Express. Slot PCI: Sono utilizzati per installare schede di espansione con Interfaccia PCI a 32-bit.
  • Seite 90 Non cancellare la CMOS subito dopo aver aggiornato il BIOS. Se è necessario cancellare la CMOS una volta completato l’aggiornamento del BIOS, è necessario riavviare prima il sistema, e poi spegnerlo prima di procedere alla cancellazione della CMOS. ASRock A780LM Motherboard...
  • Seite 91 Nr. 11) (SATAII_6 (PORT5): vedi p.2 Nr. 10) Cavi dati Serial ATA (SATA) Entrambe le estremità del cavo dati SATA possono collegarsi (Opzionale) all’hard disk SATA / SATAII o al connettore SATAII sulla scheda madre. ASRock A780LM Motherboard...
  • Seite 92 (vedi p.2 Nr. 25) ricezione senza fili. Connettori audio interni Permettono di ricevere input stereo audio da fonti di (4-pin CD1) suono come CD-ROM, DVD - (CD1: vedi p.2 item 28) ROM,TV tuner, o schede MPEG. ASRock A780LM Motherboard...
  • Seite 93 Per il sistema operative Windows Vista / Vista 64-bit: Andare alla scheda “Microfono anteriore” nel pannello di controllo d i Realtek. Fare clic su “Imposta dispositivo predefinito” per impostare il microfono anteriore come dispositivo predefinito per la registrazione. ASRock A780LM Motherboard...
  • Seite 94 ATX a 24 pin, ma può funzionare lo stesso se si adotta un alimentatore ATX a 20 pin. Per usare l’alimentatore ATX a 20 pin, collegare l’alimentatore con il Pin 1 e il Pin 13. Installazione dell’alimentatore ATX a 20 pin ASRock A780LM Motherboard...
  • Seite 95 RAID funzioni RAID funzioni RAID funzioni RAID funzioni RAID Se si desidera installare Windows ® XP / Windows ® XP 64 bit sui dischi rigidi SATA / SATAII senza funzioni RAID, seguire le istruzioni in basso. ASRock A780LM Motherboard...
  • Seite 96 [AHCI]. 2° PASSO: Creare un dischetto driver SATA / SATAII. Inserire il CD di supporto ASRock nel lettore ottico prima di accendere il sistema. (NON inserire nessun dischetto floppy nel drive in questo momento!) (Vi sono due CD di supporto ASRock nella confezione della scheda madre, prego selezionare quello adatto per Windows ®...
  • Seite 97 Windows?” (Dove si vuole eseguire l’istallazione di Windows), inserire il CD di supporto ASRock nell’unità ottica e fare clic sul pulsante “Carica driver” , in basso a sinistra, per caricare i driver AMD AHCI. I driver AMD AHCI si trova sul seguente...
  • Seite 98 Inserire il CD di supporto nel lettore CD-ROM. Se la funzione “AUTORUN” è attivata nel computer, apparirà automaticamente il Menù principale. Se il Menù principale non appare automaticamente, posizionarsi sul file ASSETUP.EXE nel CESTINO del CD di supporto e cliccare due volte per visualizzare i menù. ASRock A780LM Motherboard...
  • Seite 99 1. Introducción 1. Introducción Gracias por su compra de ASRock A780LM placa madre, una placa de confianza producida bajo el control de calidad estricto y persistente. La placa madre provee realización excelente con un diseño robusto conforme al compromiso de calidad y resistencia de ASRock.
  • Seite 100 - Soporta Wake-On-LAN Entrada/Salida I/O Panel de Panel - 1 x puerto de ratón PS/2 Trasero - 1 x puerto de teclado PS/2 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 ASRock A780LM Motherboard...
  • Seite 101 - Compatible con Smart BIOS CD de soport - Controladores, Utilerías, Software de Anti Virus (Versión de prueba) Característica - Sintonizador de ASRock OC (vea ATENCIÓN 9) Única - Administrador de energía inteligente (vea ATENCIÓN 10) - Instant Boot - Amplificador Híbrido: - Stepless control de frecuencia de CPU (vea ATENCIÓN 11)
  • Seite 102 - ASRock AM2 Boost: tecnología patentada de ASRock que permite mejorar el rendimiento de la memoria hasta en un 12,5% (vea ATENCIÓN 13) Monitor Hardware - Sensibilidad a la temperatura del procesador - Sensibilidad a la temperatura de la placa madre - Taquímetros de los ventiladores del procesador y del...
  • Seite 103 64 bits / Vista / XP 64 bits / XP SP1; SP2. Es una herramienta de overclocking de ASRock de usuario-fácil que le permite a supervisar su sistema por la función de monitor de hardware y overclock sus dispositivos de hardware para obtener el mejor ®...
  • Seite 104 13. Esta placa base admite la tecnología ASRock AM2 Boost para aumento de la velocidad del reloj. Si habilita esta función en la configuración del BIOS, el rendimiento de la memoria mejorará hasta en un 12,5%, pero seguirá dependiendo del procesador AM2 que adopte. Al activar esta función, la velocidad del reloj de referencia del conjunto de chips y del...
  • Seite 105 Página 2, N. 6). Para realizar la instalación correctamente, consulte el manual de instrucciones del ventilador de la CPU y el radiador. 1 0 5 1 0 5 1 0 5 1 0 5 1 0 5 ASRock A780LM Motherboard...
  • Seite 106 2.3 Instalación de Memoria 2.3 Instalación de Memoria La placa base A780LM proporciona dos ranuras DIMM DDR2 (Double Data Rate 2, es decir, Tasa doble de datos) de 240 contactos y es compatible con la Tecnología de memoria de canal dual. Para la configuración de canal dual, siempre es necesario instalar dos módulos de memoria idénticos (la misma marca, velocidad, tamaño y tipo...
  • Seite 107 Express) Express) Express) Express) La placa madre A780LM cuenta con 2 ranuras PCI y 2 ranuras PCI Express. Ranura PCI: Para instalar tarjetas de expansión que tienen 32-bit Interface PCI. Ranura PCI Express: PCIE1 (ranura PCIE x1, verde) se utiliza para tarjetas PCI Express con tarjetas gráficas con una anchura de 1...
  • Seite 108 CMOS cuando acabe de finalizar la actualización de la BIOS, debe arrancar primero el sistema y, a continuación, apagarlo antes de realizar la acción de borrado de CMOS. 1 0 8 1 0 8 1 0 8 1 0 8 1 0 8 ASRock A780LM Motherboard...
  • Seite 109 Ambos extremos del cable serie ATA (SATA) pueden conectarse al disco duro SATA / SATAII o la (Opcional) conexión de la placa base. 1 0 9 1 0 9 1 0 9 1 0 9 1 0 9 ASRock A780LM Motherboard...
  • Seite 110 Permite recepción de input audio de fuente sónica como (4-pin CD1) CD-ROM, DVD-ROM, TV tuner, (CD1: vea p.2, No. 28) o tarjeta MPEG. 1 1 0 1 1 0 1 1 0 1 1 0 1 1 0 ASRock A780LM Motherboard...
  • Seite 111 Vaya a la ficha «Micrófono central» en el panel Control de Realtek. Haga clic en «Establecer dispositivo predeterminado» para convertir el micrófono central en el dispositivo de grabación predeterminado. 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 ASRock A780LM Motherboard...
  • Seite 112 Para usar una fuente de alimentación ATX de 20 pins, por favor, conecte su fuente de alimentación usando los Pins 1 y 13. Instalación de una Fuente de Alimentación ATX de 20 Pins 1 1 2 1 1 2 1 1 2 1 1 2 1 1 2 ASRock A780LM Motherboard...
  • Seite 113 Si desea instalar Windows XP / XP 64 bits en sus HDDs SATA / SATAII sin funciones RAID, por favor siga los pasos siguientes. 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 ASRock A780LM Motherboard...
  • Seite 114 SATA) en [AHCI]. PASO 2: Haga un Disquete de Controlador SATA / SATAII. Inserte el CD de soporte de ASRock en la unidad óptica de la unidad para iniciar el sistema. (NO inserte ningún disquete en la unidad de disco en este momento) (Hay dos CD del Apoyo de ASRock en el paquete de la caja del ®...
  • Seite 115 AHCI de AMD se encuentran en la siguiente ruta de nuestro CD de soporte: (Hay dos CD del Apoyo de ASRock en el paquete de la caja del regalo de la placa base, por favor elige uno para Windows ®...
  • Seite 116 Menú Principal automáticamente si «AUTORUN» está habilitado en su computadora. Si el Menú Principal no aparece automáticamente, localice y doble-pulse en el archivo ASSETUP.EXE para iniciar la instalación. 1 1 6 1 1 6 1 1 6 1 1 6 1 1 6 ASRock A780LM Motherboard...
  • Seite 117 Gratos por comprar nossa placa–mãe A780LM, um produto confiável feito com ASRock um estrito controle de qualidade consistente. Com um excelente desempenho, essa placa é dotada de um projeto robusto que atende a ASRock de compromisso com a qualidade e durabilidade.
  • Seite 118: Especificações

    - Suporta Wake-On-LAN Entrada/Saída I/O Panel pelo painel - 1 x porta para mouse PS/2 traseiro - 1 x porta para teclado PS/2 1 3 6 1 3 6 1 3 6 1 3 6 1 3 6 ASRock A780LM Motherboard...
  • Seite 119 - Suporte para Smart BIOS CD de suporte - Controladores, utilitários, software antivírus (Experimentacao Versao) Funcionalidade - Sintonizador ASRock OC (veja o AVISO 9) Única - Poupança de Energia Inteligente (veja o AVISO 10) - Instant Boot - Booster híbrido: - Frequência da CPU com controle contínuo...
  • Seite 120 - ASRock AM2 Boost: Tecnologia patenteada da ASRock para melhorar o desempenho da memória até 12,5% (veja o AVISO 13) Monitor do HW - Sensores de temperature do procesador - Medição de temperatura da placa-mãe - Tacômetros de ventilador do Processador - Tacômetros de ventilador do chassis...
  • Seite 121 / XP de 64 bits / XP SP1; SP2. É uma ferramenta de overclocking da ASRock fácil de utilizar que lhe permite vigiar i seu sistema via a função de monitorização de hardware e proceder ao overclock dos dispositivos de hardware para ®...
  • Seite 122: Instalação

    5. Ao instalar parafusos nos furos para fixar a placa-mãe ao chassi, não os aperte excessivamente para não danificar a placa-mãe. 1 4 0 1 4 0 1 4 0 1 4 0 1 4 0 ASRock A780LM Motherboard...
  • Seite 123 E depois ligue o ventilador de CPU e o ligador de CPU_FAN (CPU_FAN1, veja p.2 No.6). Para a instalação apropriada, Refera ao manual da instrução de CPU ventilador e heatsink. 1 4 1 1 4 1 1 4 1 1 4 1 1 4 1 ASRock A780LM Motherboard...
  • Seite 124 2.3 Instalação dos Módulos de Memória (DIMM) 2.3 Instalação dos Módulos de Memória (DIMM) A placa-mãe A780LM possui dois slots DIMM DDR2 (taxa de dados dupla) de 240 pinos e suporta a tecnologia de memória de duplo canal. Para a configuração de duplo canal, instale sempre dos módulos de memória idênticos (mesma marca,...
  • Seite 125 2.4 Slots de Expansão (Slots de PCI e PCI Express) 2.4 Slots de Expansão (Slots de PCI e PCI Express) Há 2 slots de PCI e 2 slots de PCI Express na placa–mãe do A780LM. Slots PCI: Os slots PCI se usam para instalar placas de expansão com uma interface de PCI de 32 bit.
  • Seite 126 CMOS ao concluir a atualização do BIOS, deverá reiniciar o sistema primeiro e, em seguida, desligá-lo antes de executar a ação de limpeza o CMOS. 1 4 4 1 4 4 1 4 4 1 4 4 1 4 4 ASRock A780LM Motherboard...
  • Seite 127 Tanto a saída do cabo de Serial ATA (SATA) dados SATA pode ser conectado ao disco rígido (opcional) SATA / SATAII quanto o conector SATAII na placa mãe. 1 4 5 1 4 5 1 4 5 1 4 5 1 4 5 ASRock A780LM Motherboard...
  • Seite 128 Suporte de Detecção Automática de Este suporte suporta a função de Periféricos DeskExpress detecção automática de Periféricos para ASRock (IR1 de 5 pinos) DeskExpress. (veja a folha 2, No. 25) 1 4 6 1 4 6...
  • Seite 129 Se quer ouvir a sua voz através do microfone frontal, queira desmarcar o ícone “Mute” (Sem som) em “Front Mic” (Microfone Frontal) da parte “Playback” (Reprodução). 1 4 7 1 4 7 1 4 7 1 4 7 1 4 7 ASRock A780LM Motherboard...
  • Seite 130 Conector de força do ATX Ligue a fonte de alimentação ATX neste conector. (ATXPWR1 de 24 pinos) (veja a folha 2, No. 7) 1 4 8 1 4 8 1 4 8 1 4 8 1 4 8 ASRock A780LM Motherboard...
  • Seite 131 Discos Rígidos SATA / SATAII com funções RAID, por favor consulte o documento no seguinte caminho do CD de Suporte para os procedimentos detalhados: ..\ RAID Installation Guide 1 4 9 1 4 9 1 4 9 1 4 9 1 4 9 ASRock A780LM Motherboard...
  • Seite 132 Use SATA / SATAII HDDs com NCQ e Hot Plug funções ETAPA 1: Aceda à BIOS. Vá até BIOS SETUP UTILITY Advanced screen Configuration (Utilitário de configuração da BIOS - Ecrã avançado 1 5 0 1 5 0 1 5 0 1 5 0 1 5 0 ASRock A780LM Motherboard...
  • Seite 133 AHCI da AMD. Os controladores AHCI da AMD encontram-se nos seguintes caminhos no CD de suporte: (Há dois ASRock Suporta CD no pacote de caixa de presente de tábua maderna, escolha um de Windows ®...
  • Seite 134 “AUTORUN” esteja ativado. Se o menu principal não aparecer automaticamente, ex- plore o CD e execute o “ASSETUP.EXE” localizado na pasta “BIN”. 1 5 2 1 5 2 1 5 2 1 5 2 1 5 2 ASRock A780LM Motherboard...
  • Seite 135 1 5 3 1 5 3 1 5 3 1 5 3 1 5 3 ASRock A780LM Motherboard...
  • Seite 136 ‘ ’ ® 1 5 4 1 5 4 1 5 4 1 5 4 1 5 4 ASRock A780LM Motherboard...
  • Seite 137 1 5 5 1 5 5 1 5 5 1 5 5 1 5 5 ASRock A780LM Motherboard...
  • Seite 138 ® “ ” ® ® ® ® “ ” “ ” 1 5 6 1 5 6 1 5 6 1 5 6 1 5 6 ASRock A780LM Motherboard...
  • Seite 139 ® 1 5 7 1 5 7 1 5 7 1 5 7 1 5 7 ASRock A780LM Motherboard...
  • Seite 140 1 5 8 1 5 8 1 5 8 1 5 8 1 5 8 ASRock A780LM Motherboard...
  • Seite 141 1 5 9 1 5 9 1 5 9 1 5 9 1 5 9 ASRock A780LM Motherboard...
  • Seite 142 1 6 0 1 6 0 1 6 0 1 6 0 1 6 0 ASRock A780LM Motherboard...
  • Seite 143 1 6 1 1 6 1 1 6 1 1 6 1 1 6 1 ASRock A780LM Motherboard...
  • Seite 144 “ ” “ ” “ ” “ ” 1 6 2 1 6 2 1 6 2 1 6 2 1 6 2 ASRock A780LM Motherboard...
  • Seite 145 SATAII_4 SATAII_5 SATAII_6 (PORT 3) (PORT 4) (PORT 5) SATAII_1 SATAII_2 SATAII_3 (PORT 0) (PORT 1) (PORT 2) 1 6 3 1 6 3 1 6 3 1 6 3 1 6 3 ASRock A780LM Motherboard...
  • Seite 146 1 6 4 1 6 4 1 6 4 1 6 4 1 6 4 ASRock A780LM Motherboard...
  • Seite 147 ® ® ® ® “ ” “ ” “ ” “ ” ® “ ” “ ” 4 3 2 1 1 6 5 1 6 5 1 6 5 1 6 5 1 6 5 ASRock A780LM Motherboard...
  • Seite 148 ® ® 1 6 6 1 6 6 1 6 6 1 6 6 1 6 6 ASRock A780LM Motherboard...
  • Seite 149 ® ® ® ® ® ® ® ® ® ® ® 1 6 7 1 6 7 1 6 7 1 6 7 1 6 7 ASRock A780LM Motherboard...
  • Seite 150 ® ® ® ® ® ® ® ® 1 6 8 1 6 8 1 6 8 1 6 8 1 6 8 ASRock A780LM Motherboard...
  • Seite 151 “ ” “ ” “ ” 1 6 9 1 6 9 1 6 9 1 6 9 1 6 9 ASRock A780LM Motherboard...
  • Seite 152 1 7 0 1 7 0 1 7 0 1 7 0 1 7 0 ASRock A780LM Motherboard...
  • Seite 153 ‘ ’ ® 1 7 1 1 7 1 1 7 1 1 7 1 1 7 1 ASRock A780LM Motherboard...
  • Seite 154 1 7 2 1 7 2 1 7 2 1 7 2 1 7 2 ASRock A780LM Motherboard...
  • Seite 155 ® ® ® “ ” ® ® ® ® 1 7 3 1 7 3 1 7 3 1 7 3 1 7 3 ASRock A780LM Motherboard...
  • Seite 156 ® ® ® 1 7 4 1 7 4 1 7 4 1 7 4 1 7 4 ASRock A780LM Motherboard...
  • Seite 157 1 7 5 1 7 5 1 7 5 1 7 5 1 7 5 ASRock A780LM Motherboard...
  • Seite 158 1 7 6 1 7 6 1 7 6 1 7 6 1 7 6 ASRock A780LM Motherboard...
  • Seite 159 1 7 7 1 7 7 1 7 7 1 7 7 1 7 7 ASRock A780LM Motherboard...
  • Seite 160 1 7 8 1 7 8 1 7 8 1 7 8 1 7 8 ASRock A780LM Motherboard...
  • Seite 161 1 7 9 1 7 9 1 7 9 1 7 9 1 7 9 ASRock A780LM Motherboard...
  • Seite 162 SATAII_4 SATAII_5 SATAII_6 (PORT 3) (PORT 4) (PORT 5) SATAII_1 SATAII_2 SATAII_3 (PORT 0) (PORT 1) (PORT 2) 1 8 0 1 8 0 1 8 0 1 8 0 1 8 0 ASRock A780LM Motherboard...
  • Seite 163 1 8 1 1 8 1 1 8 1 1 8 1 1 8 1 ASRock A780LM Motherboard...
  • Seite 164 ® ® ® ® ® 1 8 2 1 8 2 1 8 2 1 8 2 1 8 2 ASRock A780LM Motherboard...
  • Seite 165 4 3 2 1 1 8 3 1 8 3 1 8 3 1 8 3 1 8 3 ASRock A780LM Motherboard...
  • Seite 166 ® ® ® ® ® ® ® 1 8 4 1 8 4 1 8 4 1 8 4 1 8 4 ASRock A780LM Motherboard...
  • Seite 167 ® ® ® ® 1 8 5 1 8 5 1 8 5 1 8 5 1 8 5 ASRock A780LM Motherboard...
  • Seite 168 ® ® ® ® ® ® ® 1 8 6 1 8 6 1 8 6 1 8 6 1 8 6 ASRock A780LM Motherboard...
  • Seite 169 ® ® 1 8 7 1 8 7 1 8 7 1 8 7 1 8 7 ASRock A780LM Motherboard...

Inhaltsverzeichnis
