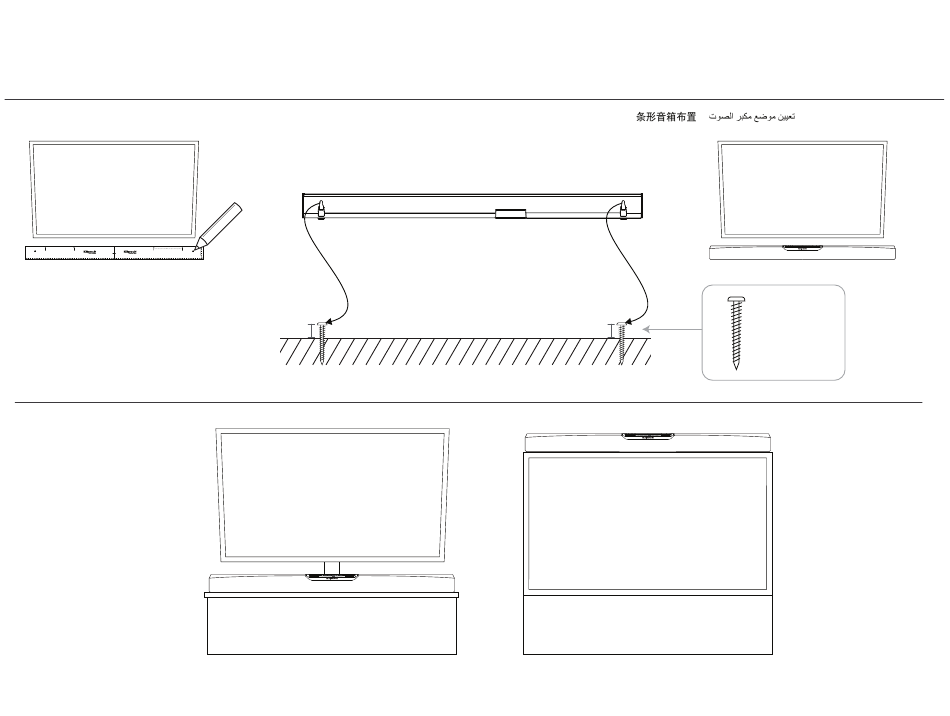

SOUND BAR PLACEMENT
POSITIONNEMENT DE LA BARRE DE SON • UBICACIÓN DE LA BARRA DE SONIDO • SOUNDBAR-PLATZIERUNG • COLLOCAZIONE DEL SOUNDBAR • POSIÇÃO DA BARRA SONORA •
TV
MAKE SURE TEMPLATE IS LEVEL BEFORE DRILLING PILOT HOLES!
Leave at least 1" (25.4mm) of space above speaker
RSB-3 RSB-3
Pilot CENTER OF BAR
WALL MOUNT TEMPLATE WALL MOUNT TEMPLATE
Hole
SPEAKER WILL REST 3/8" (9.5mm) DOWN FROM WHERE HOLES ARE DRILLED
Total width 36" (914.4mm)
5
Pilot
Hole
.25" (6.35mm)
TV
ANALOG DIGITAL SUR DIALOG
•
.25" (6.35mm)
ANALOG DIGITAL SUR DIALOG
TV
TV
ANALOG DIGITAL SUR DIALOG
No 12 PAN HEAD/
M6 PAN HEAD
x2
