Numark AXIS 8 Kurzanleitung Seite 2

1. Make sure all items listed on the front of
this guide were in the box.
2. READ SAFETY INSTRUCTION BOOKLET
BEFORE USING THE PRODUCT.

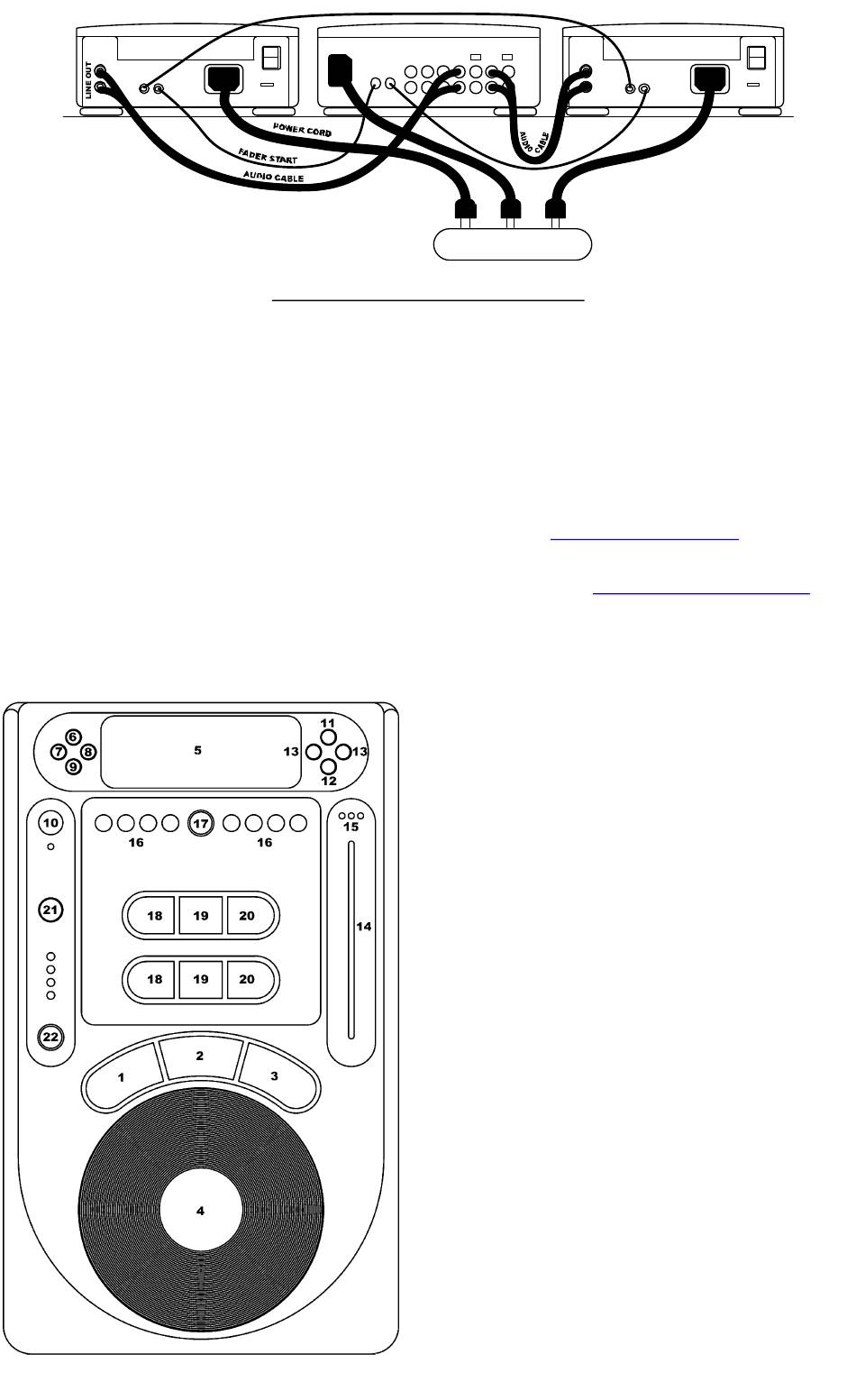

3. Study this setup diagram.
4. Place mixer in an appropriate position for
operation.
5. Make sure all devices are turned off and all
faders and gain knobs are set to "zero"
6. Connect all stereo input sources as
indicated in the diagram, your microphone,
and headphones
7. Connect the stereo outputs to power
amplifier(s), tape decks, and/or other audio
sources.
CD PLAYER
CD PLAYER QUICK SETUP (ENGLISH)
RELAY CABLE
MIXER
LINE LINE
IN IN
POWER SUPPLY
8. Plug all devices into AC power.
9. Switch everything on in the following order.
• audio input sources (i.e. turntables or
CD players)
• mixer
• last, any amplifiers or output devices
10. When turning off, always reverse this
operation by,
• turning off amplifiers
• mixer
• last, any input devices
11. Go to http://www.numark.com
registration.
More information about this product may be
found at
FEATURES:
1. PLAY/STUTTER- To start the music from the
initial cue point.
2. PAUSE- To pause the music.
3. CUE- To move the music to the cue point
and preview the selection.
4. JOG WHEEL-
a. INNER WHEEL- Used for various
functions such as cueing, scratching,
pitch bend, searching, and effect
control
b. OUTER PITCH WHEEL (AXIS 9) - Used
for temporary pitch bend.
5. LCD DISPLAY- Indicates all the functions,
as they are occurring, with the CD.
6. OPEN/CLOSE- Pressing will open or close
the disc tray on the transport.
7. SGL- To set play mode in single or
continuous play.
8. TIME- Controls display indication of time
mode.
9. PROGRAM- Used for setting track order and
various specia l commands.
10. TRACK SELECT/SEARCH-
a. Rotation – selects tracks
b. Pressing while rotating – selects
tracks +10
c. Pressing once- Puts wheel in search
mode.
11. PITCH- Actives and sets pitch slider range.
CD PLAYER
LINE OUT
http://www.numark.com
for product
