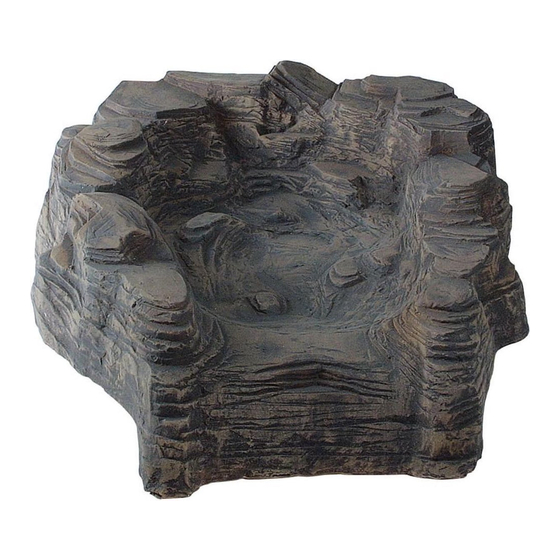

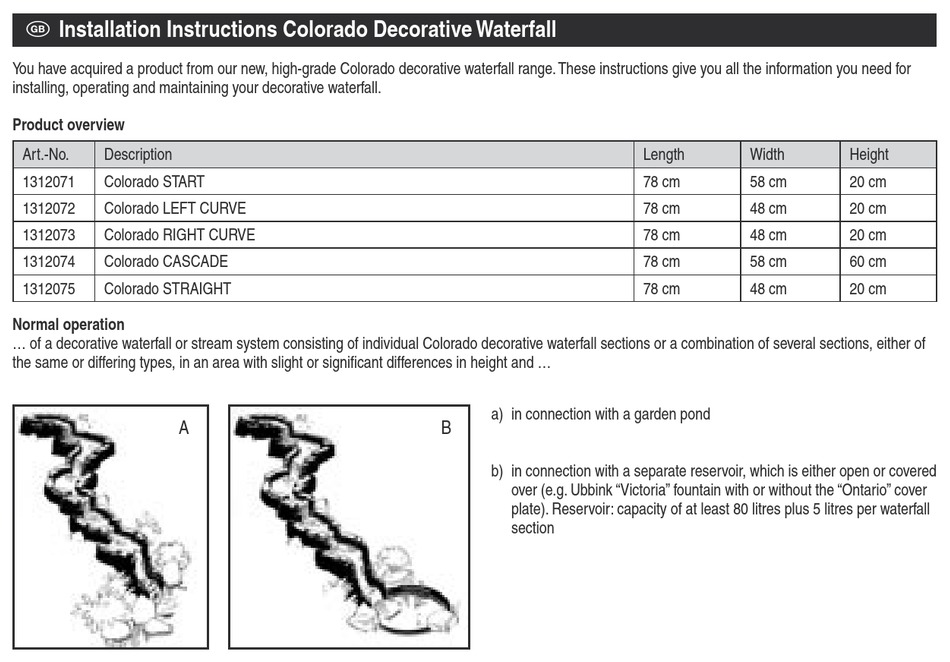

1 Installation Instructions Colorado Decorative Waterfall
You have acquired a product from our new, high-grade Colorado decorative waterfall range. These instructions give you all the information you need for
installing, operating and maintaining your decorative waterfall.
Product overview
Art.-No. Description
1312071 Colorado START
1312072 Colorado LEFT CURVE
1312073 Colorado RIGHT CURVE
1312074 Colorado CASCADE
1312075 Colorado STRAIGHT
Normal operation
... of a decorative waterfall or stream system consisting of individual Colorado decorative waterfall sections or a combination of several sections, either of
the same or differing types, in an area with slight or significant differences in height and ...
A
a) in connection with a garden pond
B
b) in connection with a separate reservoir, which is either open or covered
over (e.g. Ubbink "Victoria" fountain with or without the "Ontario" cover
plate). Reservoir: capacity of at least 80 litres plus 5 litres per waterfall
section
Length Width
78 cm 58 cm
78 cm 48 cm
78 cm 48 cm
78 cm 58 cm
78 cm 48 cm
Height
20 cm
20 cm
20 cm
60 cm
20 cm
