Technical Data; Technical Information - PROLUMIA ROCKDISC III Gebrauchsanleitung

ATTENTION
Please read the following instructions carefully to ensure that mounting operation will be carried out correctly. These instructions
should be properly preserved for future reference.
CAUTION
1. The product must be installed by qualified technicians. The power supply must be cut before installation.
2. The installation wiring must be 3 x 1.0 - 2.5 mm² and wired in accordance with the latest IEE electrical regulations
or the national requirements. (Recommend type of cable is H05RN-F)
3. Do not touch the LEDs while installing or maintaining.
4. This product contains a light source of energy efficiency class E.

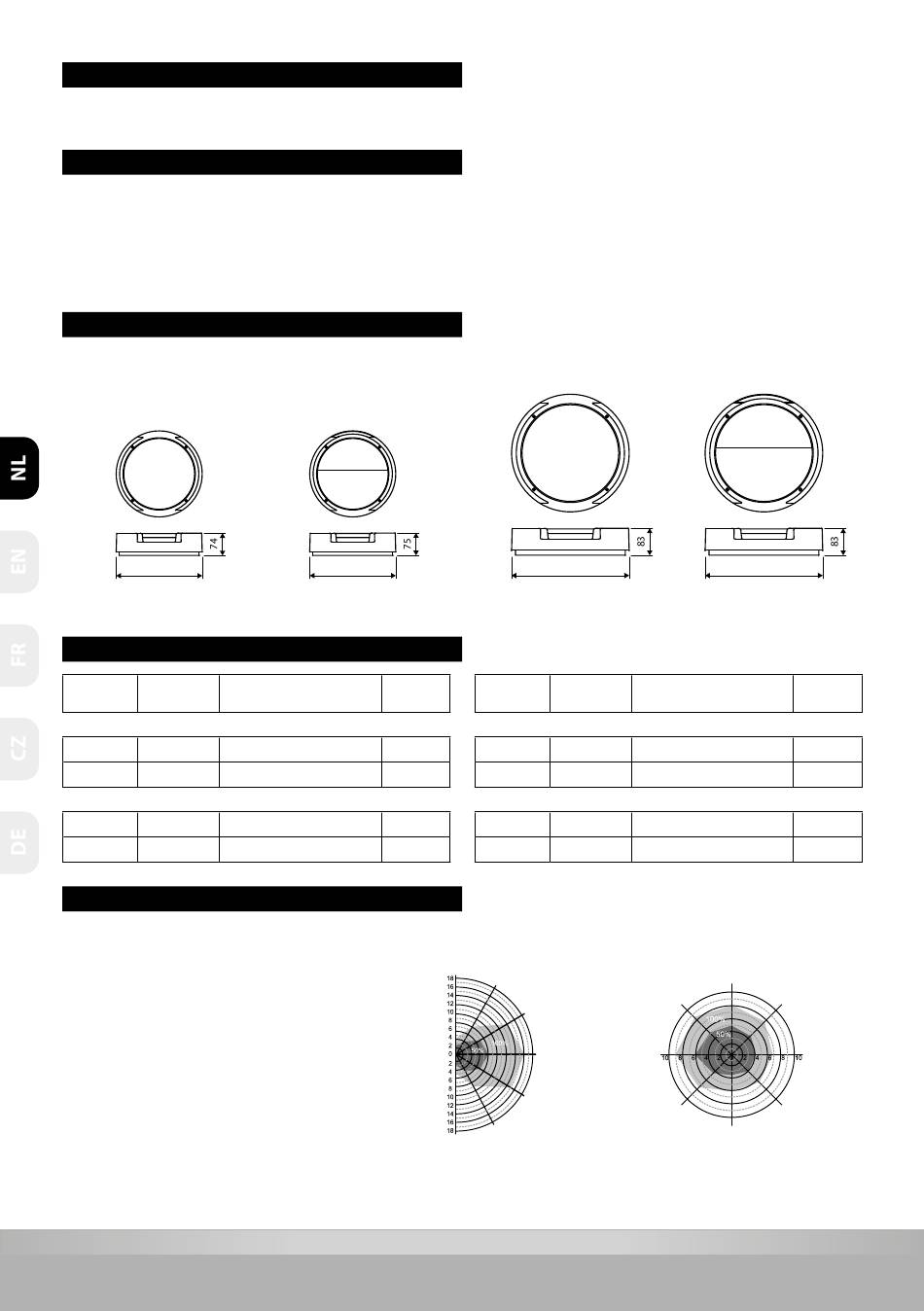

TECHNICAL DATA

Supply voltage: AC 220-240V 50/60Hz
Light source: LED SMD2835
Operating temperature: -25°C – +50°C (Sensor version: -25°C – +40°C)
Electrical safety class: Class I
270
Rockdisc III Mini

TECHNICAL INFORMATION

Article no. Power Light output
Rockdisc III Mini
40009060 9W 800Lm / 400Lm
40009061 10,5W 800Lm / 400Lm
Rockdisc III Mini Semi shielded
40009062 9W 650Lm / 330Lm
40009063 10,5W 650Lm / 330Lm
MICROWAVE SENSOR - DESCRIPTION
Detection zone max. (d x h): 12m x 6m
Detection sensitivity: 50% or 100%, adjustable
Hold time: 5sec - 10min, adjustable
Daylight on: 5 - 50Lux, adjustable or disabled
Daylight off: 25 - 150Lux, adjustable or disabled
Stand-by period (low light level): 0 sec - +∞ min,
adjustable
Stand-by dim level: 10% or 25%, adjustable
Ceiling mounting height: 6m max.
Motion detection (threshold): 0.3 ~ 3m/s
Detection angle: 150° (wall installation),
360° (ceiling installation)
10
270
Rockdisc III Mini
Semi shielded
MW
sensor
Rockdisc III
-
Yes
Rockdisc III Semi shielded
-
Yes
Wall mounting detection area (m)
Suggested installation height: 2m
Walking speed: 0.3m/s
www.prolumia.com
340
Rockdisc III
Article no. Power Light output
40009070 23W 2000Lm / 1300Lm / 900Lm
40009071 24W 2000Lm / 1300Lm / 900Lm
40009075 23W 1600Lm / 1000Lm / 700Lm
40009076 24W 1600Lm / 1000Lm / 700Lm
Ceiling mounting detection area (m)
Suggested installation height: 3m
340
Rockdisc III
Semi shielded
MW
sensor
-
Yes
-
Yes
Walking speed: 0.3m/s
