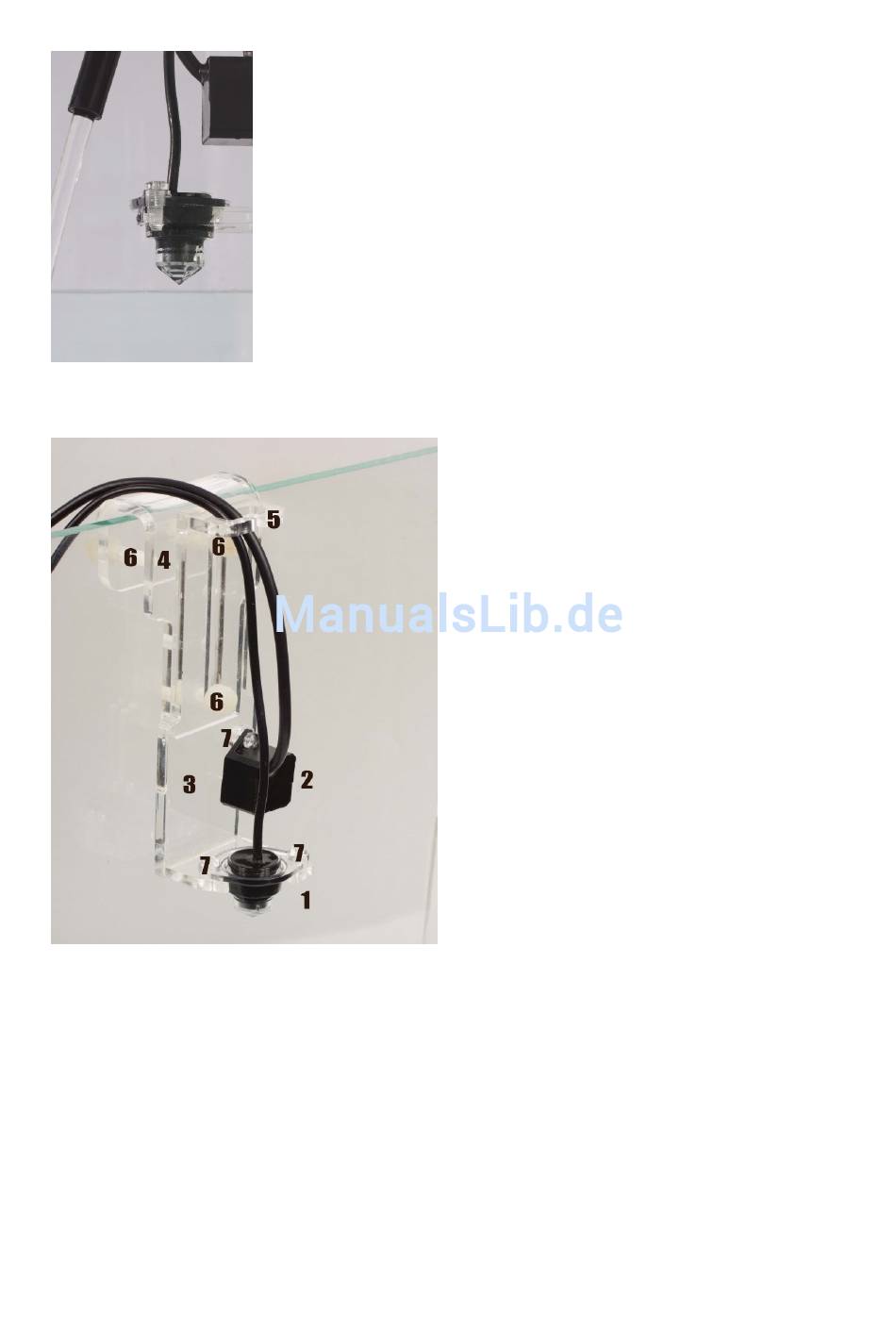

Pict. 5: The refill hose has to be attached above the water level. If immersed, water could flow
from the filter tank into the reservoir or vice versa until both water levels are equal.
Pict. 6: Mounting of the sensors N1 and N2 by using the supplied holder.
1. Infrared sensor N1
2. Overflow protection sensor N2
3. Sensor holder lower part
4. Sensor holder upper part
5. Cable holder
6. Fixing screws for the holder
7. Fixing screws for the sensors
Available spare parts: Please refer to www.aqua-medic.de.
