Inhaltszusammenfassung für Schulte Alexa Style 2.0 10527825
Seite 1

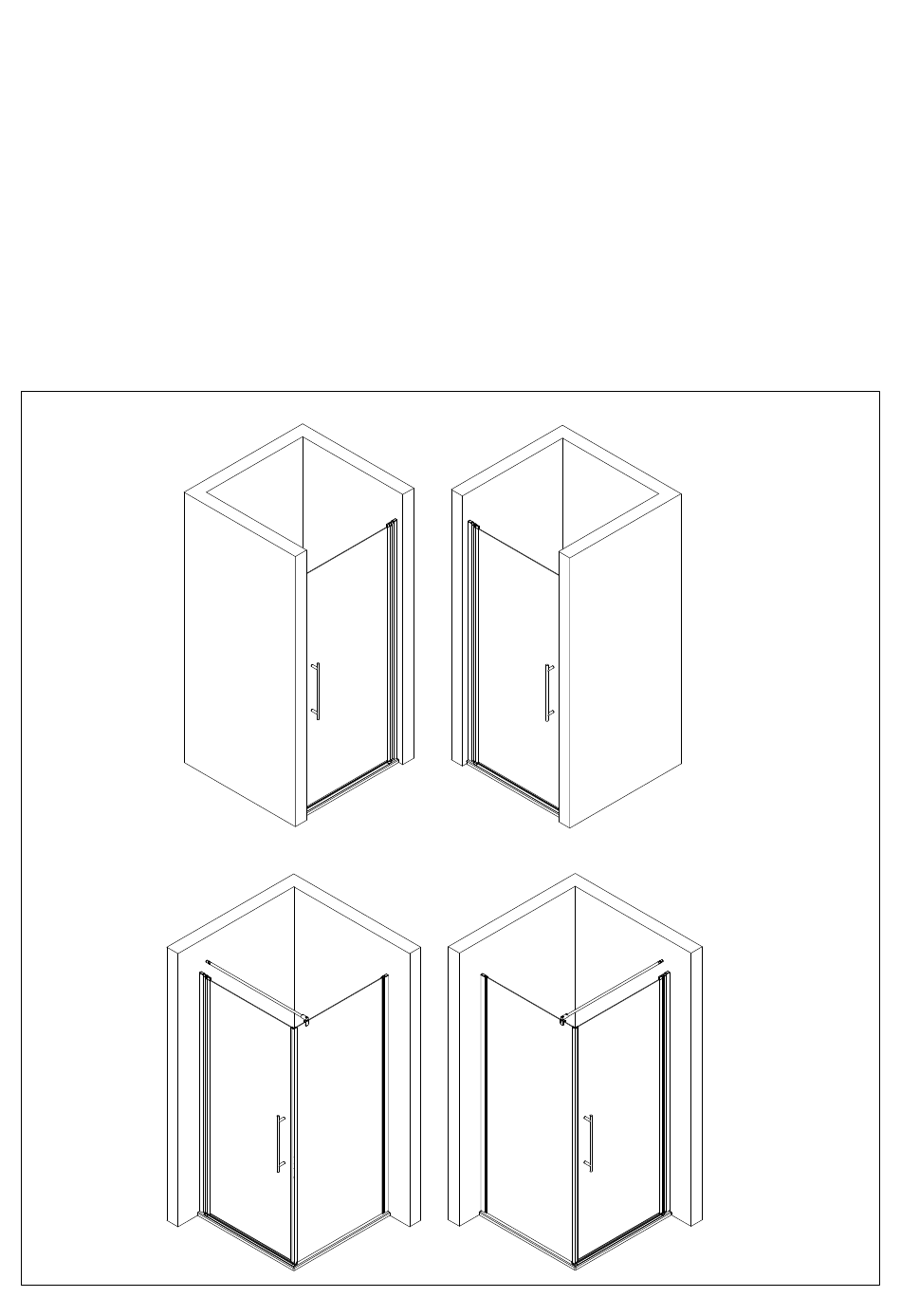

1720-5 07/21 D597818 - Montageanleitung D597819 - Assembly instructions D321001 D597820 D597821 D321008 - Notice de montage D597831 D321004 D321006 D599810 - Montagehandleiding D321099 D599812 D599811 D321504 - Návod na montáž 1409100 D599813 D321506 - Instructiune de montaj 1409500 D323004 D599814 1409080 D323006...
Seite 2
1720-5 16.1# 16.2# 16.3# Pos. Bezeichnung Ersatzteil-Nr. Preis Pos. Bezeichnung Ersatzteil-Nr. Preis 1 x Wandanschlußprofil E100230-4 Stück 41,95 € 1 x Griff komplett 1 x Türelement 16.1# 1 x Knopfgriff E100140-24 Stück 32,95 € 2 x Magnetprofil 45° E100055-180-5 39,95 € 16.2# 1 x Stangengriff E100140-26...
Seite 3
Ø 6 Ø 3 Ø 5 800 mm 778 - 804 mm 900 mm 878 - 904 mm Ø 5 mm Pos. 1 Pos. 1...
Seite 4
Ø 6 mm Pos. 28 Pos. 3 Pos. 4 5 mm Pos. 57...
Seite 5
Pos. 6 Pos. 5 Pos. 4.1...
Seite 6
Pos. 4.1 + 5 Pos. 6 Pos. 6 Ø 5 mm Pos. 6...
Seite 7
Pos. 8 Pos. 6 Ø 6 mm Pos. 7...
Seite 9
Ø 3 mm Ø 3 mm Pos. 10 Pos. 10 Pos. 9 Pos. 9...
Seite 10
Pos.16# # optional, en option, optioneel Option 1 Option 2 Pos. 11 Pos. 11 Pos. 12# Pos. 17# Pos. 11 Pos. 12# Pos. 11 + 12 # optional, en option, optioneel...
Seite 11
Pos. 17# Pos. 42# Pos. 22# # optional, en option, optioneel 24 h...
Seite 12
24 h...
Seite 13
Pos. 14 Pos. 15...
Seite 14
1720-5 07/21 - Montageanleitung - Assembly instructions - Notice de montage - Montagehandleiding - Návod na montáž - Instructiune de montaj - Navodila za namestitev - Installationstruktioner...
Seite 15
1720-5 16.1# 16.2# 16.3# Pos. Bezeichnung Ersatzteil-Nr. Preis Pos. Bezeichnung Ersatzteil-Nr. Preis 1 x Wandanschlußprofil E100230-4 Stück 41,95 € 1 x Wasserleiste E100050 Stück 30,00 € 1 x Wandanschlußprofil E100230-1-S Stück 54,95 € 1 x Wasserleistenendkappe E100211-23 9,95 € (kürzer) 1 x Seitenwand Stück 1 x Silikonkeil...
Seite 16
Ø 6 Ø 3 Ø 5 800 mm 785 - 803 mm 787 - 805 mm 900 mm 885 - 903 mm 887 - 905 mm Ø 5 mm Pos. 1...
Seite 17
Ø 5 mm Pos. 1.1 Ø 6 mm...
Seite 18
Pos. 8 Pos. 7 Pos. 1.1 Pos. 1 Pos. 28 Pos. 3 5 mm Pos. 57 Pos. 4...
Seite 19
Pos. 4 Pos. 2 Pos. 20...
Seite 20
Ø 3 mm Pos. 10 Pos. 10 Pos. 9 Pos. 9...
Seite 21
Pos. 21 Pos.16# # optional, en option, optioneel Option 2 Option 1 Pos. 11 Pos. 11 Pos. 12# Pos. 17# Pos. 11 Pos. 12# Pos. 11+12 # optional, en option, optioneel...
Seite 22
Pos. 17# Pos. 42# Pos. 22# Pos. 19# # optional, en option, optioneel 24 h...
Seite 23
24 h Pos. 14 Pos. 14 Pos. 23...
Seite 24
1720-5 Kontrollbeleg Control Receipt Justificatif de contrôle Controle-attest Prüfnummer/ Inspection number / Numéro d´essai / Controlenummer...
