LevelOne WAP-6121 Schnellinstallationsanleitung Seite 3

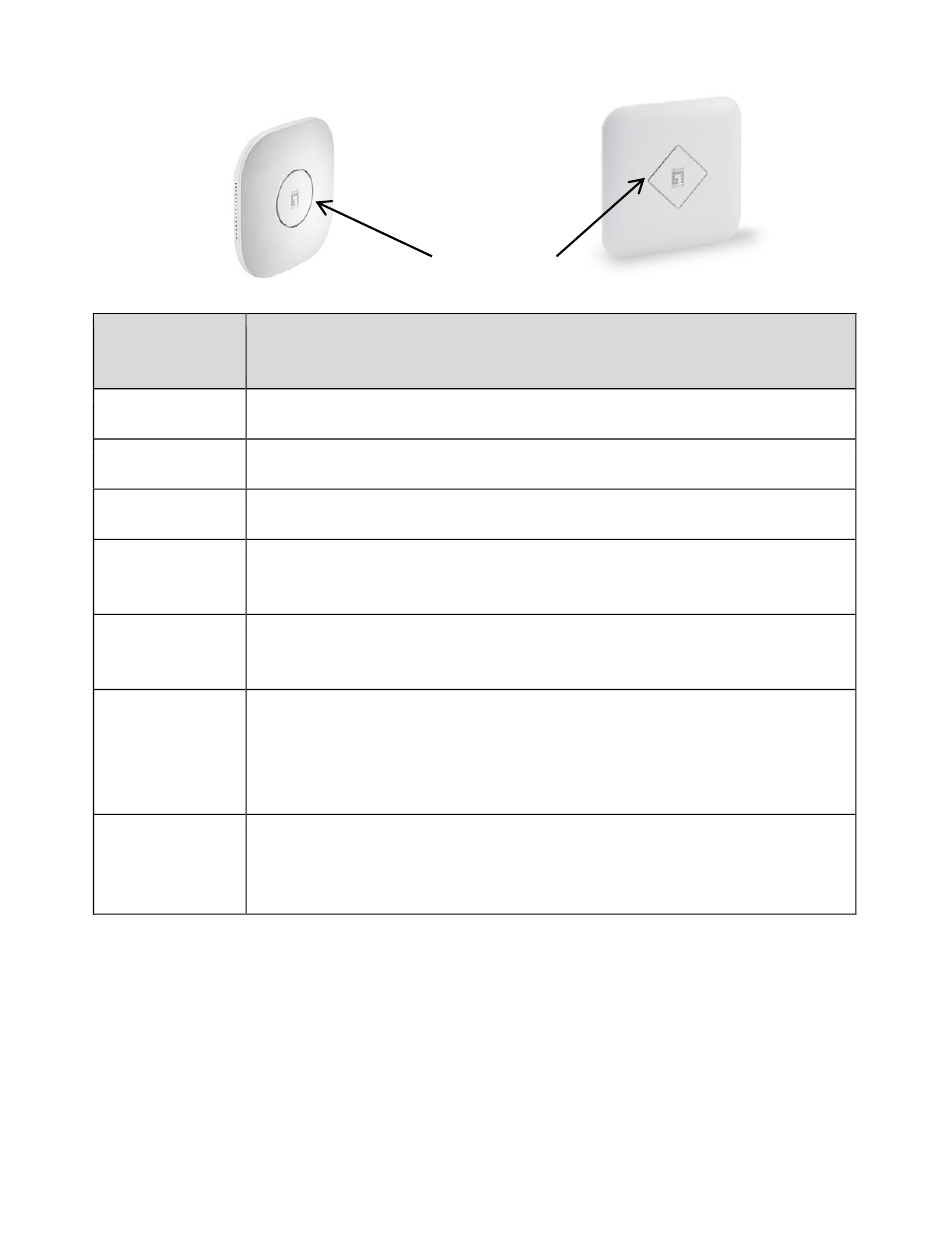

Figure 3
LED/Button/ Description
Interface
Power Port To power the device by DC
WAN LED The LED blinks when LAN cable is in
LAN LED The LED blinks when WAN cable is in
The LAN port is used to connect to network devices, such as
LAN port
a switch.
WAN/POE The WAN/POE port is used to connect to network devices,
port such as a switch and get power from Ethernet
With the AP powered on, press the Reset button for 10
Reset seconds until the SYS LED blink faster with green light and
Button blue light alternatively. The AP will restart itself and reset the
device to factory default settings.
Green light means it is being powered. Blue light means it is
SYS LED working normally. When it has more users, the blue light will
blink faster.
