CAUTION
Make sure power supply breaker is switched off.
Check that the electrical supply corresponds to that shown on the rating plate. If the unit is connected
to any electrical supply other than stated on the rating plate of the unit, permanent damage or unsafe
operation of the unit may result.
2. Positioning

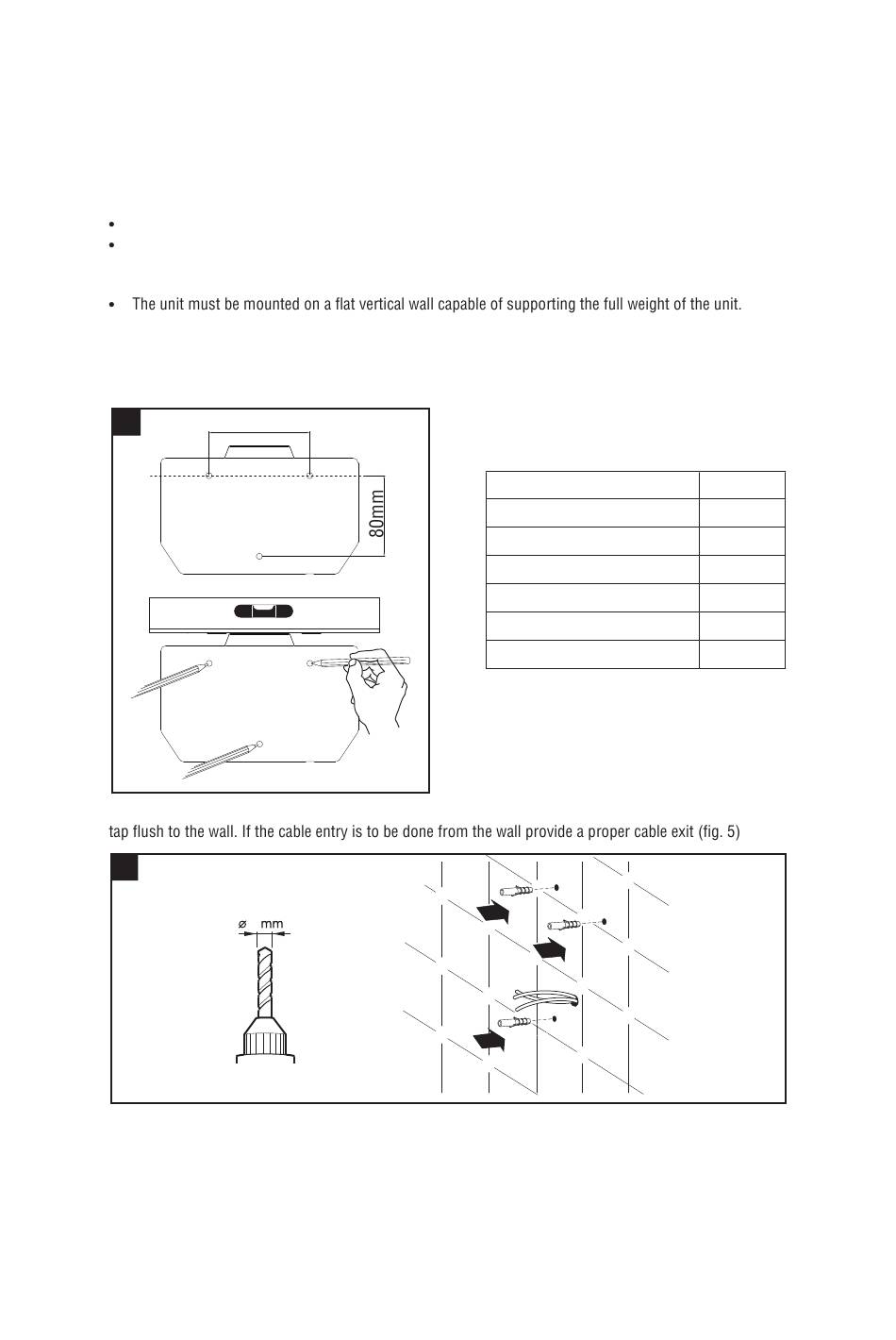

2.1 Mark the location on the wall with a pencil. Use the Installation Template to mark the locations for the
three fixing points (fig. 4).
4
100mm
2.2 Pre-drill the wall in the marked locations using 5/16" (8mm) drill, insert the plastic anchors and
5
8
Recommended height measurements form the
floor to top screws
Installation target
Adult male
Adult female
Children 5-8 years old
Children 8-11 years old
Children 11-14 years old
Wheelchair user
EN
Height
1400mm
1365mm
1028mm
1128mm
1208mm
1150mm
5
