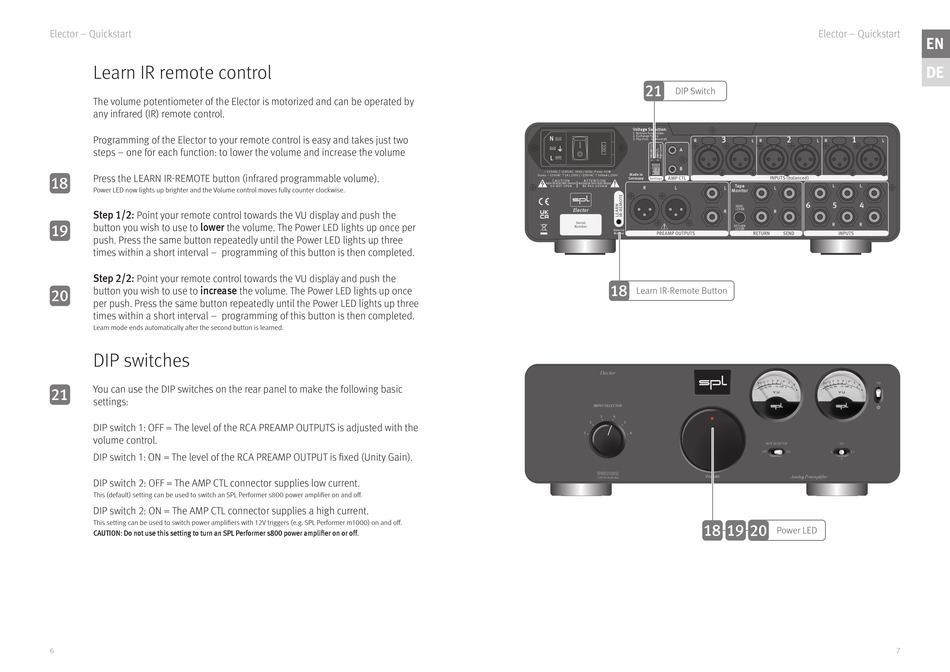

Elector – Quickstart
Learn IR remote control
The volume potentiometer of the Elector is motorized and can be operated by
any infrared (IR) remote control.
Programming of the Elector to your remote control is easy and takes just two
steps – one for each function: to lower the volume and increase the volume
Press the LEARN IR-REMOTE button (infrared programmable volume).
18
Power LED now lights up brighter and the Volume control moves fully counter clockwise.
Step 1/2:
Point your remote control towards the VU display and push the
lower
19
button you wish to use to
the volume. The Power LED lights up once per
push. Press the same button repeatedly until the Power LED lights up three
times within a short interval – programming of this button is then completed.
Step 2/2:
Point your remote control towards the VU display and push the
increase
button you wish to use to
20
per push. Press the same button repeatedly until the Power LED lights up three
times within a short interval – programming of this button is then completed.
Learn mode ends automatically after the second button is learned.
DIP switches
You can use the DIP switches on the rear panel to make the following basic
21
settings:
DIP switch 1: OFF = The level of the RCA PREAMP OUTPUTS is adjusted with the
volume control.
DIP switch 1: ON = The level of the RCA PREAMP OUTPUT is fixed (Unity Gain).
DIP switch 2: OFF = The AMP CTL connector supplies low current.
This (default) setting can be used to switch an SPL Performer s800 power amplifier on and off.
DIP switch 2: ON = The AMP CTL connector supplies a high current.
This setting can be used to switch power amplifiers with 12V triggers (e.g. SPL Performer m1000) on and off.
CAUTION: Do not use this setting to turn an SPL Performer s800 power amplifier on or off.
6
the volume. The Power LED lights up once
21
DIP Switch
Voltage Selection:
1. Remove Fuse Holder
2. Exchange Fuses
3. Flip Over 4. Reinstall
R
A
B
~ 115V AC / ~230V AC, 50 Hz / 60 Hz, P max. 45 W
Made in
Fuses: ~ 115V AC: T 1A L 250V / ~230V AC: T 500mA L 250V
Germany
C A U T I O N
AT T E N T I O N
RISQUE DE CHOC ÉLECTRIQUE
RISK OF ELECTRIC SHOCK
D O N O T O P E N
N E P A S O U V R I R
R
L
Elector
Refer to
Manual
18
Learn IR-Remote Button
Elector
INPUT SELECTOR
3
4
2
5
1
6
VOLTAiR
120V DC Audio Rail
18
Elector – Quickstart
3
2
1
L
R
L
R
L
L
L
L
Tape
L
L
Monitor
6
5
4
SEND
–10dB
R
R
R
R
RETURN
+10dB
ON
TAPE MONITOR
VU
Off
On
6
12
0
Analog Preamplifier
19
20
Power LED
7
