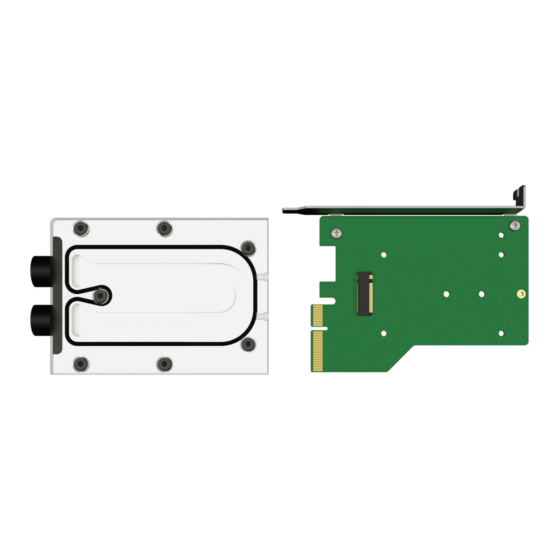

- Seite 1 All manuals and user guides at all-guides.com HDX - 3 Scope of delivery - Lieferumfang - Contenue de livraison 60x 1 8x 1 mm 60x 1 8x 1 mm thermal pads 3x M3x5 4x M3x6 4x washers...
- Seite 2 Cooler mounting - Kühlermontage - Montage du refroidisseur All manuals and user guides at all-guides.com 1. Set the M2 SSD adapter card onto an anti-static mat. Place one thermal pad, like shown, in front of the M2 socket. Choose between an 1mm pad for M2 SSDs with components on both sides and a 1,5mm pad for M2 SSDs with an empty side.
- Seite 3 Cooler mounting - Kühlermontage - Montage du refroidisseur All manuals and user guides at all-guides.com components only on one side 1,5mm components on both sides M3x5 M3x5 M3x5...
- Seite 4 Cooler mounting - Kühlermontage - Montage du refroidisseur All manuals and user guides at all-guides.com 4. Turn the adapter card and place the four washers as pictured. 5. The block is fastened with four M3x6 screws. Carefully tighten the screws crosswise. 4.
