18815 Laptop holder
- for K&M-Keyboard Stands 18810, 18950 & 18953
- Position highly adjustable:
-
- Height - Direction - Distance - Angle
- Laptop connectors are easily accessible
-
thanks to the adjustable holding pins
- Holder dimensions Height 240 mm x Width 356 mm
Thank you for choosing this product. The instructions provide directions to
all of the important set up and handling steps. We recommend you keep
these instructions for future reference.
SAFETY NOTES
- Only for laptops and manuscripts
- Ensure that the screws are in the proper
-
position and tightened.
- Clamp prism 10 may only be installed with the
-
slits facing downwards.
- Set the angle of the holder mount by clicking it
-
into the struts.
- Holding pins 15 are to be placed so that the
-
laptop is secure.
- Only for K&M Keyboard Stands
-
18810, 18950 & 18953
SET UP INSTRUCTIONS

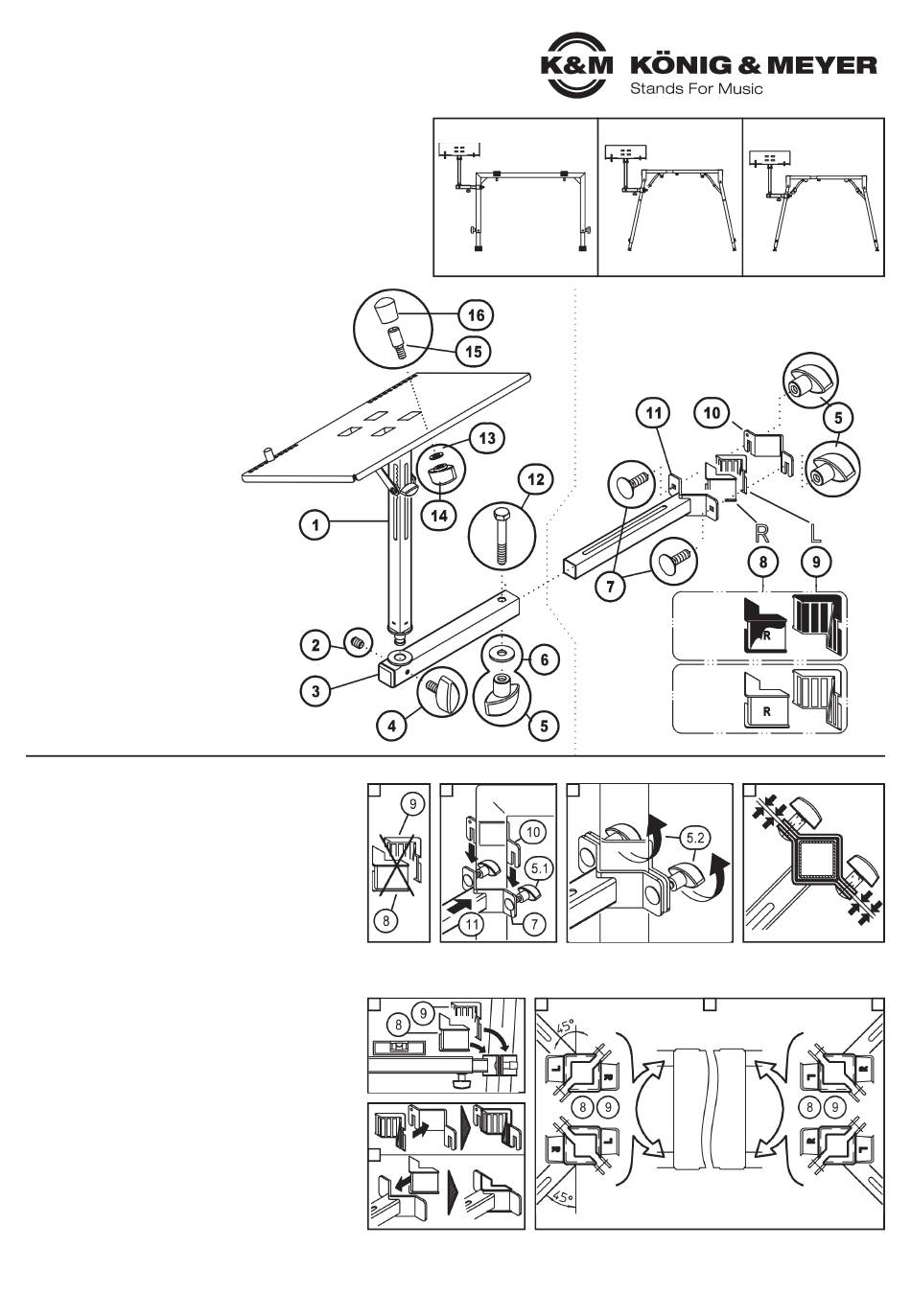

COMPONENTS
11 Laptop holder
12 Threaded pin M6 x 8 mm
13 Adjustable tube
14 Clamp screw M6 x 20 mm
15 3 x Clamp nuts M6 large
16 Washer ø 6,4 mm
17 2 x Carriage bolts M6 x 20 mm
18 R-Prism (right - 1 x black, 1 x gray)
19 L-Prism (left - 1 x black, 1 x gray)
10 Clamp prism with slit
11 Extension tube with prisma
12 Hexagon socket screw M6 x 40 mm
13 2 x Washer ø 5,3 mm
14 2 x Clamp nuts M5 small
15 2 x Pin bolts M5
16 2 x Caps
ASSEMBLY
A. Mount to the K&M-Stand 18810 »Omega«
1 R-Prism 8 and L-Prism 9 are not needed:
1
place them aside.
2 The laptop holder can be mounted to any of the side
2
tubes.
3 Place the carriage bolts M6 x 20 mm 7 through the
3
hexagon holes of the extension tube 11 and screw on the
3
clamp nuts 5.1. Hold the bracket of the extension tube
3
11 to the »Omega« stand tube and loosen the clamp
3
bracket 10 and place it over the screw.
3
Tighten the clamping nuts 5.2.
4 The clamp space between the tightened brackets should
4
be approx. the same size.
B. Mount to K&M-Stands 18950 & 18953
1 R-Prism 8 and L-Prism 9 are needed to mount the
1
laptop holder in the horizontal position on the oblique feet
1
of the stands.
1
Note: The models 18950 / 18953-000-55 require the
1
black, 18950 / 18953-017-55 the gray prisms.
2 The extension tube of the holder can be mounted to each
2
of the 4 legs and the angle can be 45° towards the front
2
or the back.
3 As such there are eight different laptop holder positions.
4 NOTE: the prisms 8, 9 cannot be used in contradiction to
4
the instructions, rather they must be positioned according
4
to the instructions. See Fig. 2-3-4.
5 Both prisms (select the proper positions) are clipped to
5
the respective bracket.
6 Screw the holder to the leg: See A.3 above
6
The steps are repeated only with prisms 8, 9 to balance
6
the angled legs.
All manuals and user guides at all-guides.com
1
2
1
5
K&M 18810
Table-style
Table-style
keyboard stand
keyboard stand
18950-000-55
»Omega«
18953-000-55
3
2
Kiesweg 2, 97877 Wertheim, www.k-m.de
18815-000-55 Rev.20 03-80-301-00 3/17
K&M
K&M
Table-style
keyboard stand
18950-017-55
18953-017-55
black for
18950-000-55
and
18953-000-55
gray for
18950-017-55
and
18953-017-55
4
3
KÖNIG & MEYER GmbH & Co. KG
