SAT Fibre Headend OTX 1310 and OTX 1550

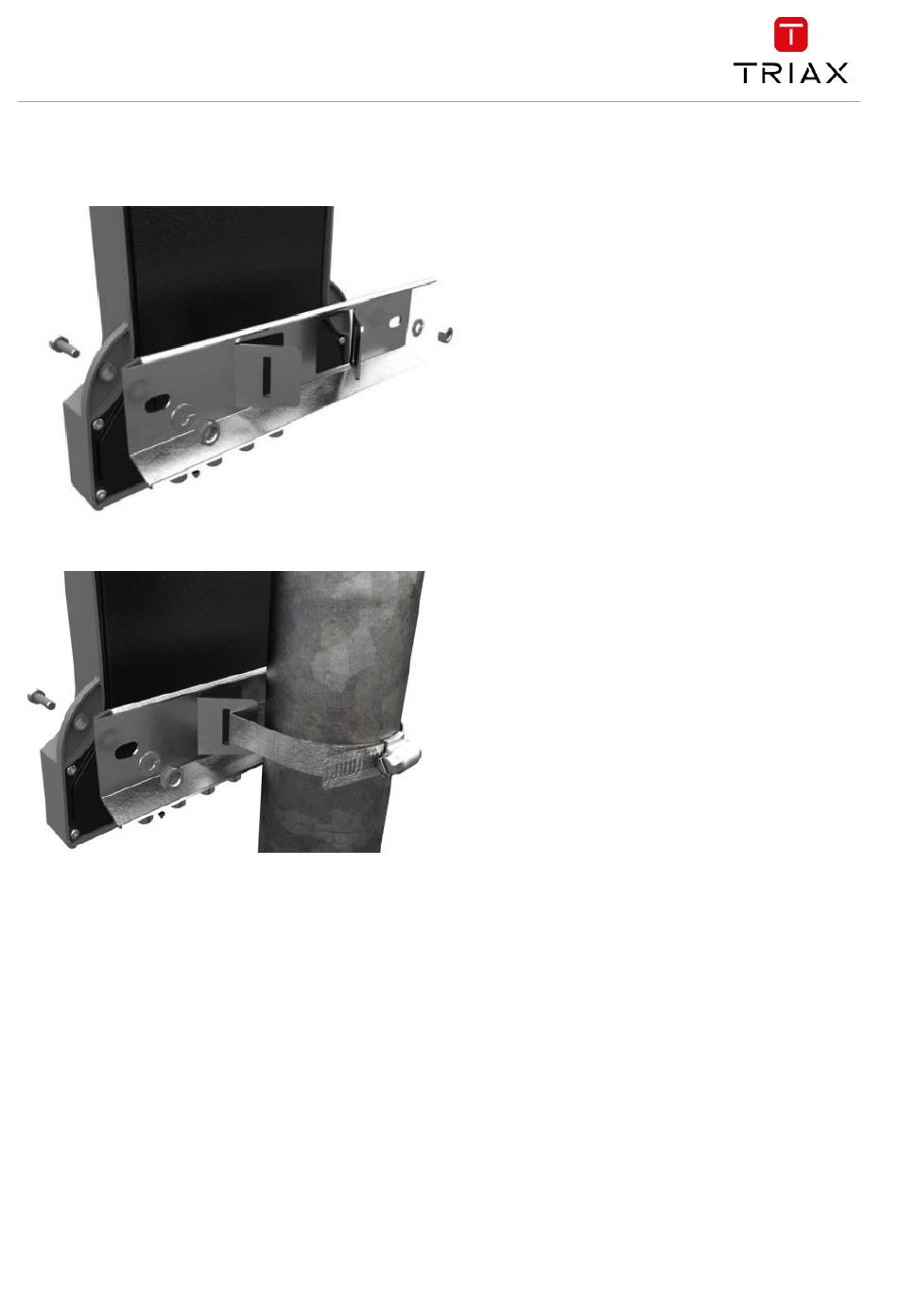

Bracket mount onto pole or antenna mast
STEP 1
Using the supplied fixings attach the pole mount
bracket to the back of OTX transmitter device.
Ensuring the washer is fitted and the nut
tightened. This should be fitted before mounting
on a mast.
STEP 2
Once bracket is secured to the OTX open jubilee
clip through slots as shown left.
Attach around mast and tighten using a flat bladed
screwdriver.
