Pairing the transmitter with the receiver
The transmitter is usually paired with the receiver at the factory. If you still need to
pair again or if you want to use an additional transmitter, we will explain the pairing
process to you below.

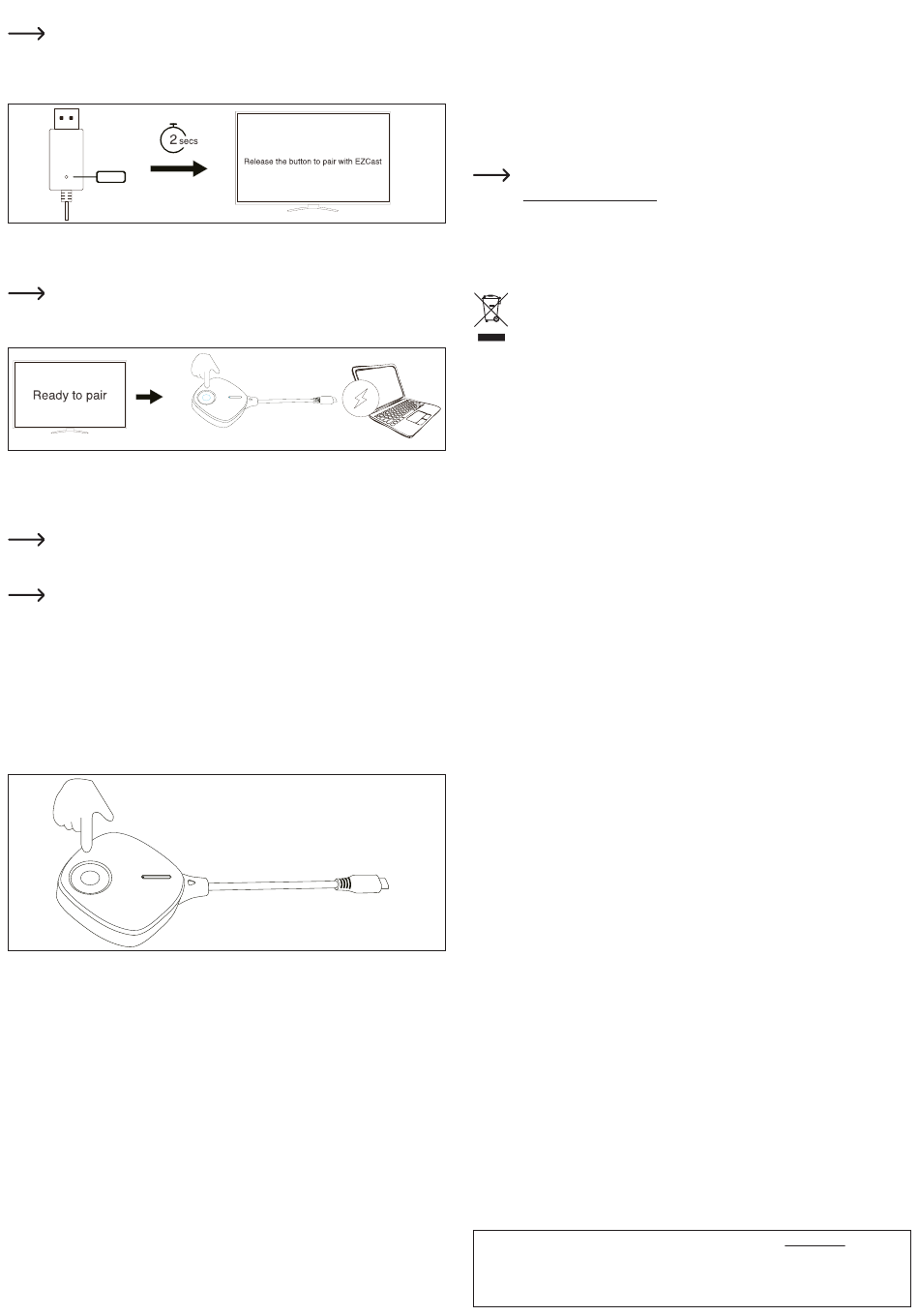

a) Putting the receiver into pairing mode
• First press and hold the recessed button on the receiver (F) with a pointed object (e.g. paper
clip) for about 2 seconds.
• The screen will indicate when the receiver is in pairing mode. Then release the button.
The transmitter can be paired and used with any EZCast/Renkcast receiver sup-
porting wireless display.
b) Pairing the transmitter with the receiver
• When the receiver is in pairing mode, press and hold the button on the transmitter (C) for 2
seconds.
• When the status LED (B) flashes rapidly, the pairing process has started.
• When the status LED (B) lights up solid, the pairing process is complete.
The top right of the screen displays the current connections between your device
(being mirrored from), the receiver, and the Internet.
After pairing, the "X" disappears upon first connection and a blue icon is displayed.
Up to 8 transmitters can be paired with the receiver at the same time. However, only
one can be used for mirroring at a time.
Simple mirroring with transmitter and receiver
Requirements
• The transmitter is connected to a device that supports DisplayPort via USB Type-C
• The receiver is connected, for example, to a TV.
• Transmitter and receiver are connected to each other. The status LED (B) on the transmitter
lights up continuously.
Mirror screen content
• To stop and restart mirroring, simply press the button (C) on the transmitter.
Resetting to factory default
The device can only be reset to factory defaults if it is connected and in operation. Proceed
as follows:
a) Transmitter
• Press and hold the button (C) on the transmitter for 10 seconds. During this time, the status
LED (B) will go off intermittently or flash.
• Once the 10 seconds are reached and the status LED (B) is off, release the button.
• The product will restart and the factory settings will be restored. This process takes a few
seconds. When the status LED (B) flashes slowly, the process is complete.
b) Receiver
• Press and hold the recessed button (F) on the receiver with a pointed object for about 10
seconds.
• When "Reset to Default" is displayed, release the button.
• The product will restart and the factory settings will be restored. This process takes a few
seconds. When your TV displays the blue screen again, the process is complete.
Care and cleaning
• Disconnect the product from the power supply before cleaning.
• Use a dry, lint-free cloth to clean the product.
• Never use aggressive detergents, rubbing alcohol or other chemical solutions, as these may
damage the casing or cause the product to malfunction.
Declaration of Conformity (DOC)
Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau, hereby declares that this
product conforms to Directive 2014/53/EU.
Click on the following link to read the full text of the EU Declaration of Conformity:
www.conrad.com/downloads
Select a language from the menu and enter the order number of the product in
the search field. You can then download the EU Declaration of Conformity in PDF
format.
Disposal
Electronic devices are recyclable waste and must not be placed in household waste.
At the end of its service life, dispose of the product in accordance with applicable
regulatory guidelines.
Technical data
a) Transmitter
Operating voltage ......................... 5 V/DC
Power consumption . ..................... max 1 A
Connections . ................................. 1x USB Type-C
Wi-Fi ............................................. IEEE802.11b/g/n/ac; 2.4 GHz; 5 GHz, 1T1R
Frequency range/
transmission power . ...................... 2.412 - 2.485 GHz, ≤ 17 dBm;
Resolution . .................................... 1920 x 1080 pixels; max 60 FPS
Functions . ..................................... Screen mirroring/expansion
Memory . ........................................ 128 MB RAM; 128 MB flash memory
Supported operating systems . ...... Windows
Dimensions (W x H x L) . ............... approx. 69 x 20 x 210 mm (incl. cable)
Weight .......................................... approx. 55 g
.
TM
Operating conditions . .................... 0 to +35 °C, 10 to 90 % RH (not condensing)
Storage conditions . ....................... -20 to +70 °C, 5 to 90 % RH (not condensing)
b) Receiver
Operating voltage ......................... 5 V/DC
Power consumption . ..................... max 1 A
Connections . ................................. 1x USB Type-A 2.0 (power supply);
Wi-Fi ............................................. IEEE802.11b/g/n/ac; 2.4 GHz; 5 GHz, 1T1R
Frequency range/
transmission power . ...................... 2.412 - 2.485 GHz, ≤ 17 dBm;
Resolution . .................................... 1920 x 1080 pixels; max 60 FPS
Supported transmitters ................. max 8
Functions . ..................................... EZCast, EZAir, DLNA, Miracast, Google Home,
Memory . ........................................ 128 MB RAM; 16 MB flash memory
Supported operating systems . ...... Windows
Dimensions (W x H x L) . ............... approx. 22 x 9 x 700 mm
Weight .......................................... approx 21 g
Operating conditions . .................... 0 to +40 °C, 10 to 90 % RH (not condensing)
Storage conditions . ....................... -20 to +70 °C, 5 to 90 % RH (not condensing)
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in
electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited.
This publication represent the technical status at the time of printing.
Copyright 2021 by Conrad Electronic SE.
TM
5.150 - 5.250 GHz, 5.725 - 5.825 GHz, ≤ 15 dBm
7, Windows 8.1, Windows
® ®
Android 4.4 or higher; Apple iOS 9.3.5 or higher;
TM
MacOS 10.10 or higher; ChromeOS
1x HDMI (HDMI 1.4a, HDCP 2.0)
TM
5.150 - 5.250 GHz, 5.725 - 5.825 GHz, ≤ 15 dBm
Voice control
7, Windows 8.1, Windows
® ®
Android 4.4 or higher; Apple iOS 9.3.5 or higher;
TM
MacOS 10.10 or higher; ChromeOS
