isposaL of the product
The crossed-out wheelie bin symbol indicates that the product
must be collected separately from other waste at the end of its
useful life. The user must therefore take the appliance at the end
of its useful life to a special centre for electrical and electronic
waste collection or hand it back to the retailer upon purchase of
a new product of an equivalent type, on a one-for-one basis.
Proper segregated waste collection of old appliances for subse-
quent recycling, treatment and environmentally compatible
disposal helps avoid possible negative effects on the environment
and health and favours recycling of the materials the product is
made of.
w
iring diagram

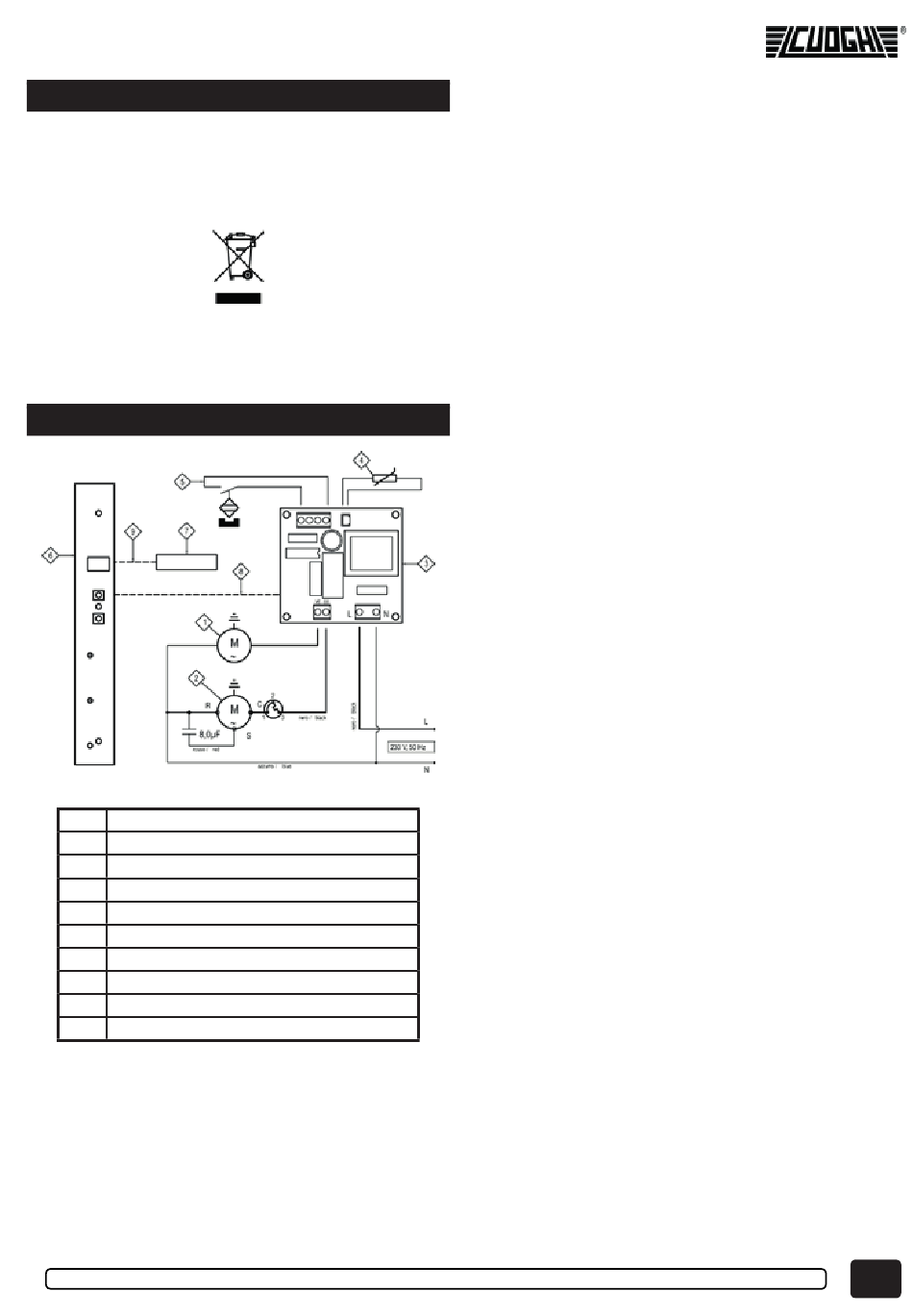

Pic.8 – Wiring diagram
Ref. Description
1
2
3
4
5
6
7
8
9
Tab.D – Wiring diagrams references
Fan
Compressor
Electronic power device
Temperature probe
Level switch
Electronic control panel
Electronic humidistat
10 poles cable with plugs
4 poles cable with plug
