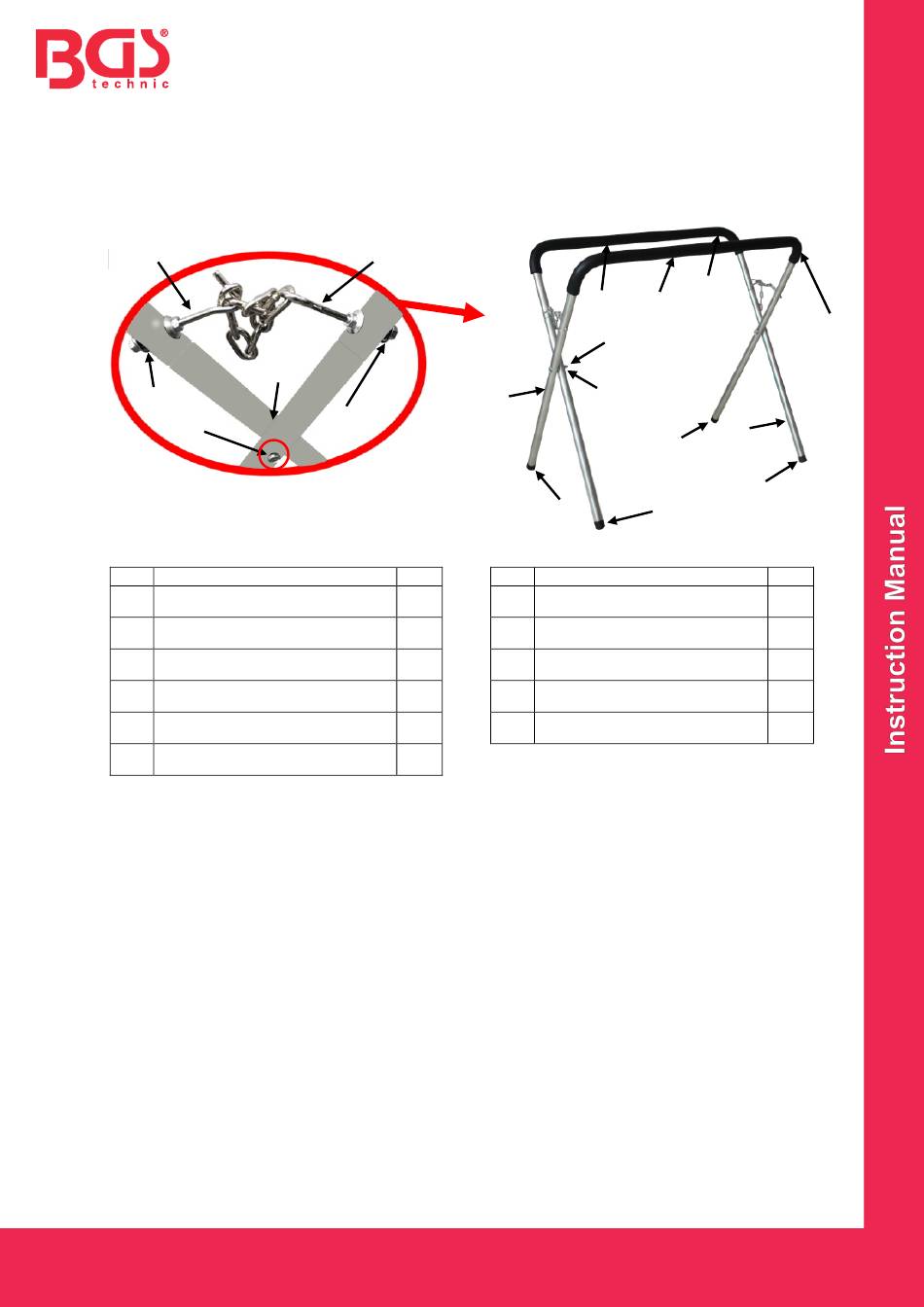

Parts
No.
1
Foam Pad
2
Bent Tube
3
Washer Ø8 x 30mm
4
Hook Bolt
5
Nut M8
6
Bolt M8 x 65
Assembling
1. Slide the closed cell padding tube onto the two bent tube. Slip a leg into the bent tube
end. Line up the pierced holes and insert the eye bolt with chain attached securing it with
a M8 nut.
2. Assemble the second bent tube the same way using the open eye bolts to secure it.
3. Complete the assembly ba placing one assembly on the other by slipping one leg inside
the other to line up the 8.5 mm holes. Connect the two with the M8x65 bolt, placing
washer outside between and inside the tubing. Use M8 lock nuts to secure the
assembly.
Technical data
•
Steel with galvanized
•
Foldable size: 1040 x 1090mm
•
Range of height: 530-1090mm
•
Leg Tube Length: 84.5cm
•
Tubing size: 32x1.2mm (DIA. x T )
•
1/2" PU Foam Will Cover Whole Arm
•
Max. Load Capcaity: 500Lbs (225Kg)
BGS technic KG
Bandwirkerstr. 3
D-42929 Wermelskirchen
Windshield Holder
3
10
6
Description
Tel.: 02196 720480
Fax.: 02196 7204820
mail@bgs-technic.de
9
7
Qty
No.
2
7
Leg Tube
2
8
Rubber Cover
2
9
Eye Bolt with Chain
2
10
Hex Nut M8
2
11
Washer Ø8 x 16mm
2
BGS 8380
2
1
1
5
11
7
8
8
8
Description
www.bgstechnic.com
© BGS technic KG, Copying and further use not allowed
2
8
Qty
4
4
2
4
8
