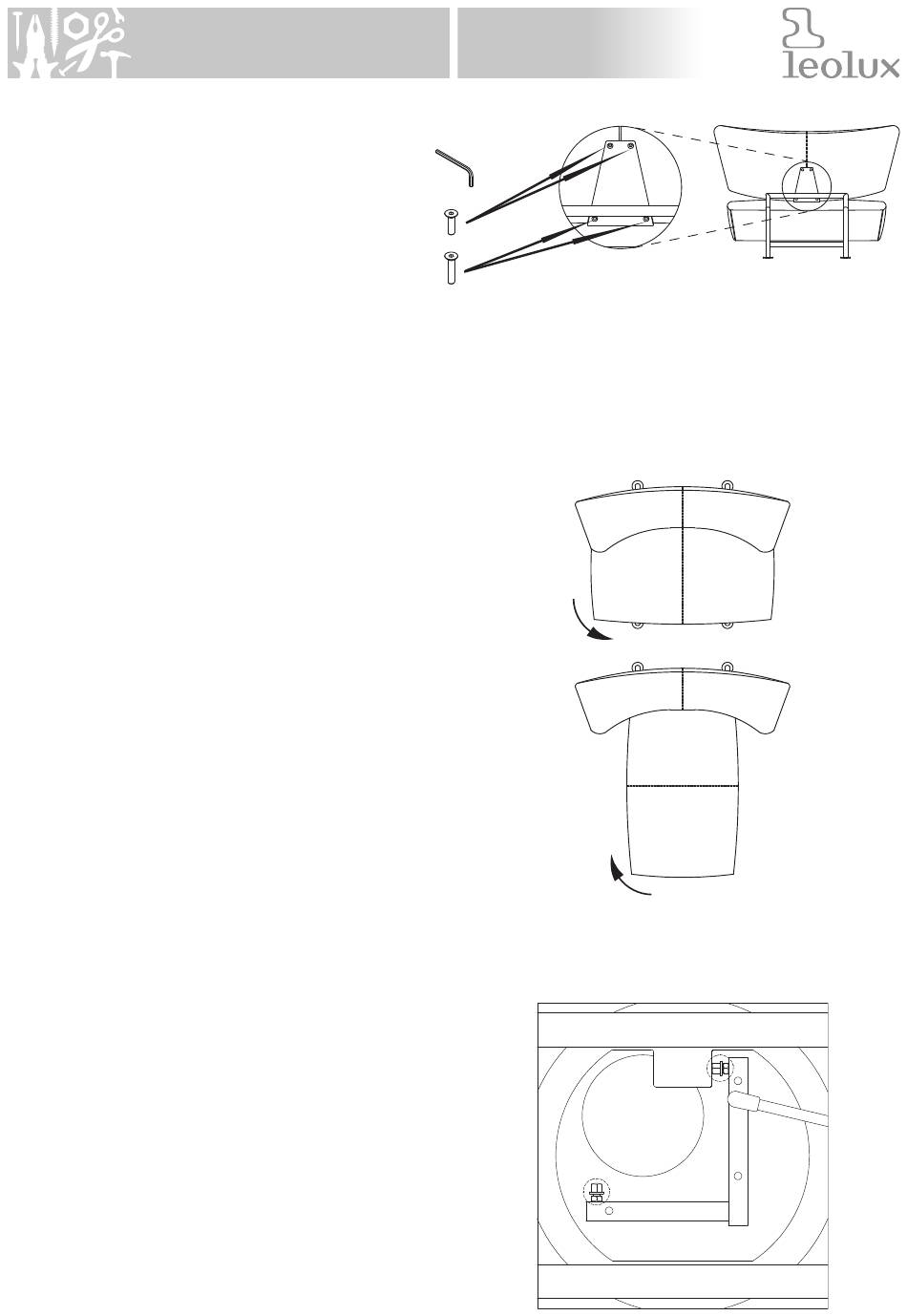

1. Mounting from the back
Requirements (included)
- 1 Allenkey no. 5
- 2 Bolts M8x30 VK
- 2 Bolts M8x40 VK
Attention:
• Because of the weight, the back should be
assembled by two people.
• First partially position the bolts, subsequently
tighten simultaneously.
• Should the bolts become loose with use, tighten
them again with the Allen key supplied.
2. Using the seat adjustment
The seat is adjustable, so that the Akka can change
from a love-seat into a chaise-longue.
The built-in gas spring rotates the seat into one of
the two outermost positions, where the seat is fixed
without the need for a separate lock
mechanism. The gas spring has a light setting so that
the seat can be altered with a minimum of effort. This
means that the seat (in the left forward position) may
move a little when in use.
Attention:
• Ensure that no part of the body can become
trapped when adjusting the seat.
• Do not put pressure on the seat when adjusting.
• Concerning safety/stability, do not sit at the foot
end of the seat when the Akka is in the
chaise-longue position.
3. Seat alignment
During transport or as a result of intensive use it is
possible that the seat no longer remains in exact
alignment with the lower frame.
Re-alignment:
1. Open the cover beneath the seat. This holds the
adjustment mechanism.
Bolt 1 regulates the chaise-longue position, and
bolt 2 the love-seat position.
2. Loosen the lock nut with spanner no. 10 (not
supplied).
3. Adjust the bolt to the required length and
retighten the lock nut.
Akka
30
40
90˚
1
90˚
2
