Seite 1

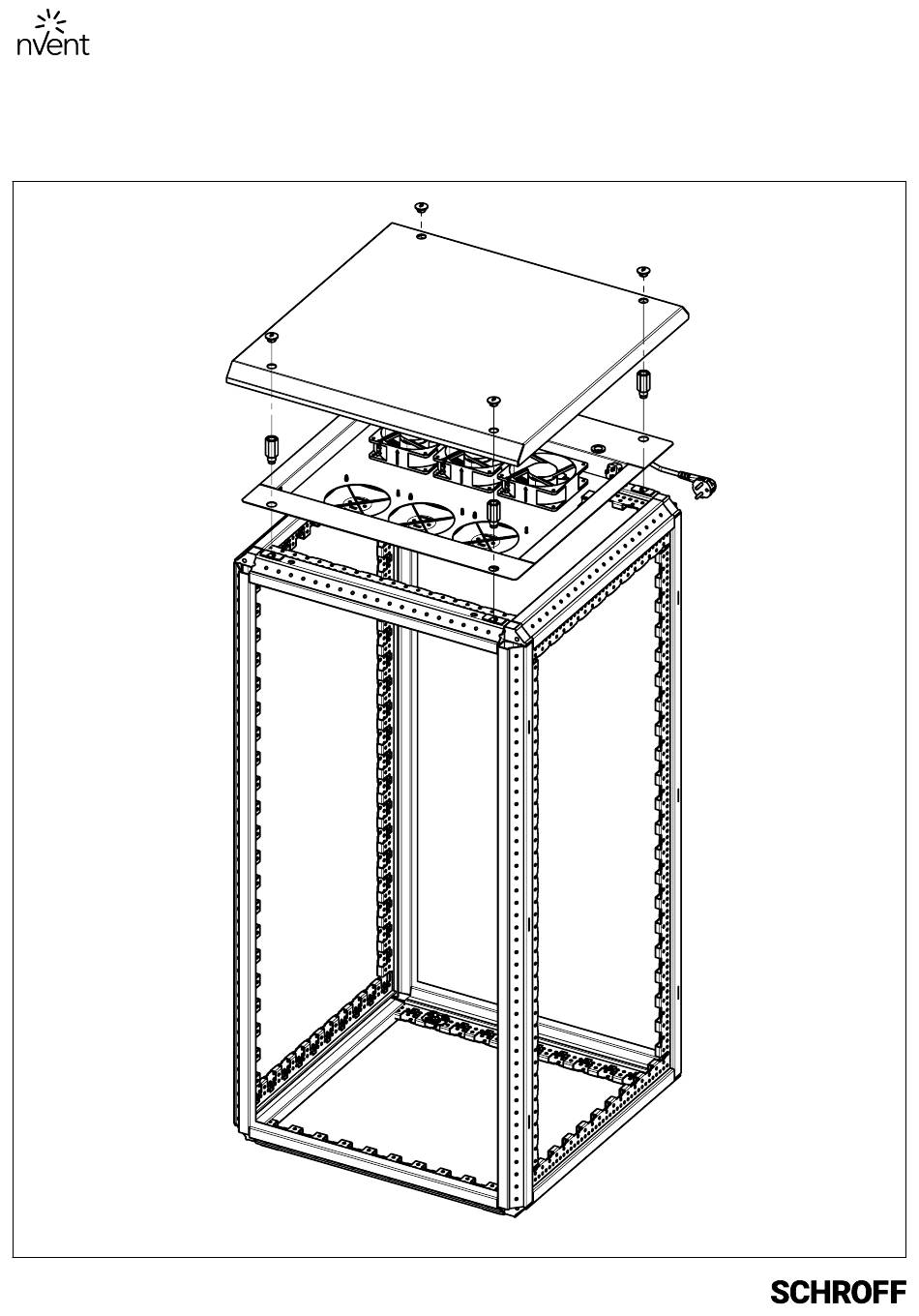

Benutzeranleitung User Manual Instructions utilisateur VARISTAR VARISTAR VARISTAR Lüfterdach IP22 Fan top cover IP22 Toit de ventilation IP22 nVent.com 60130-203_BET Rev.C 1/10...
Seite 3
Vor dem aufkleben, die Fläche mit Alkohol bereinigen. Clean the surface with alcohol before bonding. Nettoyer la surface à l'alcool avant collage. nVent.com 60130-203_BET Rev.C 3/10...
Seite 6
Schaltplan / Verdrahtungplan ( ohne thermostat ) Circuit diagram / Wiring diagram ( without thermostat ) Schéma de principe / Plan de câblage ( sans thermostat ) Schaltplan / Circuit diagram / Schéma de principe Frame Verdrahtungsplan / Wiring diagram / Plan de câblage Frame YE/GR FAN 2...
Seite 7
Schaltplan / Verdrahtungplan ( mit thermostat für M1-M6 ) Circuit diagram / Wiring diagram ( with thermostat for M1-M6 ) Schéma de principe / Plan de câblage ( avec thermostat pour M1-M6) Schaltplan / Circuit diagram / Schéma de principe T°...
Allgemeine Sicherheitshinweise - Bei bestimmungswidrigem Einsatz und/oder unsachgemässer Verwendung kann vom Lüfter Gefahr ausgehen. Der Lüfter darf nur in technisch einwandfreiem Zustand und mit unbeschädigter Elektrik verwendet werden. Bei defekten Geräten mit AC-Anschluss besteht LEBENSGEFAHR! General safety instructions - In case of other then as intended and/or inappropriate use, dangerous circumstances may result.
Seite 9
Die Inbetriebnahme dieses Lüfterblechs / Ventilators ist so lange untersagt, bis sichergestellt ist, dass das Lüfterblech / Ventilator nach dem Einbau den Bestimmungen der Maschinenrichtlinie 89/392/EWG entspricht. Before putting the fan tray / fan into service, ensure that following installation the fan tray / fan is keeping with the regulations of the machine guideline 89/392/EEC.
The unit is exclusively designed for heat dissipation as installed in 19'' cabinets only. This SCHROFF fan is designed and constructed exclusively for transport of air (up to 70 C air temperature). Transport of explosive / flammable air must be avoided by all means.
