3. Specifications
Input Voltage
Output Voltage
Output Power
Display Accuracy
Protection
dimension (WxHxD)
weight

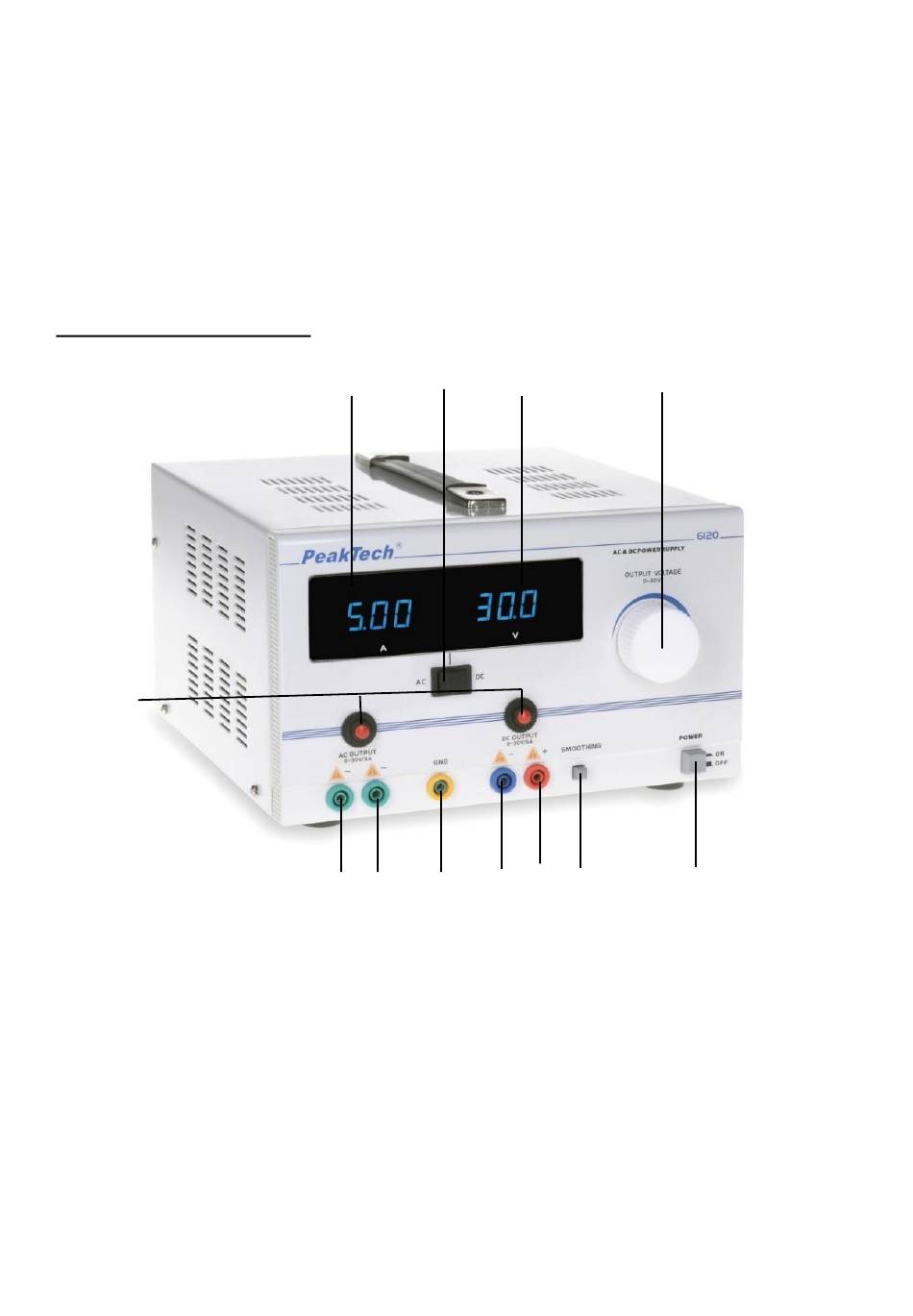

3.1. Controls and description
8.
1.)
Power switch: press then the power is ON/OFF
2.)
Smoothing witch: press then the power supply output the smoothed DC
3.)
Output terminal (+): connecting the terminal of DC positive load
4.)
Output terminal (-): connecting the terminal of DC negative load
5.)
CASE ground: connecting the case to ground
6.)
Output terminal: connecting the terminal of AC load
7.)
Output terminal: connecting the terminal of AC load
8.)
thermal overload protection of the outputs
9.)
AC or DC switch: Switching the AC or DC display
10.)
Amp display: indicating output current by LED(both DC and AC
11.)
Volt display: indicating output voltage by LED (both DC and AC)
12.)
Voltage adjustment: adjusting the output voltage (both DC and AC)
220 - 240V AC +/-10%
0 – 30V / 5A AC/DC
150W (VA)
Voltmeter: +/-(2,5% + 2 dgt.)
Amperemeter: +/- 2,5% + 2 dgt.)
over current
260 x 160 x 260mm
9,5kg
9.
10
.
7.
6.
5.
6
11
12
.
.
4.
3.
2.
1.
