5. INSTALLATION AND CONNECTIONS

Switch off the device prior to connecting any units or to changing any existing connections.

Installation

Install the unit on a plane surface or in your rack. When choosing the installation spot make sure that there is
enough space around the unit for ventilation or that heated air from the rack can be passed on to improve
heat radiation. Steady overheating will damage the unit.

DMX512 Connection

Connect your DMX-controlled units to the XLR jacks DMX OUT. For DMX input, connect the DMX control
units to the XLR jacks DMX IN. Use DMX cables with 3-pin XLR connectors. If you wish to connect units with
other connectors, you need to use adapter cables. The XLR jacks are equipped with a lock which is released
by pressing the PUSH lever down and pulling the microphone plug out at the same time.

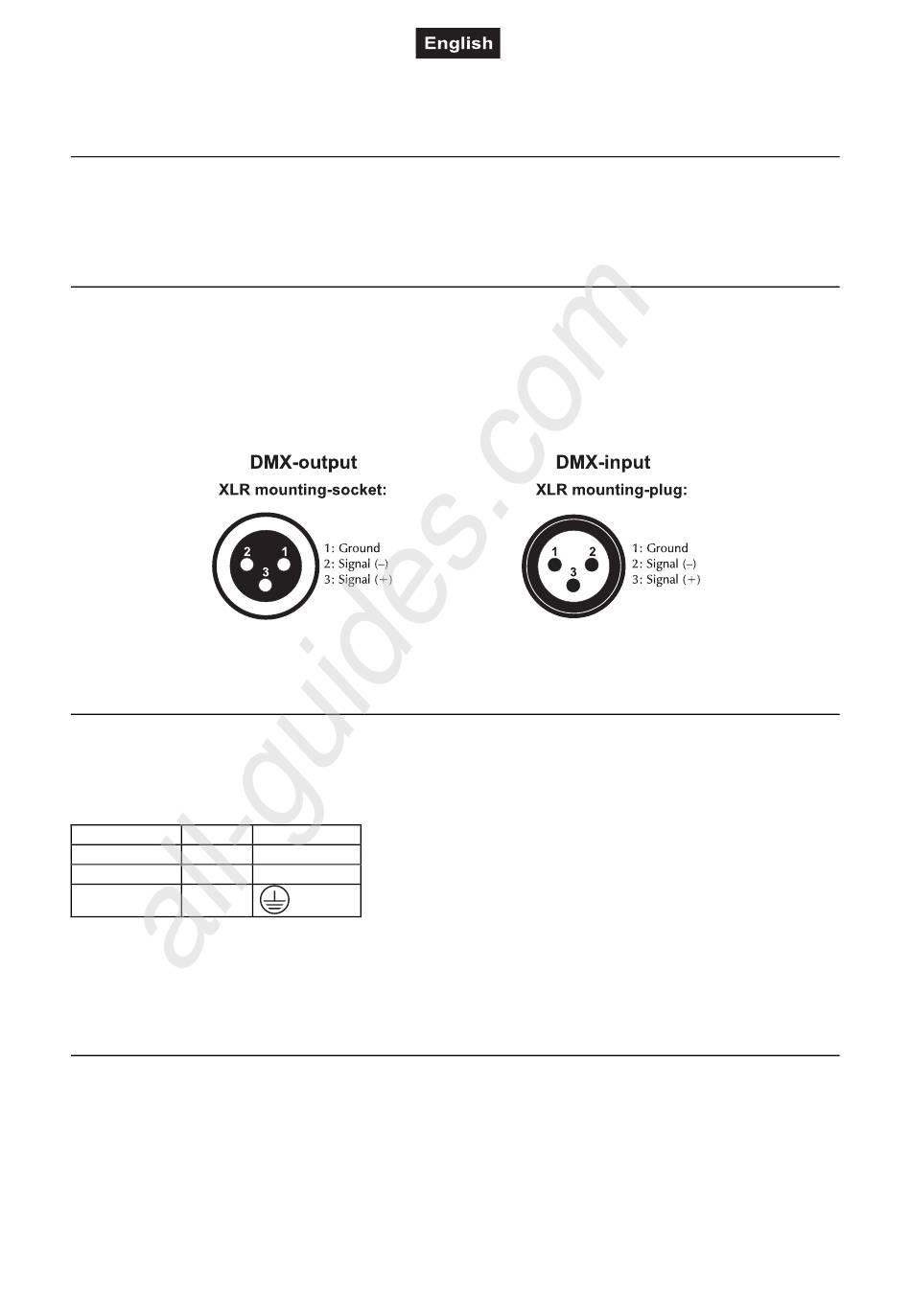

Occupation of the XLR connection:

Connection to the Mains

Connect the device to the mains with the power plug.
The occupation of the connection cables is as follows:
Cable Pin
Brown Live
Blue Neutral
Yellow/Green Earth
The earth has to be connected! If the device will be directly connected with the local power supply network, a
disconnection switch with a minimum opening of 3 mm at every pole has to be included in the permanent electrical
installation. The device must only be connected with an electric installation carried out in compliance with the IEC
standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum fault current
of 30 mA.

Network Connection

Connect the device via its RJ45 port to a computer network. Either via a switch or hub or directly to a PC or
notebook. Use a standard patch cable type CAT-5e or better.
The device can be connected to and disconnected from the computer during operation and without a reboot
(hot swapping and plug & play). Multiple units can be used at the same time.
All manuals and user guides at all-guides.com
International
L
N
16/20 00081727.DOCX, Version 1.0
