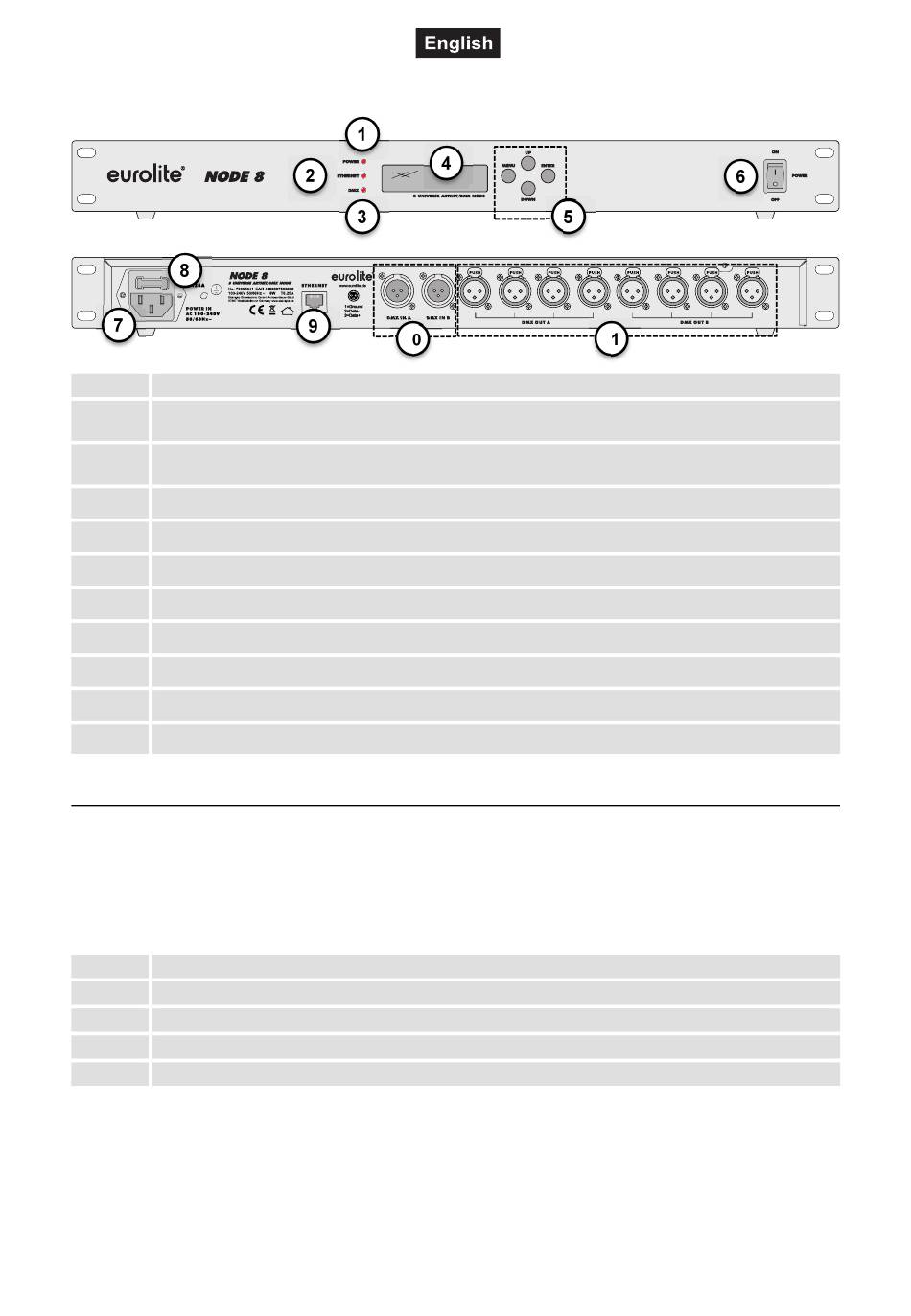

4. OPERATING ELEMENTS AND CONNECTIONS

8
7
1
Power indicator
2
Ethernet status indicator
Rapidly flashes to indicate communication over Ethernet; data is sent or received.
3
DMX status indicator
Rapidly flashes to indicate reception of DMX data at the DMX inputs.
4
Display
5
Operating buttons
6
Power switch
7
Power input
8
Fuse
9
Ethernet port
10
DMX512 inputs
11
DMX512 outputs

Quick Start

For Art-Net operation, the converter is connected via Ethernet to the network card of the computer. Data can
be set to the device over Ethernet and then internally distributed to the XLR connectors for DMX output. For
DMX input, the converter will send the data via Art-Net Remote to the network.
The steps below will be described in more detail in the following sections.
1
Connect the DMX units to the XLR jack of the converter.
2
Connect the converter to the mains.
3
Connect the converter via Ethernet to a computer.
4
Set the computer's network settings to the IP address range 2.x.x.x.
5
Switch on the converter and configure it.
All manuals and user guides at all-guides.com
1
4
2
3
9
10
15/20
5
11
00081727.DOCX, Version 1.0
